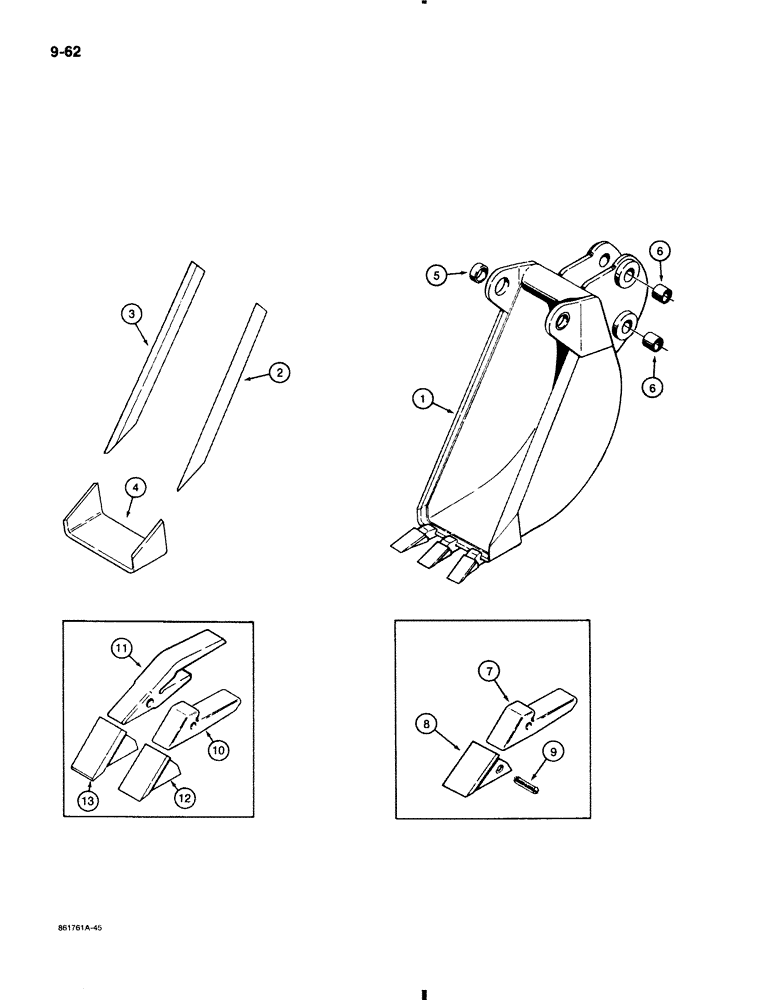

Запчасти Case 580SK (9-052) - BACKHOE BUCKET, 12 INCH, 305 MM, WIDE, 12 INCH, 305 MM, WIDE (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY, 12 inch, 305 mm, machinery item, order from Machinery Price List, 12 inch, 305 mm, wide trenching bucket and teeth, Includes: Ref. 2 through 9

1шт.

2

D29424

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

3

D29423

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

4

D37464

EDGE, CUTTING

EDGE cutting, bucket, center, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

bucket, at dipper, 12 inch, 305 mm, wide trenching bucket and teeth

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket links

4шт.

D41659

TOOTH

ASSEMBLY trenching bucket, pinned-on, 12 inch, 305 mm, wide trenching bucket and teeth, Includes: Ref. 7, 8 and 9

3шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

8

D39093

TOOTH

POINT tooth, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point, 12 inch, 305 mm, wide trenching bucket and teeth

1шт.

10

D26368

SUPPORT

SHANK tooth, original equipment, if used, crimped-on bucket teeth

1шт.

11

D58499

SUPPORT

SHANK tooth, service option, if used, crimped-on bucket teeth

1шт.

12

D27748

TOOTH

POINT tooth, original equipment, if used, crimped-on bucket teeth

1шт.

13

D36720

TOOTH

POINT tooth, heavy duty service option, if used, crimped-on bucket teeth

1шт.
