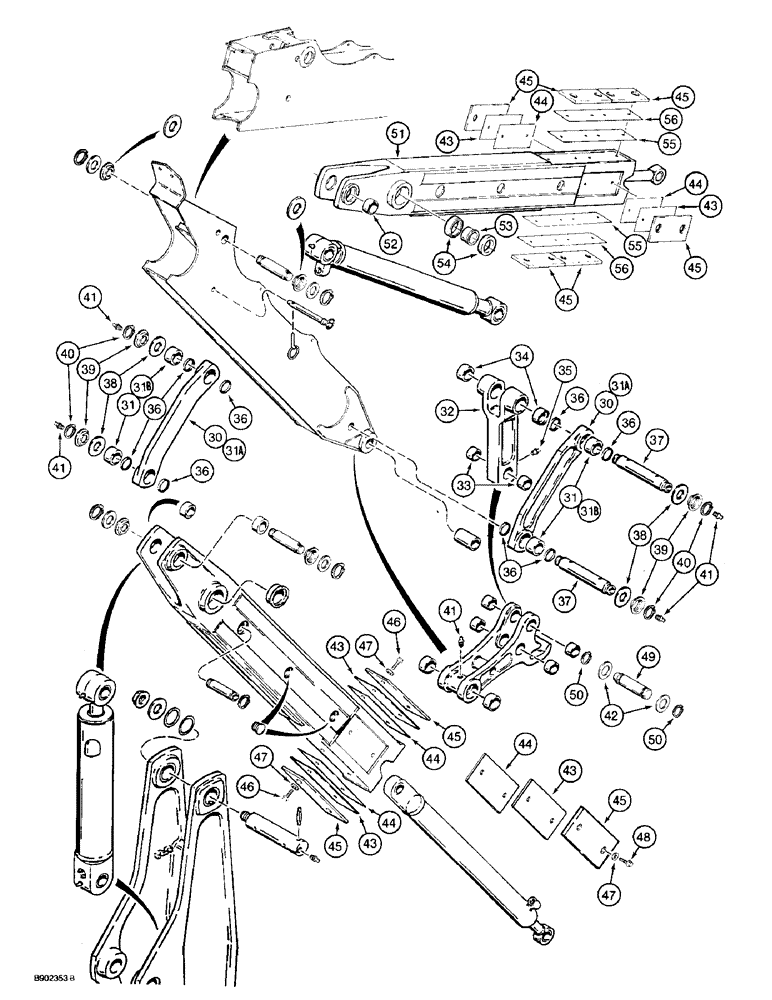

Запчасти Case 580SK (9-050) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

30

D141468

PITMAN

LINK, 25 mm wide bushing, bucket guide, with groove for grease seals, Ref. 36, prior to P.I.N. JJG0163952, no longer available, order D150608, Ref. 31A, Includes: Ref. 31

2шт.

31

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 mm x 60 mm x 25 mm

2шт.

31a

D150608

PITMAN

LINK, 33 mm wide bushing, used without grease seals, bucket guide, P.I.N. JJG0163952 and after, Includes: Ref. 31B

2шт.

31b

D150122

BUSHING

50 x 60 x 33 mm

2шт.

32

D150080

PITMAN

LINK bucket dump, with two bushings at forked end, replaces D140007, Includes: Ref. 33 and 34

1шт.

33

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8 inch, 28 mm, long

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8 inch, 54 mm, long

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

36

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease, if used

8шт.

37

D141142

PIN,50mm OD x 306mm L

306 mm long, Bucket cylinder rod end to links and, Serial Range: links-dipper

2шт.

38

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16 x 3 x 1/8 inch

4шт.

39

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16 x 3 x 1/8

4шт.

40

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

5шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

43

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM, 1.6 mm thick, wear plate, D149018 inner dipper, Ref. 15 on Figure 9-048

1шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

44

D140885

BLOCK

SHIM, 0.8 mm thick, wear plate, D149018 inner dipper, Ref. 15 on Figure 9-048

1шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

45

D141998

LARGE PLATE

PLATE wear, plastic, outer

4-6шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

46

409-7612

BOLT,3/8"-16 x 1.09" OAL

hex flange, self-locking, 3/8 NC x 3/4 inch, Replaces 121-228

4-8шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

47

D143167

WASHER

special

8-12шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

48

D143961

FLANGE BOLT,Hex, 3/8"-16 x 1/2", Serr

BOLT hex flange, self-locking, 3/8 NC x 1/2 inch

4шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

49

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler, if used

1шт.

50

103-16175

SNAP RING,#175, Ext

Ring, Snap, , If used #175, Ext

2шт.

D140889

HYDRAULIC VALVE

DIPPER ASSEMBLY extension, inner, with grease seals at dipper pivot, no longer available, order D149018 dipper on Figure 9-048, Includes: Ref. 51 through 54

1шт.

51

NSS

NOT SOLD SEPARAT

DIPPER inner

1шт.

52

D141389

BUSHING

50 x 34 mm long, dipper cylinder rod end pivot

2шт.

53

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 x 36 mm long, to dipper pivot

2шт.

54

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease, 70 mm, dipper pivot

4шт.

55

D140873

BLOCK

SHIM, .8 mm thick, wear plate, D140889 inner dipper, Ref. 51

1шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

56

D140874

BLOCK

SHIM, 1.6 mm thick, wear plate, D140889 inner dipper, Ref. 51

1шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

D103366

KEY

KIT extendahoe inner dipper assembly, Includes: Ref. 11, 12, 14 and P/N 244536A1 on Figure 9-048 and Ref. 43 - 48, 55 and 56 on this figure and an instruction sheet

1шт.
