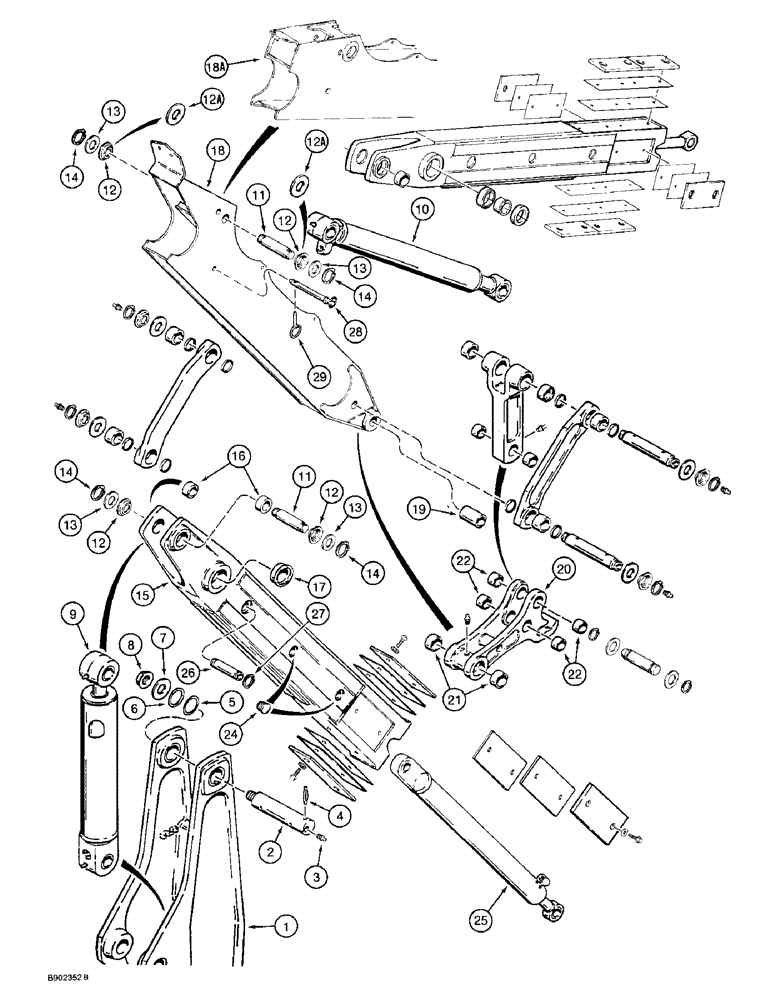

Запчасти Case 580SK (9-048) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM backhoe, for correct assembly and components, see Figure 9-038

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

4

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, 1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

8

D120610

NUT

hex, 1-3/4 NF, special

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY dipper, for correct assembly and components, see Figure 8-132 - 8-135C

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket, for correct assembly and components, see Figure 8-136 - 8-139C

1шт.

11

D141666

PIN,50mm OD x 199mm L

dipper and bucket, Serial Range: cylinder-dippers

2шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

12

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1/13/16 x 3 x 1/8 inch, no longer used, order 495-81227 washer, Ref. 12A

4шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

12a

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

13

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

14

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin (Replaces D25280) #175, Ext

4шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

244536A1

DIPPER

ASSEMBLY extension, inner, without grease seals at dipper pivot, Replaces: P/N D140889, Includes four P/N 132716A1 pads, one P/N 132842A1 shim, one P/N 132844A1 shim, one P/N 183443A1 pin, two P/N 183509A1 pin, Includes: Ref. 15, 16 and 17

1шт.

Part of extendahoe inner dipper assembly kit P/N D103366.

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER inner

1шт.

16

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 mm x 34 mm long, dipper cylinder rod end pivot

2шт.

17

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 mm x 36 mm long, to dipper pivot

2шт.

18

D147989

BOOM

HOUSING dipper, outer, 8 mm thick side plates, without inner cylinder mounting reinforcement ears at bucket end, if used

1шт.

The two washers welded to the inside of Ref. 18 and 18A at the coupler end are 495-81230.

1шт.

18a

102649A1

BOOM

HOUSING dipper, outer, if used

1шт.

The two washers welded to the inside of Ref. 18 and 18A at the coupler end are 495-81230.

1шт.

19

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

45 mm ID x 94 mm long, bucket coupler pivot

2шт.

134437A1

COUPLING

COUPLER ASSEMBLY bucket, replaces D139084, Includes: Ref. 21 and 22

1шт.

20

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

1-3/16 inch, 30 mm long, special, at dipper

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8 inch, 28 mm, long, at bucket link

4шт.

24

D133865

PLUG

plastic

4шт.

25

1340969C1

CYLINDER ASSY.

CYLINDER ASSEMBLY dipper extension, parts list Figure 8-140

1шт.

26

D129892

PIN

dipper extension cylinder closed end

1шт.

27

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

PIN, LOCK, Used at dipper extension cylinder closed end when transporting only, Used with Ref. 29 lock pin

1шт.

29

A33509

PIN,11.18mm OD

lock

1шт.

D103366

KEY

KIT extendahoe inner dipper assembly, Includes: Ref. 11, 12, 14, P/N 244536A1 on this figure and Ref. 43 - 48, 55, 56 on Figure 9-050 and an instruction sheet

1шт.
