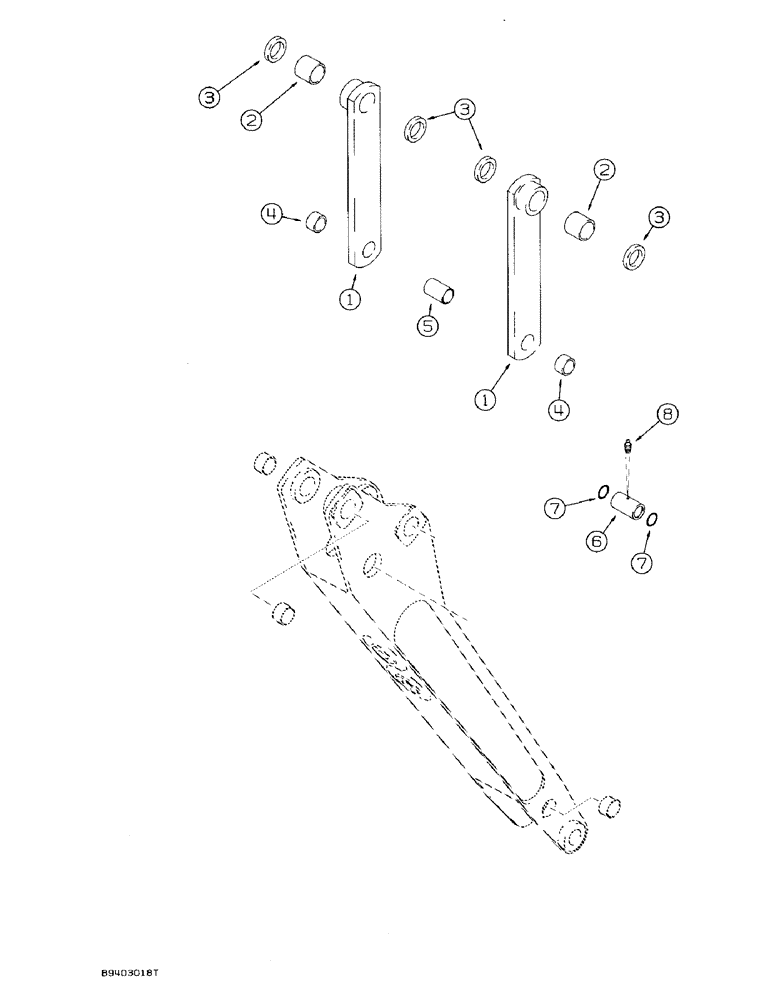

Запчасти Case 580SK (9-047C) - OPTIONAL BACKHOE BUCKET LINKS, FOR REAR ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

D141074

PITMAN

LINK ASSEMBLY bucket, used with Ref. 17 link on Figure 9-046, may replace Ref. 14 coupler, Figure 9-044, and Ref. 19 link, Figure 9-046, for some attachments, Includes: Ref. 1 through 4

2шт.

1

NSS

NOT SOLD SEPARAT

LINK attachment

1шт.

2

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8 inch, 54 mm, long, cylinder pivot

1шт.

3

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

2шт.

4

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1 inch, 25 mm, long, pivot

1шт.

5

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

2-25/32 inch, 71 mm, long, links

1шт.

6

D141076

SPACER,57.17mm ID x 76.2mm OD x 138mm L

5-7/16 inch, 138 mm, long, dipper end

1шт.

7

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

spacer

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.
