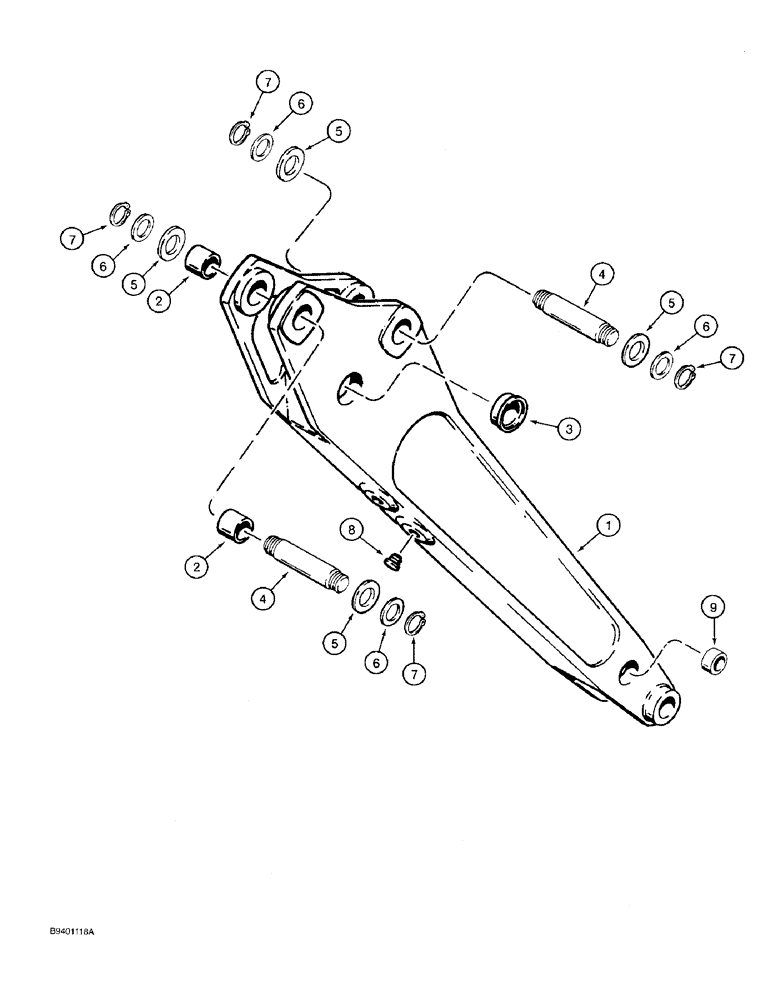

Запчасти Case 580SK (9-047A) - BACKHOE DIPPER ASSEMBLY KIT (09) - CHASSIS/ATTACHMENTS

102434A1

DIPPER

ASSEMBLY backhoe, service replacement, Includes: Ref. 1 through 9

1шт.

1

NSS

NOT SOLD SEPARAT

DIPPER backhoe

1шт.

2

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

50 x 60 x 54 mm long, dipper cylinder rod end pivot

2шт.

3

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 x 36 mm long, Serial Range: dipper-boom

2шт.

4

D138022

PIN,50mm OD x 240mm L

Bucket cylinder closed end and dipper cylinder rod end

2шт.

5

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

6

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

7

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

8

D120450

PLUG

plastic

6шт.

9

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm long, bucket link pivot

2шт.
