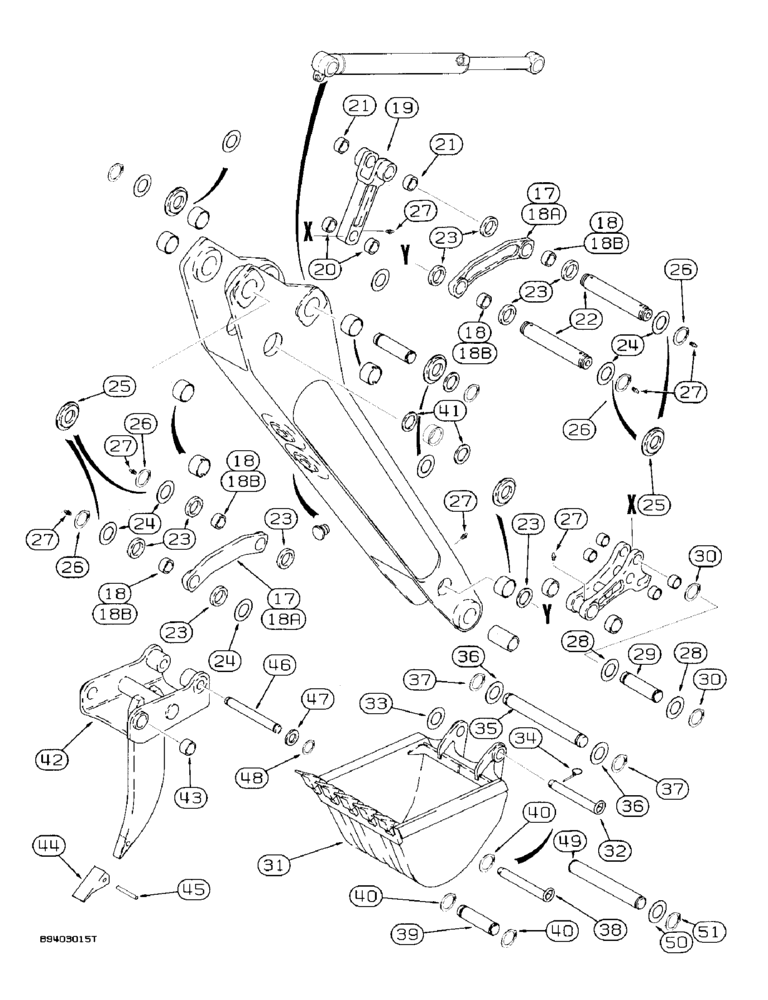

Запчасти Case 580SK (9-046) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

17

D141468

PITMAN

LINK, 25 mm wide bushing, bucket guide, with groove for grease seals, Ref. 23, prior to P.I.N. JJG0163952, no longer available, order D150608, Ref. 18A, Includes: Ref.18

2шт.

See Figure 9-047C for optional backhoe bucket links for rear attachments.

1шт.

18

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm

2шт.

18a

D150608

PITMAN

LINK, 33 mm wide bushing, used without grease seals, bucket guide, P.I.N. JJG0163952 and after, Includes: Ref.18B

2шт.

18b

D150122

BUSHING

50 x 60 x 33 mm

2шт.

19

D150080

PITMAN

LINK bucket dump, with two bushings at forked end, replaces D140007 link, Includes: Ref. 20 and 21

1шт.

See Figure 9-047C for optional backhoe bucket links for rear attachments.

1шт.

20

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm long

2шт.

21

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm long

2шт.

22

D141142

PIN,50mm OD x 306mm L

306 mm long

2шт.

23

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

8шт.

24

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16 x 3 x 1/8 inch

1шт.

25

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16 x 3 x 1/8 inch

4шт.

26

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

7шт.

28

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

29

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

30

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

31

REF

INSTRUCTION

BUCKET backhoe, see Figures 9-052 - 9-068 for bucket options

1шт.

32

D140655

PIN,44.29mm OD x 349mm L

dipper to bucket, all buckets except 12 inch, 305 mm, buckets, for models with 12 inch bucket see Ref. 38 pin; D140655 pin is no longer used, order D150619 pin, two 103-16175 rings, and 495-81226 washer, Ref. 49-51 below

1шт.

33

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

34

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock, if used

1шт.

35

D149298

PIN,44.38mm OD x 331mm L

dipper to bucket, 12 inch, 305 mm, Universal bucket only

1шт.

36

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

spacer, 38 mm x 64 mm x 2 mm

2шт.

37

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

38

D135690

PIN

dipper to bucket, 12 inch, 305 mm, buckets only, not used on the Universal 12 inch bucket, see Ref. 39

1шт.

39

D37614

PIN,38mm Od x 246mm L

bucket coupler

1шт.

40

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin, Used with either ref. 38 or 39 pin #175, Ext

1-2шт.

41

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

D140679

BRACKET

POINT ASSEMBLY frost, backhoe, Includes: Ref. 42 through 45

1шт.

42

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

43

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

front point pivot

2шт.

44

D83306

POINT

tooth

1шт.

45

D43417

PIN

tooth point

1шт.

46

D54218

PIN,38.1mm OD x 345.95mm L

link to frost point

1шт.

47

495-81292

WASHER,1.56" ID x 3.25" OD x 0.18" Thk

flat, 1-9/16 x 3-1/4 x 3/16 inch

2шт.

48

D25279

SNAP RING,M35, Int

RING snap, pin retaining

2шт.

49

D150619

PIN,44.29mm OD x 372.6mm L

- Dipper to bucket, all buckets except 12 inch, 305 mm buckets, for models with 12 inch bucket see Ref. 38 pin

1шт.

50

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

51

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Dipper to bucket pin #175, Ext

2шт.
