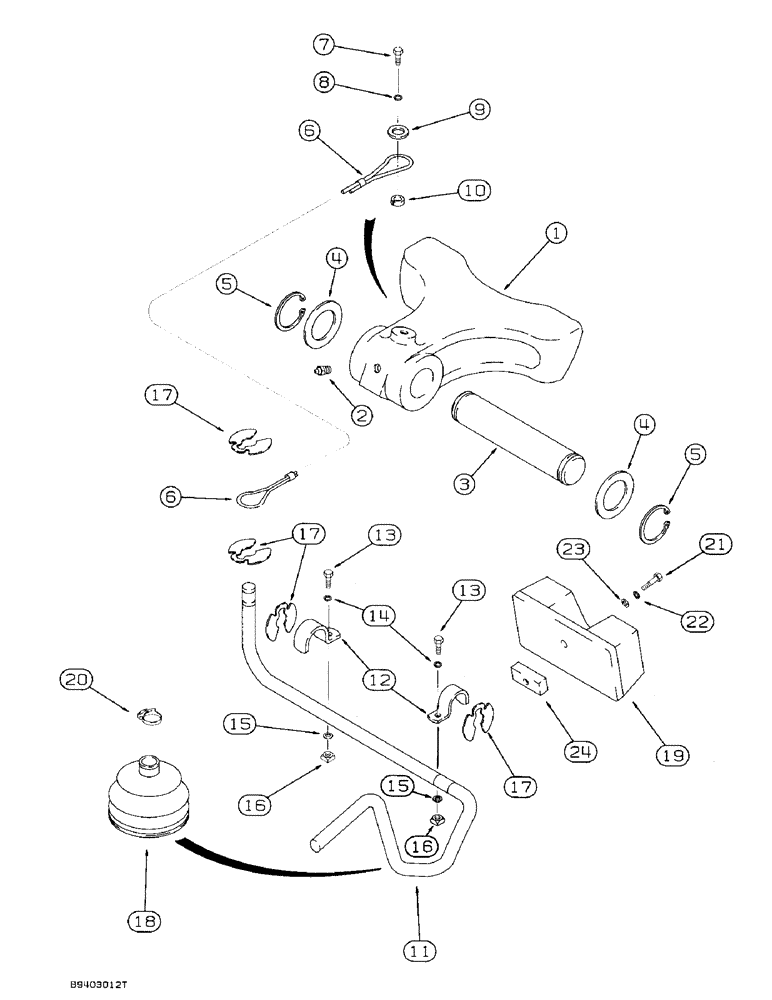

Запчасти Case 580SK (9-042) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH backhoe boom

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

3

D129227

PIN,40mm OD x 196mm L

- Boom latch to swing tower

1шт.

4

D144592

WASHER,41mm ID

flat, special

2шт.

5

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

6

D129641

CABLE

latch control

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

flat, 13/32 x 1-1/16 x 3/32 inch, hardened

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 mm x 16 mm x 6 mm

1шт.

11

D148136

THREADED ROD

ROD boom latch control

1шт.

12

D143723

SHIN

CLAMP rod

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

17

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINER clip ring, replaces D143591

4шт.

18

D86664

BOOT

rod

1шт.

19

102923A1

RUBBER BLOCK

BUMPER boom, used without shims, replaces D149779 bumper

1шт.

20

D143735

CLAMP,19.1mm - 22.2mm

boot

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

24

D143425

BAR

PLATE boom stop

1шт.
