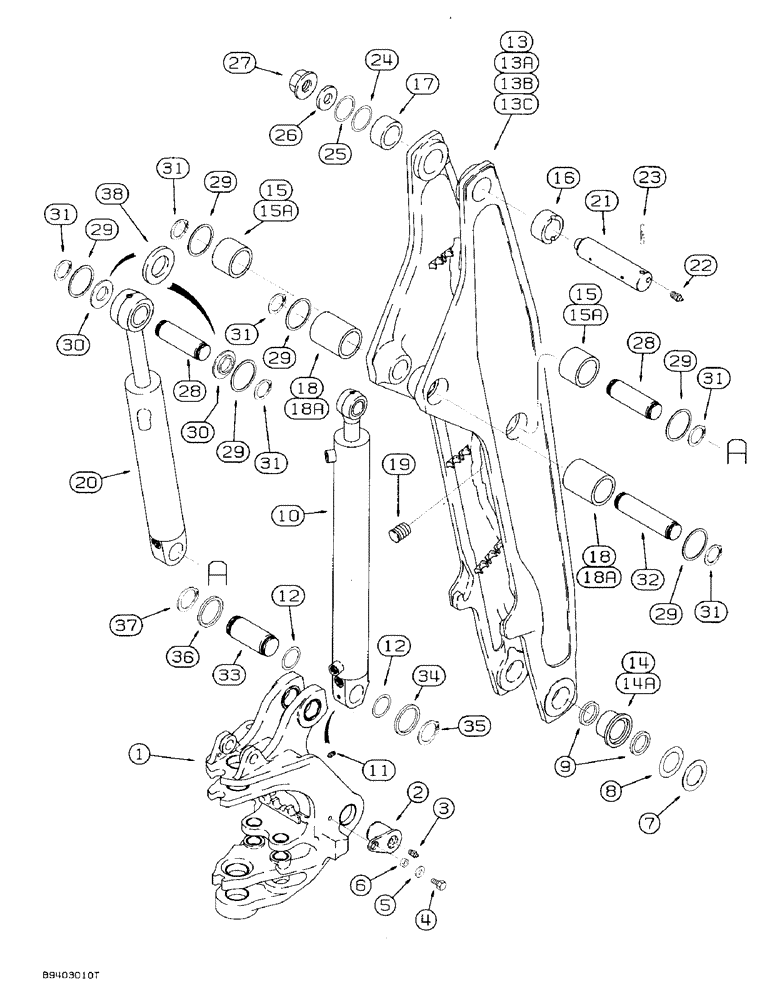

Запчасти Case 580SK (9-038) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWING TOWER backhoe, with inner ears, see Figure 9-036 for swing tower and bushings

1шт.

2

105752A1

PIN

swing tower to boom, replaces D140093

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

4

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch

2шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, 20 x 44 x 6 mm, hardened

2шт.

6

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

25/32 inch ID x 1-1/4 inch OD x 1/2 inch thick

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

boom to swing tower

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM, 2-13/16 x 4-1/2 x 1/16 inch

1шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease, used with D136569 bushing, Ref. 14, if used

4шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY boom, for correct assembly and components, see Figure 8-128 - 8-131C

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

12

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease, if used

4шт.

13

D147729

BOOM

backhoe, includes grooved bushing used with Ref. 9 grease seal at boom to swing tower pivot, prior to P.I.N. JJG0163952, no longer available, order 105928A1 boom

1шт.

13a

D150606

BOOM

backhoe, without grease seal at boom to swing tower pivot, P.I.N. JJG0163952 thru JJG0169122, no longer available, order 105928A1 boom

1шт.

13b

101630A1

BOOM

backhoe, without grease seal at boom to swing tower pivot, P.I.N. JJG0169123 thru JJG0171284, no longer available, order 105928A1 boom

1шт.

13c

105928A1

BOOM

backhoe, service replacement, Includes: Ref. 14 through 19

1шт.

14

D136569

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 x 90 x 34 mm long, with grease seal groove, D147729 boom to swing tower pivot

2шт.

14a

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 x 90 x 34 mm long, without groove for grease seal, D150606, 101630A1 or 105928A1 boom, replaces D150120

2шт.

15

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

50 x 70 x 54 mm long, without slot for groove pin, dipper cylinder closed end pivot, D147729 or D150606 boom

2шт.

15a

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

50 x 60 x 54 mm long, 101630A1 or 105928A1 boom

2шт.

16

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 mm ID x 44 mm long, with slot for groove pin, right-hand side of boom at boom to dipper pivot

1шт.

17

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 mm ID x 44 mm long, without slot for groove pin, left-hand side of boom at boom to dipper pivot

1шт.

18

D145080

BUSHING

50 x 70 x 78 mm long, boom cylinder rod end pivot, D147729 or D150606 boom

2шт.

18a

D148798

BUSHING

50 x 60 x 78 mm long, boom cylinder rod end pivot, 101630A1 or 105928A1 boom

2шт.

19

D120450

PLUG

plastic

7шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY dipper, for correct assembly and components, see Figure 8-132 - 8-135C

1шт.

21

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

23

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, 1/2" x 3 1/4", Type E, Hardened

1шт.

24

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

1шт.

25

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Boom to dipper 3.05mm Thk

1шт.

26

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

27

D120610

NUT

hex, 1-3/4 NF special

1шт.

28

D138022

PIN,50mm OD x 240mm L

Dipper cylinder to boom and dipper

2шт.

Either use two of Ref. 29 or two of Ref. 30 for D138022 dipper cylinder mounting pin, Ref. 28, on the dipper cylinder rod end to dipper.

1шт.

29

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

Either use two of Ref. 29 or two of Ref. 30 for D138022 dipper cylinder mounting pin, Ref. 28, on the dipper cylinder rod end to dipper.

1шт.

30

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16 x 3 x 1/8 inch, no longer used, order 495-81227 washer, Ref. 38

1шт.

Either use two of Ref. 29 or two of Ref. 30 for D138022 dipper cylinder mounting pin, Ref. 28, on the dipper cylinder rod end to dipper.

1шт.

31

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

6шт.

32

D138023

PIN,50mm OD x 290mm L

boom cylinder rod, Serial Range: end-boom

1шт.

33

D151068

PIN

boom cylinder closed end to swing tower, replaces D144420

1шт.

34

D144423

WASHER,66.7mm ID x 86mm OD x 3.4mm Thk

2-5/8 x 3-3/8 x 1/8 inch, used as a shim

1шт.

35

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining, right-hand side of swing tower

1шт.

36

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(2-27/32" x 3-1/2" x 1/16") 1.57mm Thk

1шт.

37

800-40070

SNAP RING,M70 Ext

RING snap, pin retaining, left-hand side of swing tower

1шт.

38

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.
