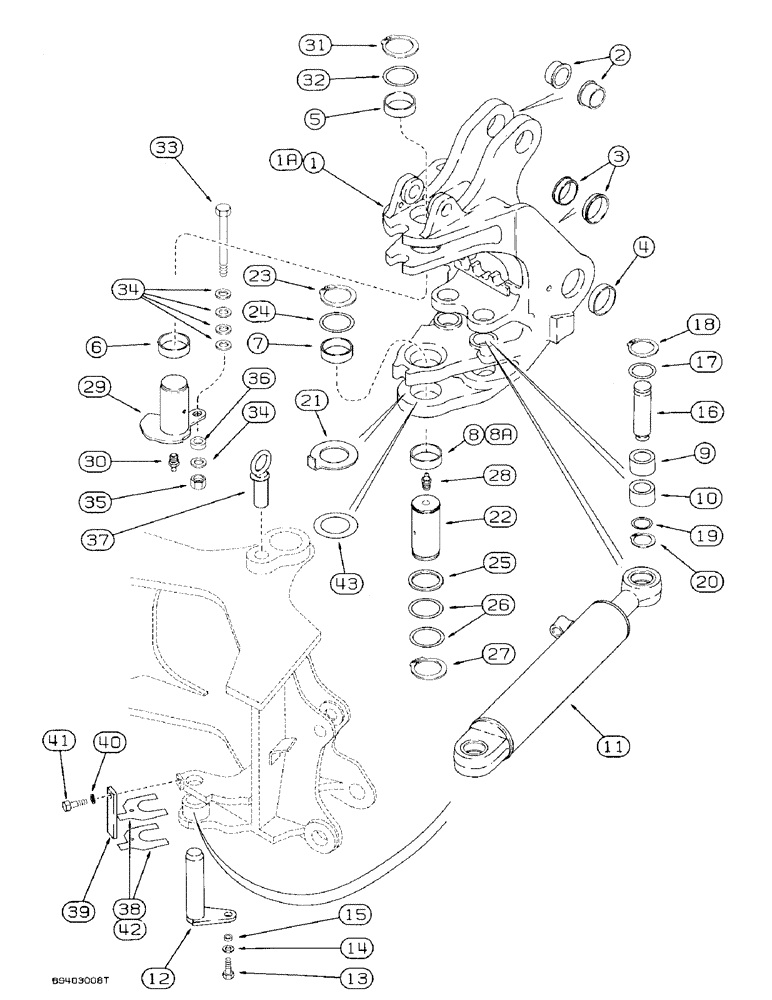

Запчасти Case 580SK (9-036) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D147804

FRAME

TOWER ASSEMBLY backhoe swing, prior to P.I.N. JJG0171285, no longer available, order 105929A1 tower, Ref. 1A

1шт.

1a

105929A1

FRAME

TOWER ASSEMBLY backhoe swing, P.I.N. JJG0171285 and after, Includes: Ref. 2 through 10

1шт.

2

D151072

BUSHING,70.19mm ID x 94mm OD x 35.8mm L

32 mm wide, boom cylinder pivot, replaces D144422

2шт.

3

D135742

BUSHING,70.19mm ID x 94mm OD x 24mm L

inner, boom pivot

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

outer, boom pivot

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

upper, swing tower pivot

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

upper, tower pivot

1шт.

7

D151073

BUSHING,70.19mm ID x 86mm OD x 34mm L

tower pivot, replaces D138042

1шт.

8

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

70 x 86 x 28 mm long, D147804 tower pivot, lower

1шт.

8a

D151074

BUSHING,70.19mm ID x 86mm OD x 28mm L

70 x 86 x 28 mm long, 105929A1 tower pivot, lower

1шт.

9

D136570

BUSHING,40.19mm ID x 55mm OD x 30mm L

upper, swing cylinder pivot

2шт.

10

D136571

BUSHING,40.19mm ID x 55mm OD x 38mm L

lower, swing cylinder pivot

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY swing, for correct assembly and components, see Figures 8-124 - 8-127A

2шт.

12

D147894

PIN

swing cylinder mounting, closed end

2шт.

13

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

15

D23740

BUSHING

bolt

2шт.

16

D146779

PIN,40.04mm OD x 160mm L

swing cylinder rod end to swing tower

2шт.

17

D144592

WASHER,41mm ID

flat, 41 mm ID

2шт.

18

800-44040

SNAP RING,M40, Ext

RING snap

2шт.

19

495-81276

WASHER,1.31" ID x 1.75" OD x 0.07" Thk

flat, 1-5/16 x 1-3/4 x 1/16 inch

2шт.

20

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

2шт.

21

D136699

WASHER

bearing, special, swing tower

1шт.

22

D151065

PIN,70mm OD x 152mm L

Lower, swing tower to frame, grease fitting mounts in top of pin, without groove pin, replaces D138038

1шт.

23

800-40070

SNAP RING,M70 Ext

RING snap, pin retaining, upper

1шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Upper 3.05mm Thk

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 mm x 83 mm x 2 mm, lower

1шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD) 1.57mm Thk

1шт.

27

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining, lower

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

29

105749A1

PIN

swing tower to frame, upper, replaces D140657

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

31

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining

1шт.

32

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 mm x 83 mm x 2 mm

1шт.

33

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

hex, 1/2 NC x 5-1/2 inch, grade 8

1шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

35

231-1448

NUT,1/2"-13, GB

light hex, self-locking, 1/2 inch NC

1шт.

36

D139603

SPACER

pin mounting

1шт.

37

D149239

PIN

swing stop, without snap ring

1шт.

38

D150498

SHIM,3mm Thk

Pin, Swing cylinder 3mm Thk

1шт.

39

D150452

PLATE

shim retaining

2шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

41

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

hex, 1/2 NC x 7/8 inch

2шт.

42

D150497

SHIM,1.6mm Thk

Pin, Swing cylinder 1.6mm Thk

1шт.

43

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

2.05 mm thick, if used

1шт.
