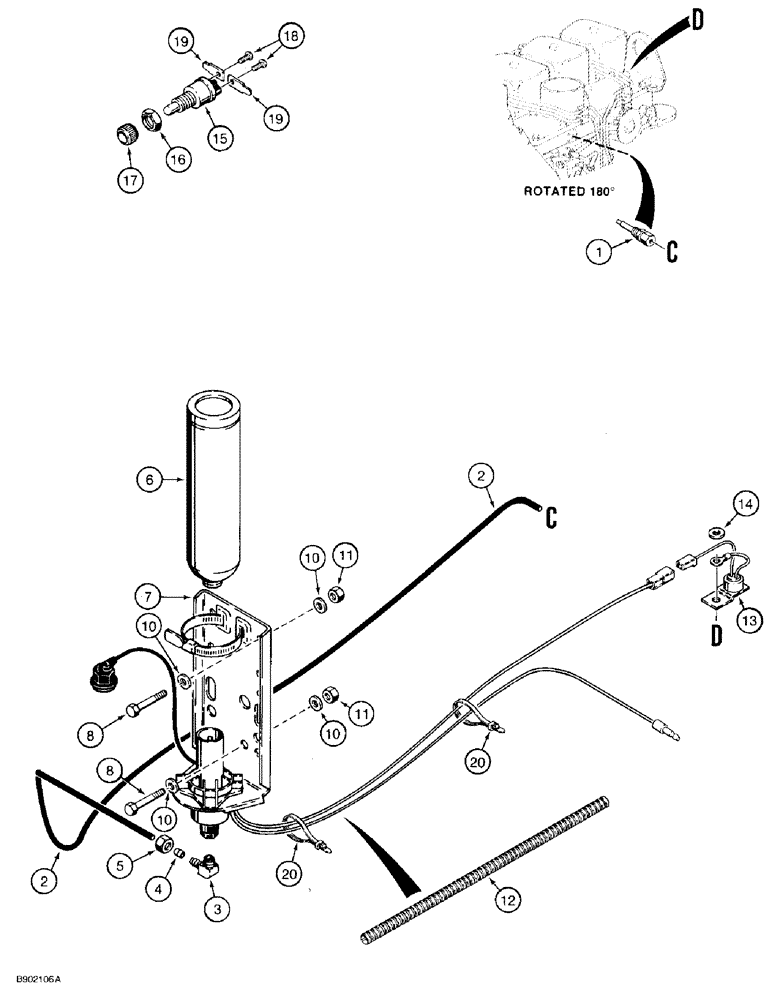

Запчасти Case 580SK (2-12) - COLD START SYSTEM (02) - ENGINE

1

A189154

JET

NOZZLE ASSEMBLY cold start injector, .008 dual orifice nozzle, component parts not serviced seperately

1шт.

2

D145367

TUBE

30 inch, 762 mm, long, valve to injector nozzle, cut to required length from L60539 bulk tube, see below

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. Ref 3, 4 & 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

6

A171940

CYLINDER

CONTAINER ether

1шт.

7

A172116

VALVE

ASSEMBLY, 3 cc starting fluid injection, component parts not serviced separately

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

11

231-1445

NUT,5/16"-18, GB

NUT hex, 5/16 inch NC

2шт.

12

D128402

PLASTIC-RUBBER TUBE

SLEEVE wire guard, 380 mm long

1шт.

13

A187923

SWITCH

- temperature, circuit breaking, includes lead wires, uses existing intake manifold mounting hardware

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

L72776

SWITCH

ASSEMBLY push button, cold start, must also order two L59682 blade terminals item 19, Includes: Ref. 15 through 18.

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH cold start

1шт.

16

H275784

JAM NUT

hex, jam, special

1шт.

17

D73741

NUT

hex, special

1шт.

18

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No. 10 NF x 1/4 inch

2шт.

19

L59682

TERMINAL CONNECTOR

TERMINAL blade, use with L72776 switch

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon

1шт.

L60539

TUBE,0.125" OD x 168" L

14 foot, bulk roll

1шт.
