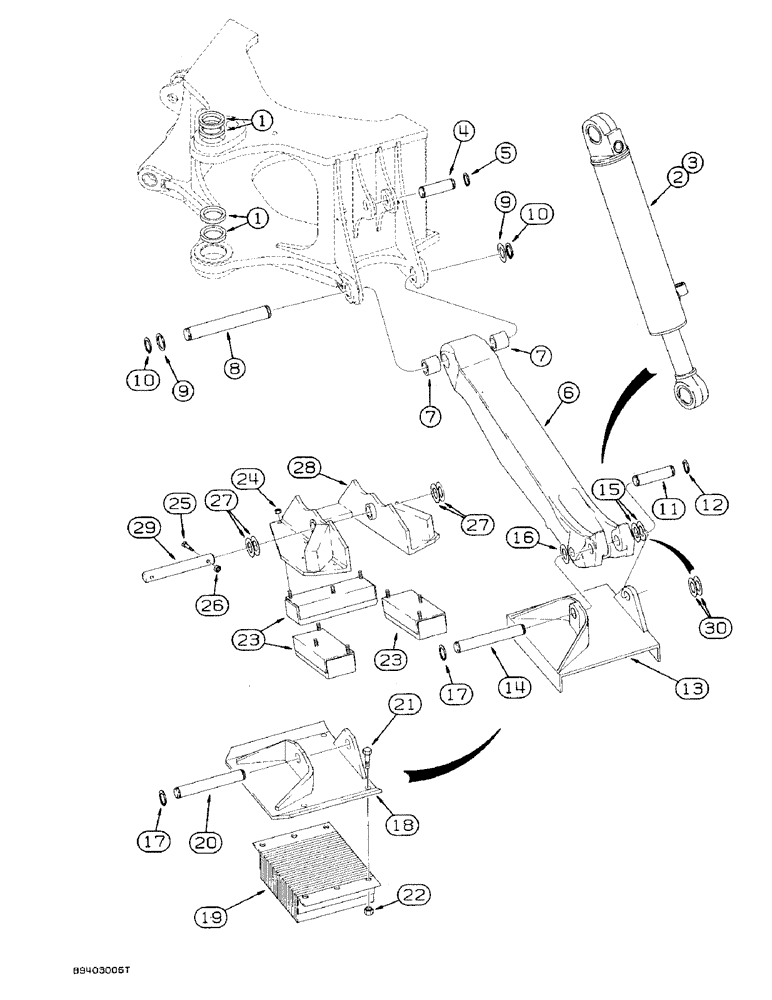

Запчасти Case 580SK (9-034) - BACKHOE STABILIZERS, PLATES AND PADS (09) - CHASSIS/ATTACHMENTS

1

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

frame, at swing tower mounting

4шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY stabilizer, right-hand, for correct assembly and components, see Figure 8-122 or 8-123A

1шт.

3

REF

INSTRUCTION

CYLINDER ASSEMBLY stabilizer, left-hand, for correct assembly and components, see Figure 8-122 or 8-123A

1шт.

4

D38907

PIN,1.75" OD x 5 5/16 L

stabilizer, Serial Range: cylinder-frame

2шт.

5

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

6

D133428

STABILIZER

LEG stabilizer, Includes: Ref. 7

2шт.

7

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

leg to frame

2шт.

8

D89838

PIN,44.45mm OD x 320mm L

stabilizer, Serial Range: leg-frame

2шт.

9

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

10

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

11

D26002

PIN,38.1mm OD x 187.32mm L

stabilizer, Serial Range: cylinder-leg

2шт.

12

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

13

D88427

PLATE

stabilizer, cleated, if used

2шт.

14

D28648

PIN,1.5" OD x 10 7/16" L

D88427 stabilizer, Serial Range: plate-leg

2шт.

15

D31312

WASHER

spacer, 70 mm OD x 1.6 mm thick, hardened, no longer used, order D143406 washer, Ref. 30

1шт.

16

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

spacer, 1-1/2 x 2-1/2 x 7/64 thick, no longer used, order D143406 washer, Ref. 30

2шт.

17

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

18

D142519

SHOE (ASSY)

PLATE stabilizer, street or cemetery, if used

2шт.

19

D61368

PAD

Rubber, if used

2шт.

20

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN, 9-3/8 inch, 238 mm, long, D142519, Serial Range: plate-leg

2шт.

21

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

hex, 3/4 NC x 1-3/4 inch

8шт.

22

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

D147316

PAD

PLATE ASSEMBLY stabilizer flip over, Includes: Ref. 23 through 29

2шт.

23

D142314

SKID/SHOE

PAD rubber, used with D147317 plate

3шт.

24

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

9шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, If used

2шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC, If used

2шт.

27

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

flat, 1-17/32 x 2-1/16 x 1/8 inch, no longer used, not required

4шт.

28

D147317

SKID/SHOE

PLATE stabilizer, flip over, Category III, if used

1шт.

29

D149033

PIN,38.1mm OD x 323.5mm L

12-1/2 inch long, Plate to stabilizer leg, if used

1шт.

30

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

flat, 1-17/32 x 2-23/64 x 1/8 inch, used as a spacer

1шт.

spacer

1шт.
