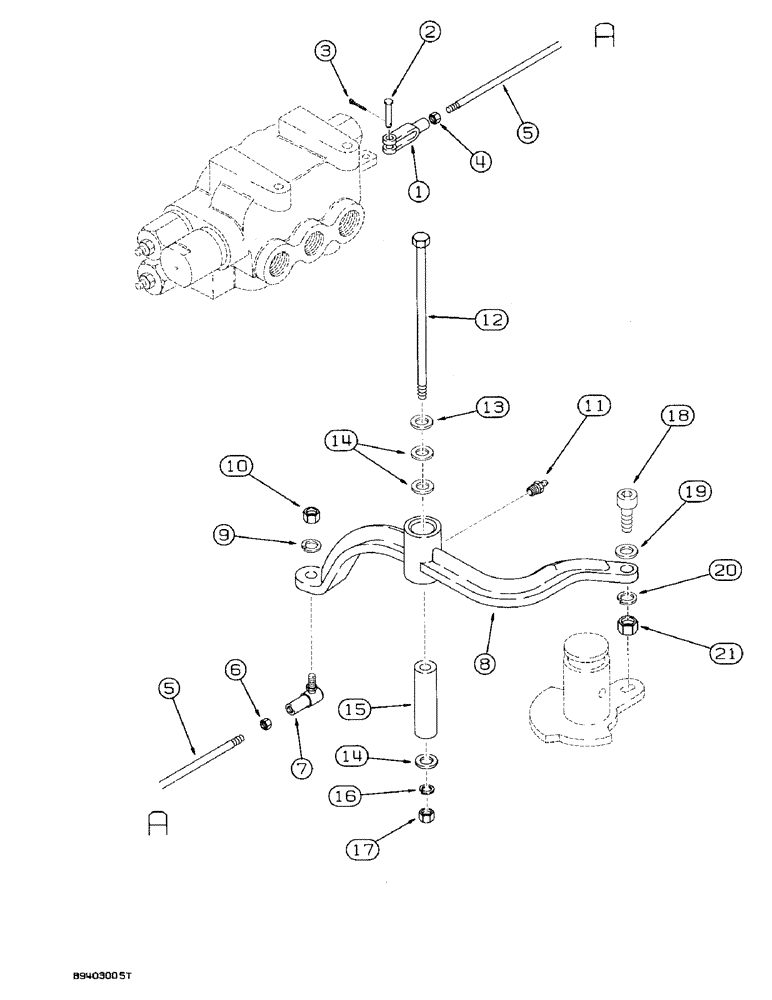

Запчасти Case 580SK (9-032) - BACKHOE SWING SEQUENCE VALVE CONTROL (09) - CHASSIS/ATTACHMENTS

1

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF, Attaches to swing sequence valve spool

1шт.

2

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, 5/16 x 15/16 inch, hardened

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

4

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

5

D143594

ROD

control

1шт.

6

129-215

NUT,3/8"-24, G5, LH

hex, 3/8 inch NF, left-hand thread, ball joint end

1шт.

7

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, 3/8 inch, left-hand thread

1шт.

8

D145218

POWER ARM

LEVER crank, swing sequence

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

12

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

hex, 1/2 NC x 5-1/2 inch

1шт.

13

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

flat, special, hardened

1шт.

14

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

15

D145249

SPACER

pivot

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

D145113

SHIFTER ROLLER

FOLLOWER cam, hex socket

1шт.

19

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF

1шт.
