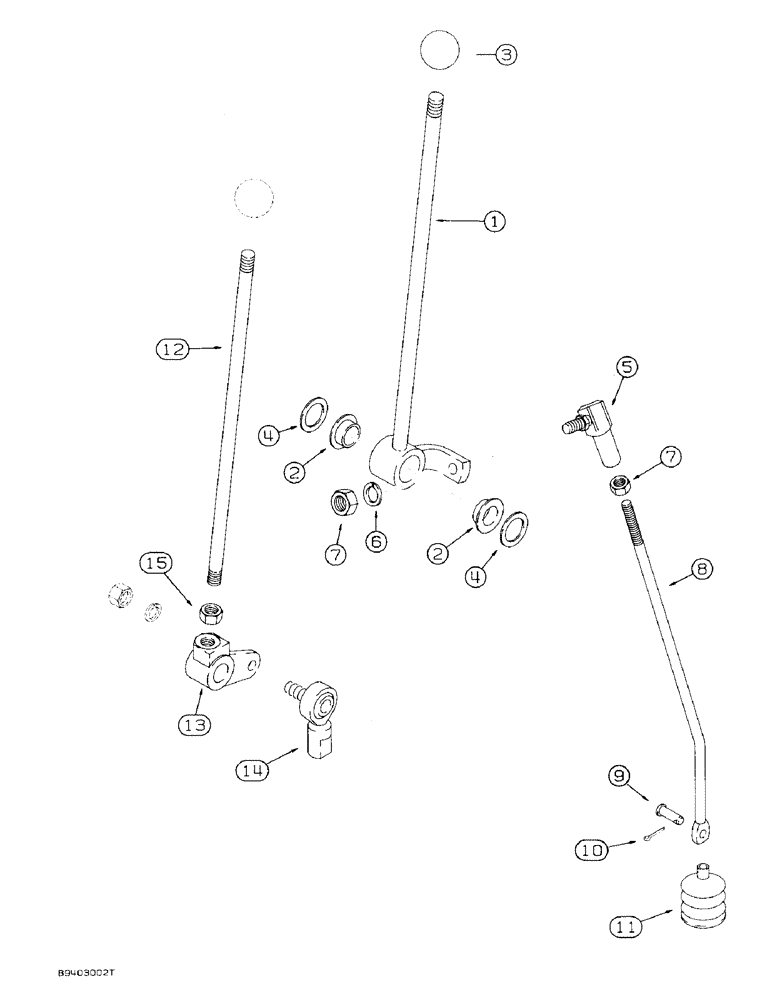

Запчасти Case 580SK (9-026) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D149087

LEVER

extendahoe control, no longer available, order 121613A1 lever, D150436 bellcrank and 425-118 nut, Ref. 12, 13 and 15, Includes: Ref. 2

1шт.

2

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever, if used

2шт.

3

L54563

KNOB

extendahoe control lever

1шт.

4

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

1шт.

5

D149295

BALL JOINT,3/8"

JOINT ball, control rod, if used

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

2шт.

8

D149009

ROD

extendahoe control, Serial Range: lever-valve

1шт.

9

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, Serial Range: rod-valve

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

D85869

BELLOWS

BOOT control rod, if used

1шт.

12

121613A1

ROD

LEVER extendahoe control, if used, replaces 101525A1

1шт.

13

D150436

CRANK LEVER

BELLCRANK extendahoe control lever, if used

1шт.

14

D64925

JOINT

ball, used with item 12 or 13 only, if used

1шт.

15

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF, if used

1шт.
