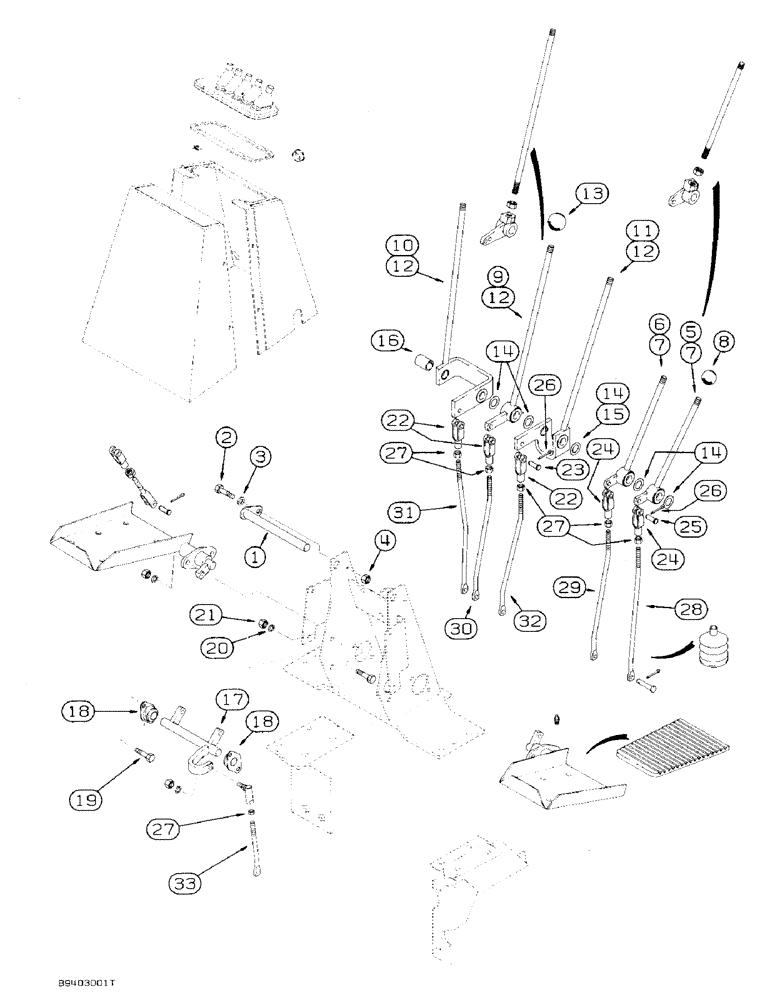

Запчасти Case 580SK (9-022) - BACKHOE CONTROLS WITH FOOT SWING, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

D147932

SHAFT

pivot, control levers

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

4

231-1445

NUT,5/16"-18, GB

NUT light hex, self-locking, 5/16 inch NC

1шт.

5

D149082

LEVER

left-hand stabilizer control, if used, may be replaced with D150434 bellcrank, 101526A1 lever and 425-118 nut, Ref. 53, 55 and 56 on Figure 9-024

1шт.

6

D149083

LEVER

right-hand stabilizer control, if used, may be replaced with D150435 bellcrank, 101526A1 lever and 425-118 nut, Ref. 53, 55 and 57 Figure 9-024, lncludes: Ref. 7

1шт.

7

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Lever, used with D149082 and D149083 levers

2шт.

8

D59912

KNOB

stabilizer control levers

2шт.

9

D149085

LEVER

dipper control, no longer available, order D150397 bellcrank, 121613A1 lever and 425-118 nut, Ref. 54, 55 and 58 on Figure 9-024

1шт.

10

D149086

LEVER

boom control

1шт.

11

D149084

LEVER ASSY.

LEVER bucket control, Includes: Ref. 12

1шт.

12

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Lever, used with D149085, D149086 and D149084 control levers

3шт.

13

L54563

KNOB

boom, dipper and bucket control levers

3шт.

14

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, used as a shim between control levers

1шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, hardened

1шт.

16

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

control lever, not used on models with extendable dipper or optional rear hydraulic attachments control lever replaces D128615 spacer

1шт.

17

D148994

SHAFT,182.10mm L

swing control

1шт.

18

D148993

BEARING,19.06mm ID

self-aligning, shaft

2шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

22

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS adjustable, 3/8 inch NF

3шт.

23

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

3шт.

24

D150493

END

stabilizer control rod, special, replaces D134900 clevis

2шт.

25

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN clevis, 3/8 x 7/8 inch, hardened

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

5шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

6шт.

28

D149005

ROD

left-hand stabilizer control

1шт.

29

D149006

ROD

right-hand stabilizer control

1шт.

30

D149007

ROD

dipper control

1шт.

31

D149004

ROD

boom control

1шт.

32

D149008

ROD

bucket control

1шт.

33

D148981

ROD

swing control

1шт.
