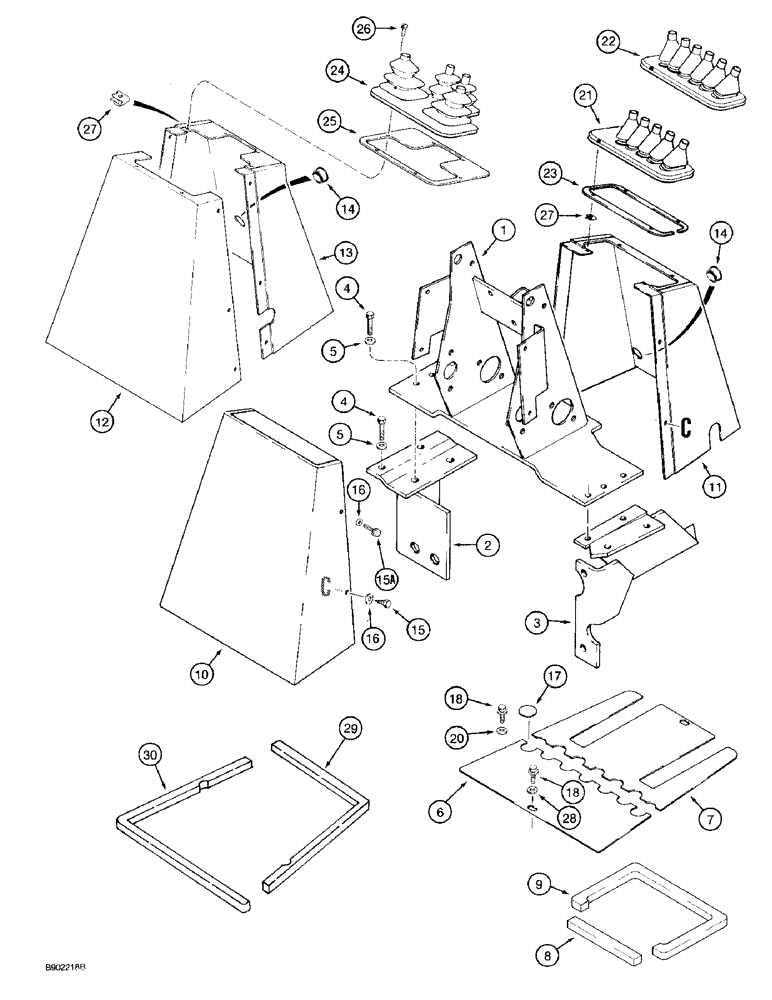

Запчасти Case 580SK (9-020) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

108937A1

BRACKET

SUPPORT backhoe control mounting, replaces D149035

1шт.

2

109689A1

BRACKET

valve mounting, left-hand, replaces D140816

1шт.

3

D140820

BRACKET

valve mounting, right-hand

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

8шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

8шт.

6

D140101

PLATE

floor, backhoe control tower, if used

1шт.

7

D140100

PLATE

floor, backhoe control tower, if used

1шт.

8

D137902

GASKET

7 inch, 178 mm, long, gasket, if used

1шт.

9

D133491

GASKET

gasket, backhoe control floor plate, if used

1шт.

10

D134085

COVER

console, rear, used on all models with foot swing

1шт.

11

D149668

COVER

console, front, used on all models with foot swing

1шт.

12

D149669

COVER

console, rear, used on all models with hand swing

1шт.

13

D149670

COVER

console, front, used on all models with hand swing

1шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

1 used with D149670 console - 2 used with D149668 console cover Dome, 1.000" hole, Nylon

1-2шт.

15

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW self-tapping, hex washer head, 1/4 NC x 1/2 inch, lower

2шт.

15a

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch,upper

3шт.

16

195-140

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

5шт.

17

D140267

PLUG,30.16mm OD

button, 1-3/16 inch, 30 mm, diameter, tan, if used

1шт.

18

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self-tapping, 5/16 NC x 3/4 inch, if used

4шт.

20

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/64 inch, if used

2шт.

21

D149866

BOOT

used with D149668 console cover with 5 control levers

1шт.

22

D149867

BOOT

used with D149668 console cover with 6 control levers

1шт.

23

D149509

OIL SEAL

RETAINER boot, used with Ref. 21 and 22

1шт.

24

D149868

BOOT

Used with D149670 console cover with 4 control levers

1шт.

25

D149512

PLATE

RETAINER boot, used with Ref. 24 only

1шт.

26

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(4) used with D149509 retainer, (6) used with D149512 retainer Cross Pan Hd, #10-24 x 3/4"

4-6шт.

27

131-861

SPRING NUT,Tinn, U, #10-24

4 used with D149509 retainer, 6 used with D149512 retainer Tinn, U, #10-24

4-6шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

2шт.

29

104540A1

SEALING STRIP,25mm W x 641mm L x 25.4mm Thk

foam, self-adhesive back, control mounting support, used in place of Ref. 6-9 on some models, if used

1шт.

30

104541A1

SEALING RING

foam, self-adhesive back, control mounting support, used in place of Ref. 6-9 on some models, if used

1шт.

used in place of items 6-9 on some models, if used

1шт.
