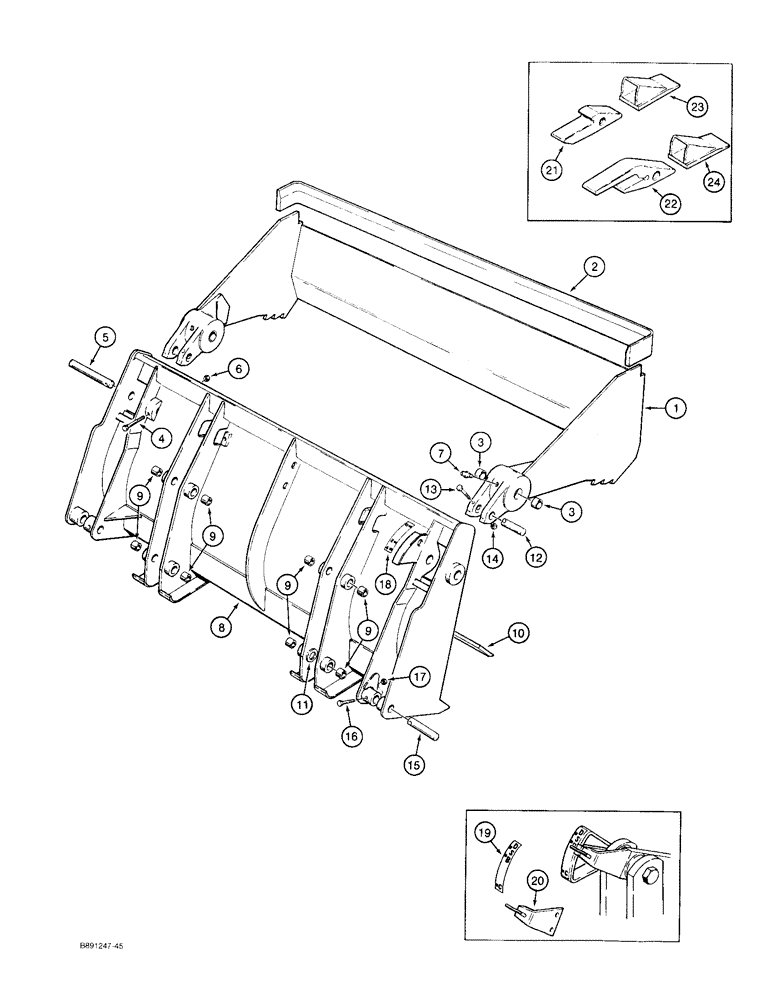

Запчасти Case 580SK (9-018) - CLAM BUCKET, OPTIONAL BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

D102070

BUCKET ASSEMBLY clam, 82 inch, 2083 mm wide, machinery item, order from Machinery Price List, clam bucket, Includes: Ref. 1 through 11, P/N D133816 and D133817

1шт.

D133816

SHELL

CLAM ASSEMBLY bucket, clam bucket, Includes: Ref. 1, 2 and 3

1шт.

Reference D133816 clam assembly - compaction plate for this part is D75630

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

2

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

EDGE cutting, bucket, clam bucket

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

clam pivot, clam bucket

4шт.

4

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch, clam bucket

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, clam to blade, clam bucket

2шт.

6

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC, clam bucket

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 inch NPT, clam bucket

2шт.

D133817

BLADE

ASSEMBLY clam bucket, Includes: Ref. 8 through 11

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE bucket, clam bucket

1шт.

9

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear, clam bucket

8шт.

10

D75636

EDGE, CUTTING

EDGE cutting, blade, clam bucket

1шт.

11

D135602

WASHER

flat, 1-5/8 ID x 2-3/8 inch OD, hardened, special, welded to lower inner bucket ears, clam bucket

2шт.

12

D51392

PIN,31.72mm OD x 101.6mm L

cylinder mounting, upper, clam bucket

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch, clam bucket

2шт.

14

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC, clam bucket

2шт.

15

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower, clam bucket

2шт.

16

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, Clam bucket

2шт.

17

231-4116

NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch NC, clam bucket

2шт.

18

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator, clam bucket

1шт.

19

321-1707

DECAL

clam bucket position, clam bucket

1шт.

20

D123157

SUPPORT

POINTER bucket position, bolts to clam bucket link, see Figure 9-014 for link and mounting hardware, clam bucket

1шт.

21

D26368

SUPPORT

SHANK tooth, original equipment, optional bucket teeth

10шт.

22

D58499

SUPPORT

SHANK tooth, heavy duty service option, optional bucket teeth

10шт.

23

D27748

TOOTH

POINT tooth, original equipment, optional bucket teeth

10шт.

24

D36720

TOOTH

POINT tooth, heavy duty service option, optional bucket teeth

10шт.
