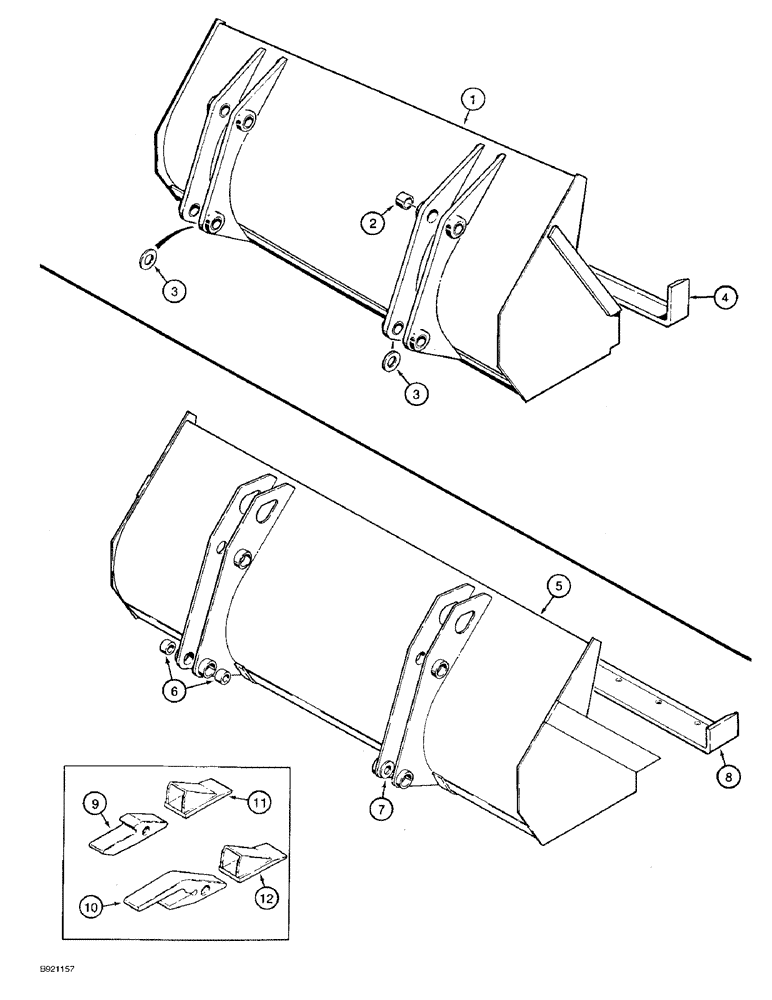

Запчасти Case 580SK (9-016) - LOADER BUCKET, SHORT LIP BUCKET, LONG LIP BUCKET, BUCKET (09) - CHASSIS/ATTACHMENTS

D134142

BUCKET

ASSEMBLY loader, 90 inch, 2286 mm, wide, without teeth, machinery item, order from Machinery Price List, short lip bucket, Includes: Ref. 1 through 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader, short lip bucket

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear, short lip bucket

8шт.

3

D135602

WASHER

hardened, special, used as a spacer, welded to inner ear at lower pin hole only, short lip bucket

2шт.

4

D65287

EDGE, CUTTING

EDGE cutting, front, 90 inch, 2285 mm, bucket, short lip bucket

1шт.

4a

D147323

EDGE

cutting, front, 90 inch, 2285 mm, bucket, bolt-on type, not shown, short lip bucket

1шт.

4b

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

BOLT plow, 3/4 NC x 2-1/2 inch, grade 8, used with D147323 cutting, edge, not shown, short lip bucket

15шт.

4c

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, used with D147323 cutting edge, not shown, short lip bucket

15шт.

D146364

BUCKET

ASSEMBLY loader, 82 inch, 2083 mm, wide, without teeth, machinery item, order from Machinery Price List, long lip bucket, Includes: Ref. 5 through 8

1шт.

82 inch bolt-on can be ordered

1шт.

Order The following 82 inch cutting edges thru Ship Direct Central: ZPC215381 - 82" bolt-on edge w/ 10 holes to accept 3/4" plow bolts and ZPC21612 - 82" weld-on edge, and ZPC2238317 is reversible bolt on cutting edge with 5/8 inch holes. D147323 is same with 3/4 holes.

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET loader, long lip bucket

1шт.

6

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear, long lip bucket

8шт.

7

D135602

WASHER

hardened, special, welded to lower inner bucket ear, long lip bucket

2шт.

8

D145680

EDGE, CUTTING

EDGE cutting, front, 82 inch, 2083 mm, bucket, weld-on type, long lip bucket

1шт.

8a

D145681

EDGE

cutting, front, 82 inch, 2083 mm, long, 8 inch wide, 3/4 inch thick bolt-on type, not shown

1шт.

P/N D145681 has10 holes countersunk to accept 3/4" plow bolts P/N 118-503 and nuts P/N 429-1012.

1шт.

8b

20-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

BOLT, plow, 3/4 NC x 2-1/4 inch, grade 8, used with D145681 cutting edge, not shown, long lip bucket

10шт.

8c

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, used with D145681 cutting edge, not shown, long lip bucket

10шт.

9

D26368

SUPPORT

SHANK tooth, original equipment, bucket teeth

10-11шт.

10

D58499

SUPPORT

SHANK tooth, heavy duty service option, bucket teeth

10-11шт.

11

D27748

TOOTH

POINT tooth, original equipment, bucket teeth

10-11шт.

12

D36720

TOOTH

POINT tooth, heavy duty service option, bucket teeth

10-11шт.
