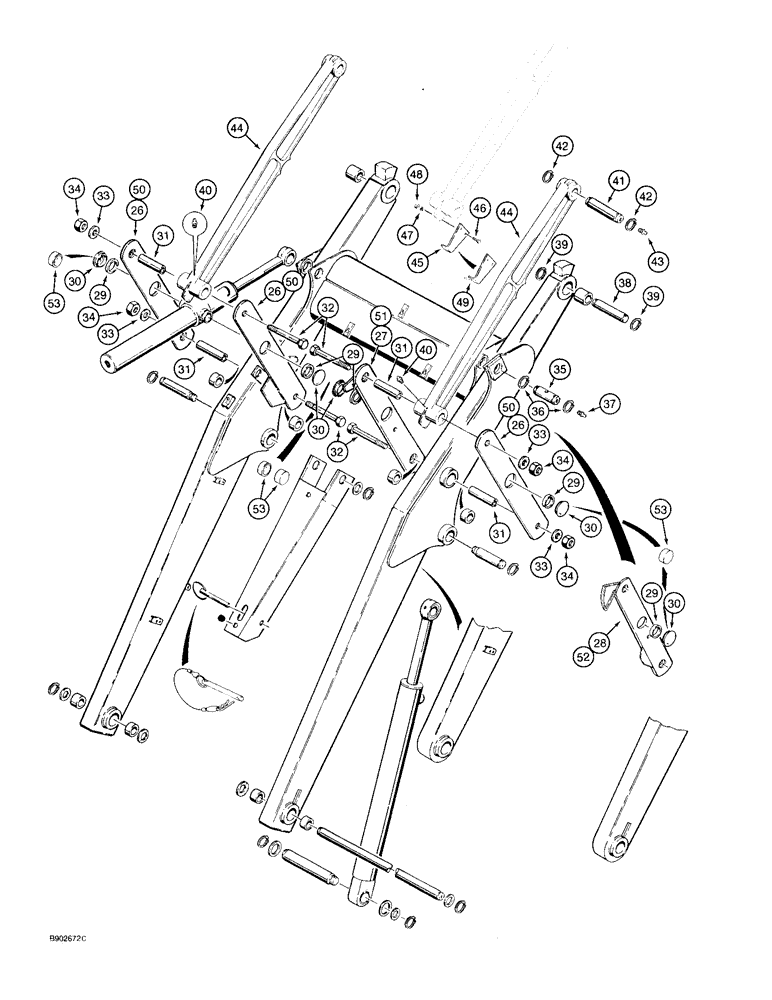

Запчасти Case 580SK (9-014) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

26

D139125

LINK ASSY.

LINK bucket cylinder, outer right-hand and inner and outer left-hand, no longer available, replaced by Ref. 50, D151148 link, see note below

3шт.

27

D150951

LINK ASSY.

LINK bucket cylinder, inner right-hand, with extra hole for antirollback rod, models without clam bucket, replaces D148384 link, see Ref. 28 for models with clam bucket, no longer available, replaced by Ref. 51, D151149 link, see note below

1шт.

28

D150937

LINK ASSY.

LINK bucket cylinder, inner right-hand, with extra hole for antirollback rod, models with clam bucket, replaces D149171 link, see Ref. 27 for models without clam bucket, no longer available, replaced by Ref. 52, D151147 link, see note below

1шт.

Includes: Ref. 29 and 30

1шт.

29

D129272

BUSHING

one per each link, Ref. 26-28, no longer available, order D151034 bushing, Ref. 53

1шт.

30

NSS

NOT SOLD SEPARAT

CAP one per each link, Ref. 26-28

1шт.

THE CAP ON LINKS WAS ORIGINALLY NSS DUE TO THE WELD. WE HAVE FOUND THAT IF A CAP IS REQUIRED IT IS OK TO USE D151034 CLOSED END BUSHING. REMOVE OLD BUSHING FROM LINK AND REPLACE WITH D151034 CLOSED END BUSHING WHICH IS A ONE PIECE CAP AND BUSHING, NO WELD REQUIRED, - PJD 4-18-96 PER NOTE ON D150937

1шт.

31

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING cylinder links, spacer

4шт.

PER TECH, THE SIZE DIFFERENCE BETWEEN THE BUSHING,REF. 31, AND THE BOLT, REF. 32, IS SUPPOSED TO BE THAT WAY. THE ID OF THE BUSHING IS 1" AND THE BOLT IS 3/4".

1шт.

32

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex, 3/4 NC x 7-1/2 inch, grade 8

4шт.

33

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, 25/32 x 1-3/8 x 1/8 inch, hardened

4шт.

34

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

4шт.

35

D129279

PIN,40mm OD x 109mm L

bucket cylinder rod end

2шт.

36

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, bucket cylinder rod end

4шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

38

D129256

PIN,40mm OD x 175mm L

loader lift frame to lower bucket mounting hole

2шт.

39

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, lift frame to lower bucket mounting hole

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

41

D129257

PIN,40mm OD x 175mm L

link to upper bucket mounting hole

2шт.

42

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, link to bucket

4шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

44

D139595

PITMAN

LINK bucket, without bushings, left-hand or right-hand, with or without clam bucket

2шт.

45

D121194

POINTER

bucket position, models without clam bucket

1шт.

46

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

49

D123157

SUPPORT

POINTER bucket position, models with clam bucket

1шт.

50

D151148

LINK

bucket cylinder, outer right-hand and inner and outer left-hand, see note below

3шт.

51

D151149

LINK ASSY.

LINK bucket cylinder, inner right-hand, with extra hole for antirollback rod, models without clam bucket, see Ref. 52 for models with clam bucket, see note below

1шт.

52

D151147

LINK

bucket cylinder, inner right-hand, with extra hole for antirollback rod, models with clam bucket, see Ref. 51 for models without clam bucket, see note below, Includes: Ref. 53

1шт.

53

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

- closed, one per each link, Ref 50-52

1шт.
