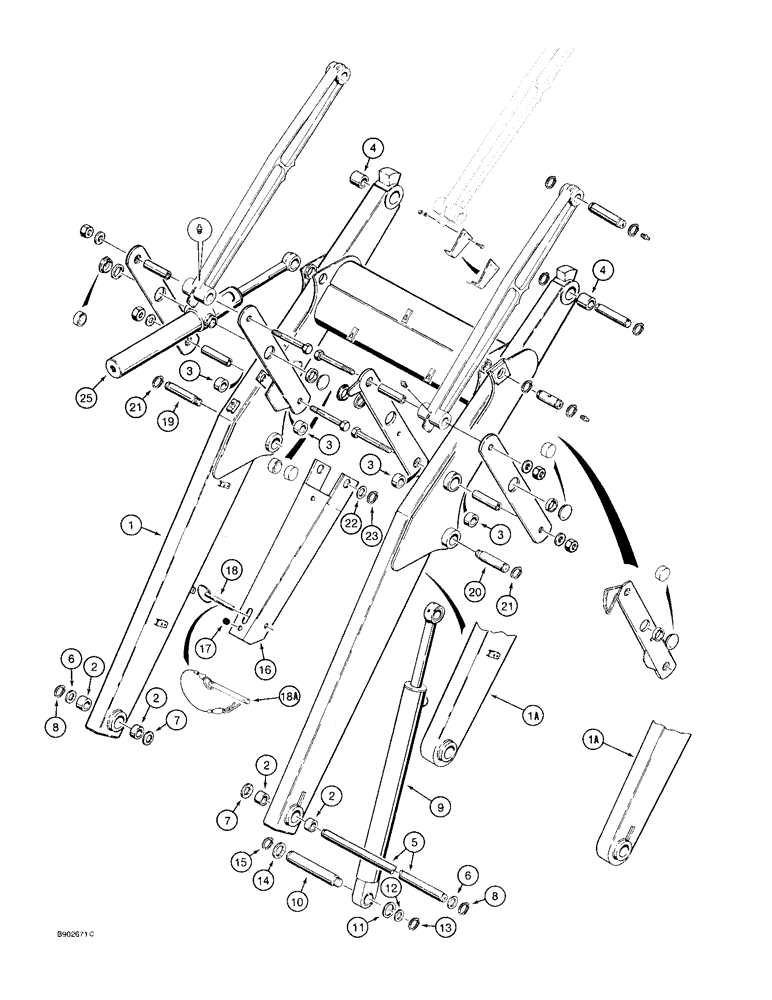

Запчасти Case 580SK (9-012) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

118623A1

ARM/LIFTING DEVICE

FRAME loader, Replaces: D147869, Includes: Ref. 2, 3 and 4

1шт.

3/8" cage nuts welded along inside of loader frame are P/N D88417

1шт.

There are 4- 1/2" dia. holes on the top of each side member of the loader frame ass'y.. These holes are for manufacturing purposes and should be plugged, welded and ground smooth to make the surface appear as though there was never a hole there.

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

loader frame pivot

4шт.

3

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

Bucket cylinder link pivot, Replaces D37763 bushing

4шт.

4

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

bucket mounting

2шт.

5

D136526

SHAFT

loader lift frame pivot

1шт.

6

D143409

WASHER,44.86mm ID x 63.5mm OD x 3.31mm Thk

flat, special, used as a spacer, two per side

4шт.

7

R27181

WASHER

SPRING Belleville, special, lift frame pivot shaft seal

2шт.

8

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Lift frame pivot shaft #175, Ext

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY loader lift, right-hand and left-hand, left-hand not shown, for correct assembly and components, see Figure 8-116 - 8-117C

2шт.

10

D135669

PIN,50mm OD x 277mm L

lift cylinder pivot, closed end

2шт.

11

D143431

WASHER

special, outer side only

2шт.

12

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch, outer

2шт.

13

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Lift cylinder closed end, outer #175, Ext

2шт.

14

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16 x 3 x 1/8 inch

2шт.

15

800-44050

SNAP RING,M50, Ext

RING snap, pin retaining, lift cylinder closed end, inner

2шт.

16

D138247

STRUT

support, loader frame, left-hand lift arm only

1шт.

17

D121047

GROMMET

support strut

1шт.

18

D120675

HITCH PIN

PIN lock, cotterless hitch, no longer available, order Ref. 18A, 104824A1, lock pin

1шт.

18a

104824A1

PIN,12.7mm OD

lock, Incl lanyard and hair pin, Loader support

1шт.

19

D135603

PIN,40mm OD x 178mm L

left-hand lift cylinder rod end

1шт.

20

D135604

AXLE PIN,40mm OD x 152mm L

PIN right-hand lift cylinder rod end

1шт.

21

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, lift cylinder rod end, outer

2шт.

22

495-81294

WASHER,1.44" ID x 2" OD x 0.07" Thk

flat, 1-7/16 inch ID x 2 inch OD x 1/16 inch thick, inner

2шт.

23

800-44035

SNAP RING,M35, Ext

RING snap, pin retaining, lift cylinder rod end, inner

2шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY loader bucket, right-hand, not shown, for correct assembly and components, see Figure 8-118 or 8-119A

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY loader bucket, left-hand, parts list for correct assembly and components, see Figure 8-118 or 8-119A

1шт.
