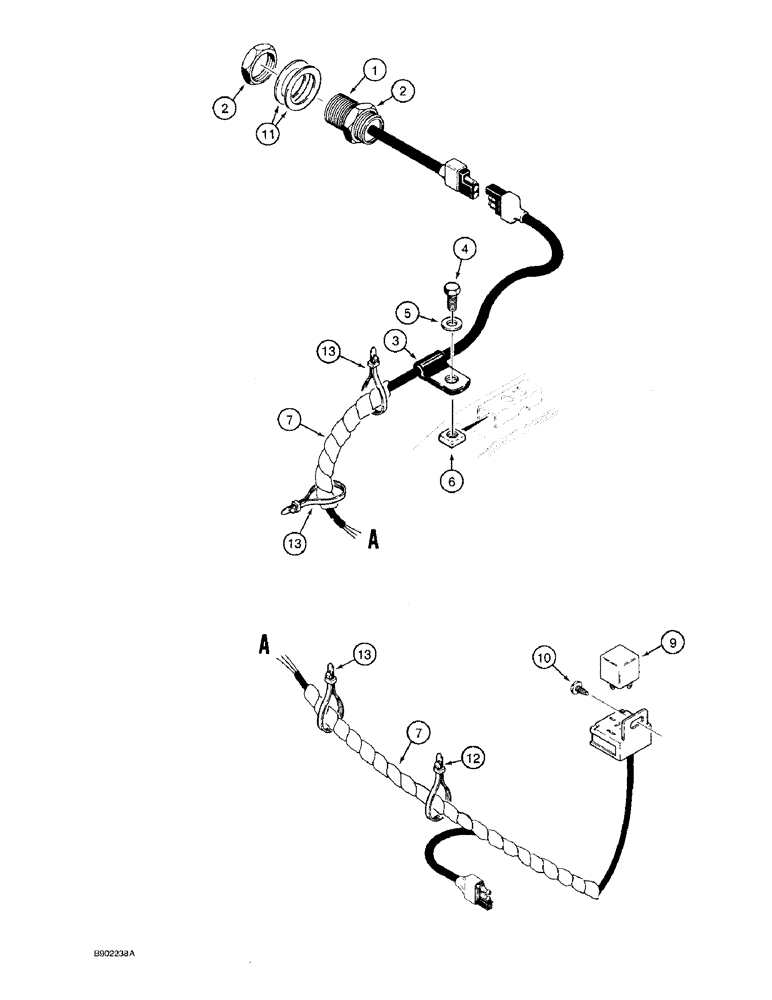

Запчасти Case 580SK (9-010) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D136898

SWITCH

proximity, return-to-dig, includes nuts, Includes: Ref. 2

1шт.

2

N14113

NUT

hex, return-to-dig switch

2шт.

3

49838

CLAMP

harness, closed, 12.7 mm ID, mounts to cage on top of right-hand loader lift frame

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

6

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

1шт.

7

D150027

HARNESS

return-to-dig, attaches to main harness

1шт.

8

D147773

CLAMP

STRAP tie, harness to inside hoses, not shown

4шт.

9

D128310

RELAY

30 amperes, return-to-dig harness

1шт.

Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

10

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch

1шт.

11

495-81237

WASHER,1 17/64" x 1 7/8" x 048"

flat, 1-17/64 x 1-7/8 x 3/64 inch

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

13

D150798

STRAP

nylon, harness to lift arm hydraulic tubes

3шт.
