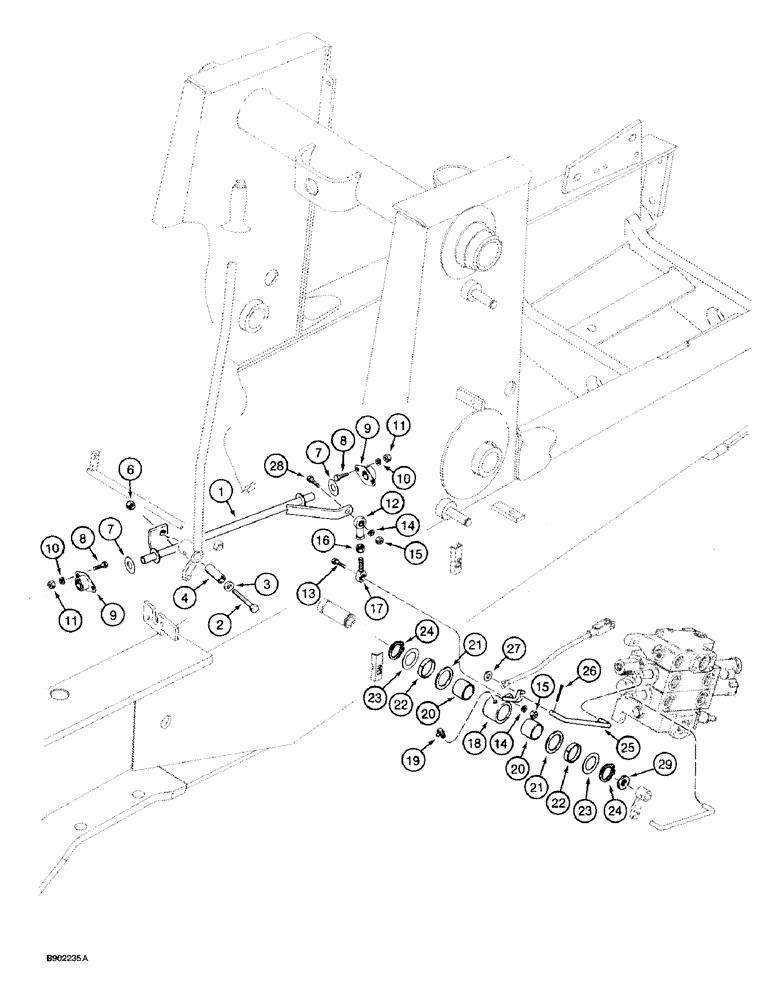

Запчасти Case 580SK (9-004) - LOADER BUCKET CONTROL (09) - CHASSIS/ATTACHMENTS

1

D149220

SHAFT

control, loader bucket, see Figure 9-002, Ref. 4, for lever

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

1шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

4

D149292

SPACER

SLEEVE rod mounting hardware

1шт.

6

131-208

SPECIAL NUT,1/2"-13

NUT heavy hex, self-locking, 1/2 inch NC

1шт.

7

495-81182

WASHER,21/32" x 1 1/4" x .060"

flat, 21/32 x 1-1/4 x 3/64 inch, use as a spacer

1шт.

7

495-81184

WASHER,21/32" x 1 1/2" x .030"

flat, 21/32 x 1-1/2 x 1/32 inch, use as a spacer

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

9

L15401

BEARING,15.89mm ID

pivot

2шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

D136773

BALL JOINT

JOINT ball, 3/8 inch NF, female, replaces S108030 ball joint

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

17

D144606

BALL JOINT

JOINT ball, 3/8 inch NF

1шт.

18

D149299

LEVER

bucket control, see Figure 9-002, Ref. 12, for lift and bucket control shaft

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

D149025

BUSHING

- lever

2шт.

21

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

flat, 1-17/32 x 2-1/16 x 1/8 inch

2шт.

22

D149361

SPACER

lever, models with two-spool valve

2шт.

23

495-81204

WASHER,1 9/32" x 2" x .036"

flat, 1-9/32 x 2 x 1/32 inch

2шт.

24

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Lever (Replaces D26918) #125, Ext

2шт.

25

D149297

PITMAN

ROD lift, lever to bucket section, see Figure 9-008, Ref. 25, for rollback control rod

1шт.

26

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

29

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.
