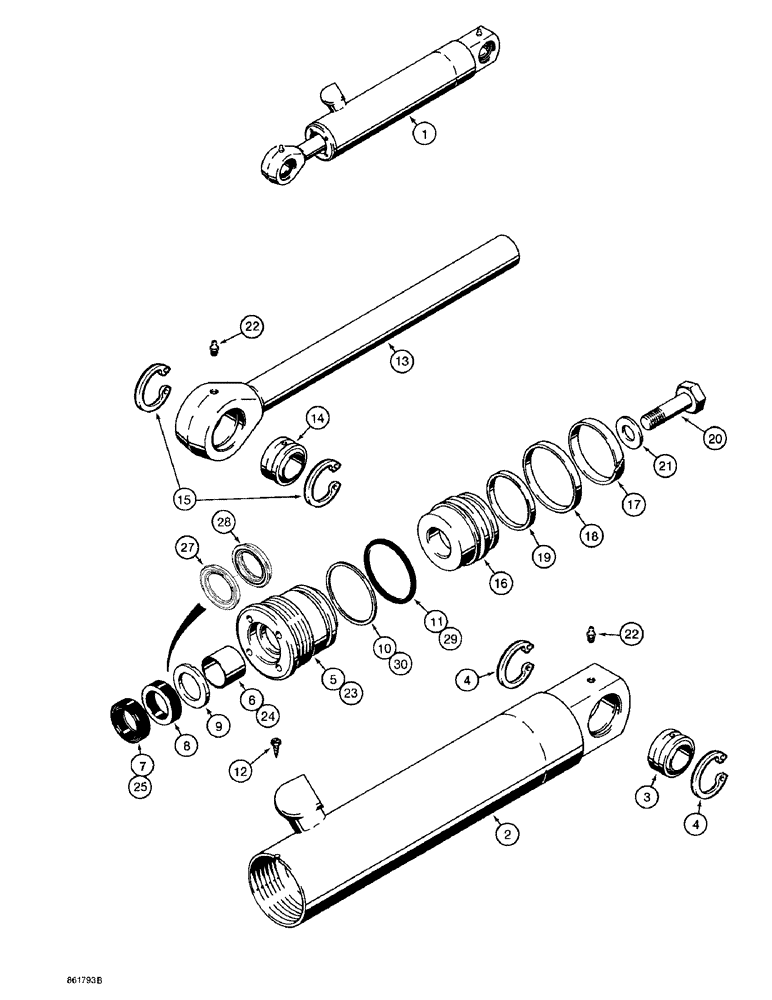

Запчасти Case 580SK (8-146) - THREE-POINT HITCH PITCH CYLINDER (08) - HYDRAULICS

1

1976884C1

JACK BODY

CYLINDER ASSEMBLY, 2-1/2, 64, ID x 7 inch, 178 mm, stroke, pitch, Includes: Ref. 2 through 30, P/N G108971 and P/N NSS above Ref. 23

1шт.

138235A1R

REMAN-HYD CYLINDER

580SK, P/N G108971 & P/N NSS, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

G109852

TUBE,63.42 mm ID x 63.5 mm DIA x 411.2 mm L

ASSEMBLY cylinder, Includes: Ref. 3 and 4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING tube, self-aligning

1шт.

4

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, , Bushing (Replaces D27833) 1.625", Int, #162

2шт.

G108971

GLAND

ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 23, 1542933C1 gland and 1543249C1 seal kit, Includes: Ref. 5 through 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

6

G102864

BEARING

BUSHING center

1шт.

Part of seal kit P/N G109475.

1шт.

7

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit P/N G109475.

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod, wide

1шт.

Part of seal kit P/N G109475.

1шт.

9

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543249C1.

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit P/N G109475.

1шт.

11

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109475.

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

13

1976902C1

ROD

ASSEMBLY piston, 1-1/4 inch, 32 mm, diameter, Includes: Ref. 14 and 15

1шт.

14

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING rod, self-aligning

1шт.

15

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, , Bushing (Replaces D27833) 1.625", Int, #162

2шт.

16

G108977

PISTON

cylinder

1шт.

17

G100714

RING

wear, piston

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543249C1.

1шт.

18

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543249C1.

1шт.

19

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543249C1.

1шт.

20

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

hex, 5/8 NF x 2-1/4 inch, grade 8

1шт.

21

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER flat, 21/32 x 1-5/16 x 9/64 inch, hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 23 through 30

1шт.

23

1542933C1

GLAND

cylinder, has identification groove on outer lip

1шт.

24

G102864

BEARING

BUSHING center

1шт.

Part of seal kit P/N 1543249C1.

1шт.

25

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit P/N 1543249C1.

1шт.

26

1542873C1

PACKAGE

KIT seal, NSS, not shown, Includes: Ref. 27 and 28

1шт.

Part of seal kit P/N 1543249C1.

1шт.

27

1543006C1

SEAL rod, NSS, order 1543249C1 kit below

1шт.

Part of seal kit P/N 1543249C1.

1шт.

28

1543005C1

SEAL buffer, NSS, order 1543249C1 kit below

1шт.

Part of seal kit P/N 1543249C1.

1шт.

29

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543249C1.

1шт.

30

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit P/N 1543249C1.

1шт.

G109475

GASKET KIT

KIT seal, Includes: Ref. 6 - 11 and 17 - 19, no longer available, order 1543249C1 seal kit below

1шт.

1543249C1

SEAL KIT

KIT seal, Includes: Ref. 9, 17 - 19, 24 - 30 and an instruction sheet

1шт.
