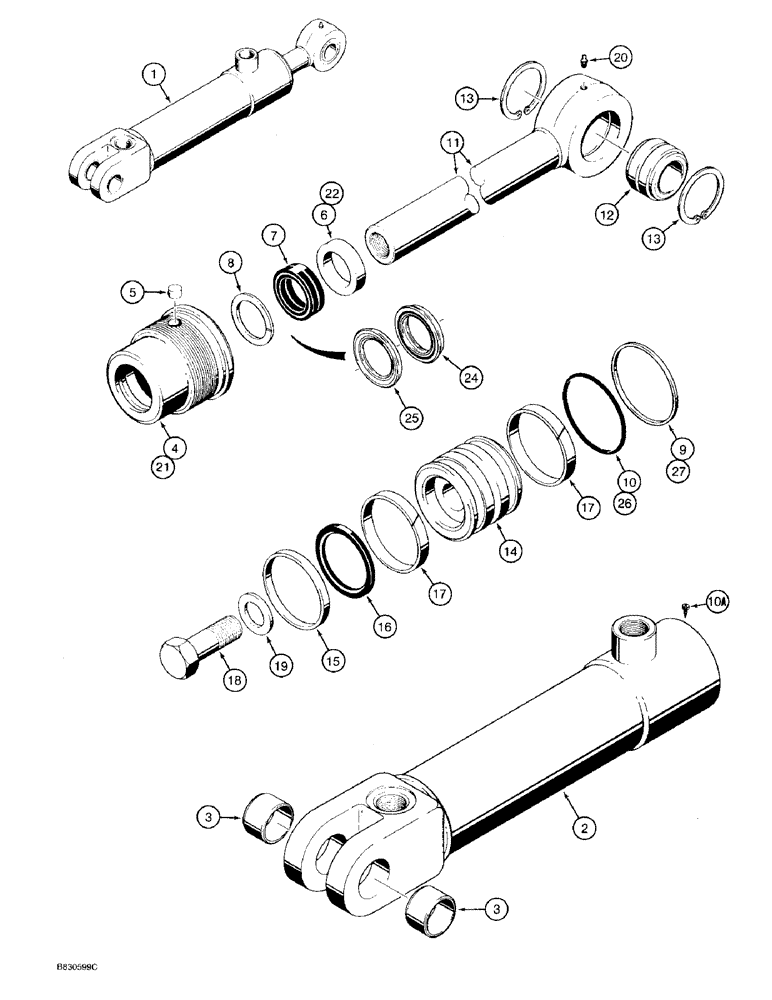

Запчасти Case 580SK (8-144) - THREE-POINT HITCH LIFT CYLINDER (08) - HYDRAULICS

1

G101188

JACK BODY

CYLINDER ASSEMBLY, 2-1/2, 64, ID x 6-19/64 inch, 160 mm, stroke, tilt, Includes: Ref. 2 through 27, P/N G104915 and P/N NSS above Ref. 21

1шт.

2

G32313

TUBE,14.43" L

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

G104915

GLAND

ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 21, 1542939C1 gland and 1543250C1 seal kit, Includes: Ref. 4 through 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

6

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit P/N G109475.

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod, wide

1шт.

Part of seal kit P/N G109475.

1шт.

7

G100775

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543250C1.

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G109475.

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G109475.

1шт.

10a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

G33352

ROD

ASSEMBLY- piston, 1-1/4 inch, 32 mm, diameter, Includes: Ref. 12 and 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING piston rod, self-aligning

1шт.

13

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, (Replaces D27833) 1.625", Int, #162

2шт.

14

G100708

PISTON

cylinder

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543250C1.

1шт.

16

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543250C1.

1шт.

17

G100714

RING

wear, piston

2шт.

Part of seal kit P/N G109475.

1шт.

Part of seal kit P/N 1543250C1.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 21 through 27

1шт.

21

1542939C1

CYLINDER END CAP

GLAND cylinder, has identification groove on outer lip

1шт.

22

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit P/N 1543250C1.

1шт.

23

1542873C1

PACKAGE

KIT seal, NSS, not shown, Includes: Ref. 24 and 25

1шт.

Part of seal kit P/N 1543250C1.

1шт.

24

1543006C1

SEAL rod, NSS, order 1543250C1 kit below

1шт.

Part of seal kit P/N 1543250C1.

1шт.

25

1543005C1

SEAL buffer, NSS, order 1543250C1 kit below

1шт.

Part of seal kit P/N 1543250C1.

1шт.

26

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543250C1.

1шт.

27

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543250C1.

1шт.

G109475

GASKET KIT

KIT seal, Includes: Ref. 6, 7 of P/N D36968, 8 - 10 and 15 - 17, no longer available, order 1543250C1 seal kit below

1шт.

1543250C1

SEAL KIT

KIT seal, Includes: Ref. 8, 15 - 17, 22 - 27 and an instruction sheet

1шт.
