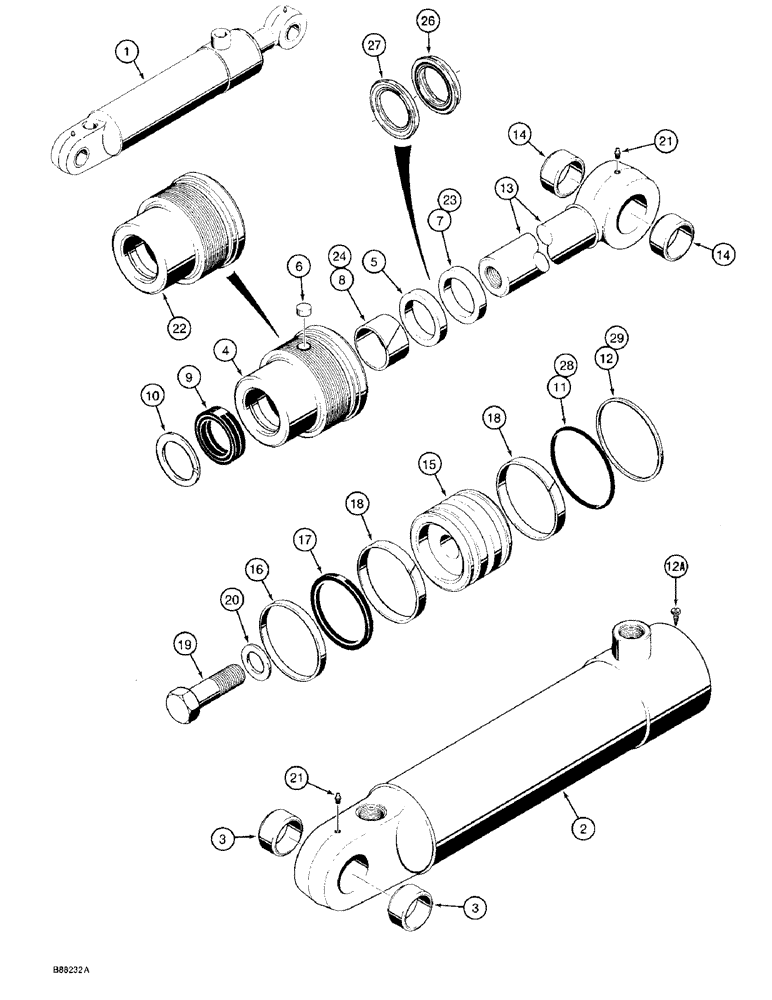

Запчасти Case 580SK (8-142) - THREE-POINT HITCH LIFT CYLINDER (08) - HYDRAULICS

1

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3, 76, ID x 8-3/8 inch, 213 mm, stroke, lift, Includes: Ref. 2 through 29, P/N G104222 and P/N NSS above Ref. 22

1шт.

2

G32330

TUBE,16.59" L

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tube

2шт.

G104222

GLAND

ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 22, 1542962C1 gland and 1543252C1 seal kit, Includes: Ref. 4 through 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, bushing

1шт.

6

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit P/N G109452.

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109452.

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G109452.

1шт.

9

G100776

SEAL

U-cup, piston rod, service option - severe heat or cold

1шт.

10

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109452.

1шт.

Part of seal kit P/N 1543252C1.

1шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109452.

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G109452.

1шт.

12a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

13

G33457

PISTON ROD

ROD ASSEMBLY piston, 1-1/2 inch, 38 mm, diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

15

G100442

PISTON

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G109452.

1шт.

Part of seal kit P/N 1543252C1.

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G109452.

1шт.

Part of seal kit P/N 1543252C1.

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

2шт.

Part of seal kit P/N G109452.

1шт.

Part of seal kit P/N 1543252C1.

1шт.

19

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 22 through 29

1шт.

22

1542962C1

GLAND

cylinder, has identification groove on outer lip

1шт.

23

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543252C1.

1шт.

24

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N 1543252C1.

1шт.

25

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 26 and 27

1шт.

Part of seal kit P/N 1543252C1.

1шт.

26

1542997C1

SEALING RING

rod, NSS, order 1543252C1 kit below

1шт.

Part of seal kit P/N 1543252C1.

1шт.

27

1542996C1

SEAL

buffer, NSS, order 1543252C1 kit below

1шт.

Part of seal kit P/N 1543252C1.

1шт.

28

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543252C1.

1шт.

29

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543252C1.

1шт.

G109452

GASKET KIT

KIT seal, Includes: Ref. 7, 8, 9 of P/N G107921, 10 - 12 and 16 - 18, no longer available, order 1543252C1 seal kit below

1шт.

1543252C1

SEAL KIT

KIT seal, Includes: Ref. 10, 16 - 18, 23 - 29 and an instruction sheet

1шт.
