Запчасти Case 580SK (8-140) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

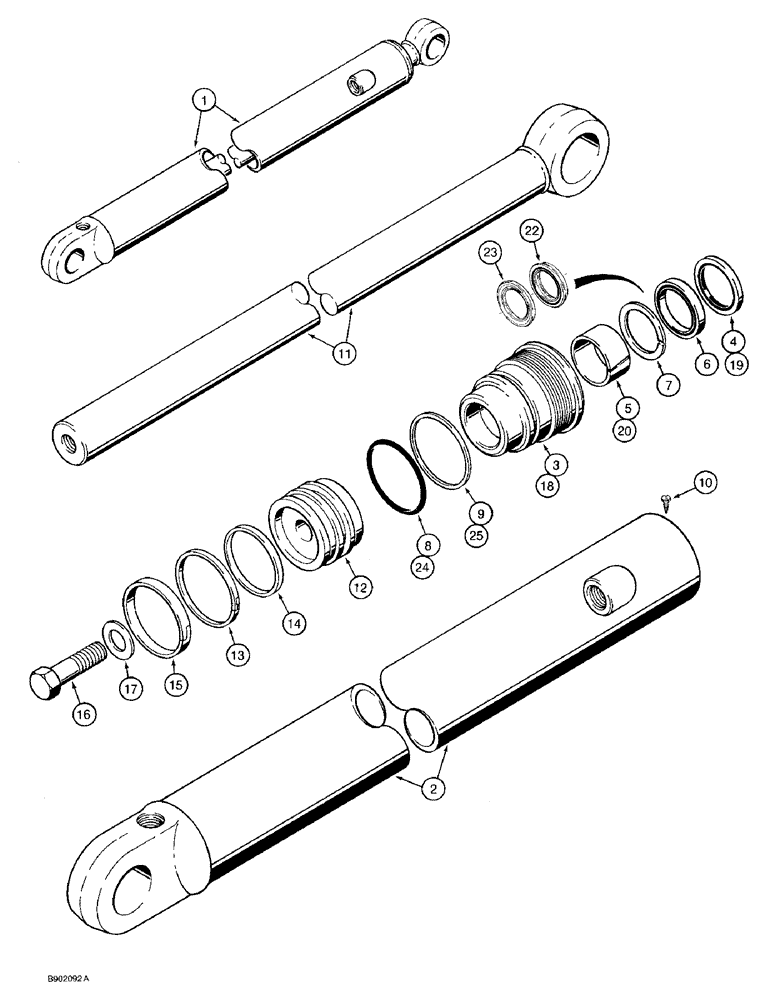

Схема запчастей Case 580SK - (8-140) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS
25
17
18
10
24
13
14
5
23
4
11
19
15
20
6
8
7
2
1
16
12
3
22
9

Артикул

Название

Примечание

Количество

1

1340969C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3, 76, ID x 42-1/16 inch, 1068 mm, stroke, dipper extension, Includes: Ref. 2 through 25, P/N G109885 and P/N NSS above Ref. 18

1шт.

2

1340970C1

TUBE,76.1mm Bore Dia

BARREL, Tube cylinder, without bushing

1шт.

G109885

GLAND

ASSEMBLY cylinder, no longer available, order Ref. 18, G109884 gland and 1543267C1 seal kit, Includes: Ref. 3 through 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N G110049.

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110049.

1шт.

6

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049.

1шт.

7

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049.

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110049.

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110049.

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

1980296C1

PISTON ROD

ROD piston, 1-3/4 inch, 44 mm, diameter, without bushing

1шт.

12

G107277

PISTON

cylinder

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

17

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 18 through 25

1шт.

18

G109884

CYLINDER END CAP

GLAND cylinder

1шт.

19

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543267C1.

1шт.

20

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N 1543267C1.

1шт.

21

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 22 and 23

1шт.

Part of seal kit P/N 1543267C1.

1шт.

22

1542999C1

SEAL

rod, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

23

1542998C1

SEALING RING

buffer, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

24

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543267C1.

1шт.

25

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543267C1.

1шт.

G110049

KIT

seal, Includes: Ref. 4 - 9 and 13 - 15, no longer available, order 1543267C1 kit below

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 13 - 15, 19 - 25 and an instruction sheet

1шт.

Выбрано товаров: 48
