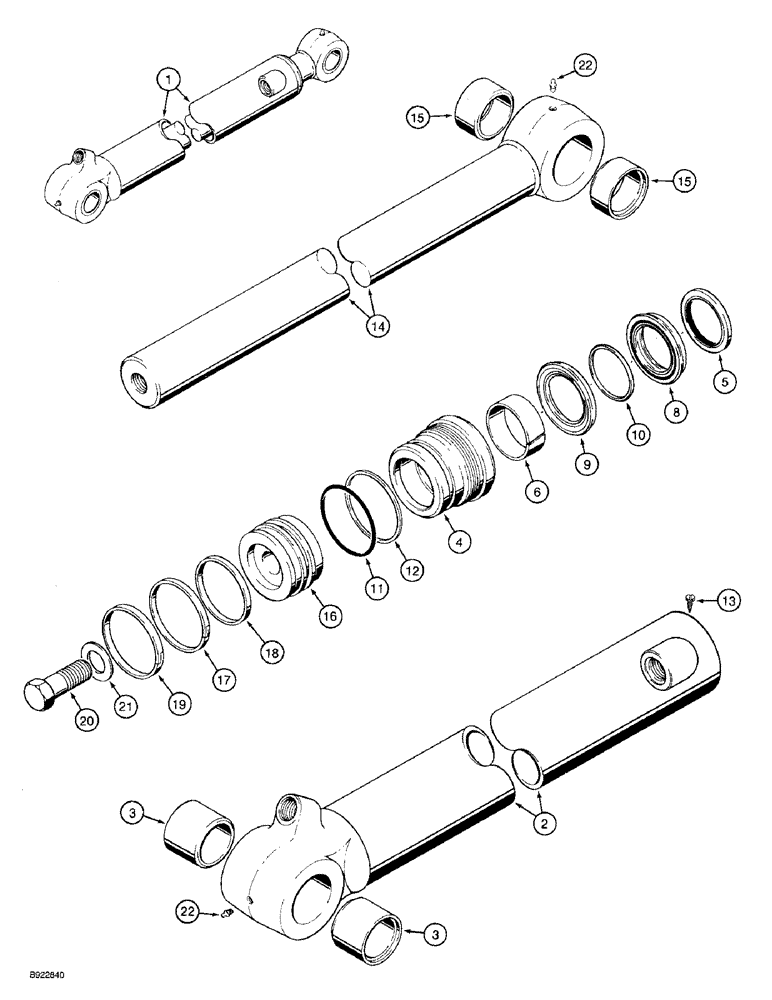

Запчасти Case 580SK (8-139A) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

1542920C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/2, 89, ID x 34-5/16 inch, 872 mm, stroke, bucket, no longer available, order 110290A1 cylinder on Figure 8-139C, Includes: Ref. 2 through 22 and P/N NSS above Ref. 4

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

1542656C1

TUBE,88.77 mm ID, 1086.9 mm Length

ASSEMBLY cylinder, order 110292A1 tube on Figure 8-139C, Includes: Ref. 3

1шт.

3

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4 through 12

1шт.

4

1542922C1

GLAND

cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1542923C2.

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

center

1шт.

Part of seal kit P/N 1542923C2.

1шт.

7

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT seal, NSS, not shown, Includes: Ref. 8, 9 and 10

1шт.

Part of seal kit P/N 1542923C2.

1шт.

8

1542931C1

SEAL

rod, NSS, order 1542923C2 kit below

1шт.

9

1542930C1

SEAL

buffer, NSS, order 1542923C2 kit below

1шт.

10

1543352C1

RING back up, NSS, no longer included in kit

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1542923C2.

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit P/N 1542923C2.

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

1986903C1

PISTON ROD

ROD ASSEMBLY piston, 2-1/2 inch, 64 mm, diameter, cylinder, order 1542658C1 rod on Figure 8-139C, Includes: Ref. 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

piston rod

2шт.

16

1986906C1

PISTON

cylinder

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N 1542923C2.

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of seal kit P/N 1542923C2.

1шт.

19

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of seal kit P/N 1542923C2.

1шт.

20

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, 1-1/4 inch, hardened, special

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT seal, Includes: Ref. 5 - 12, 17 - 19 and an instruction sheet

1шт.
