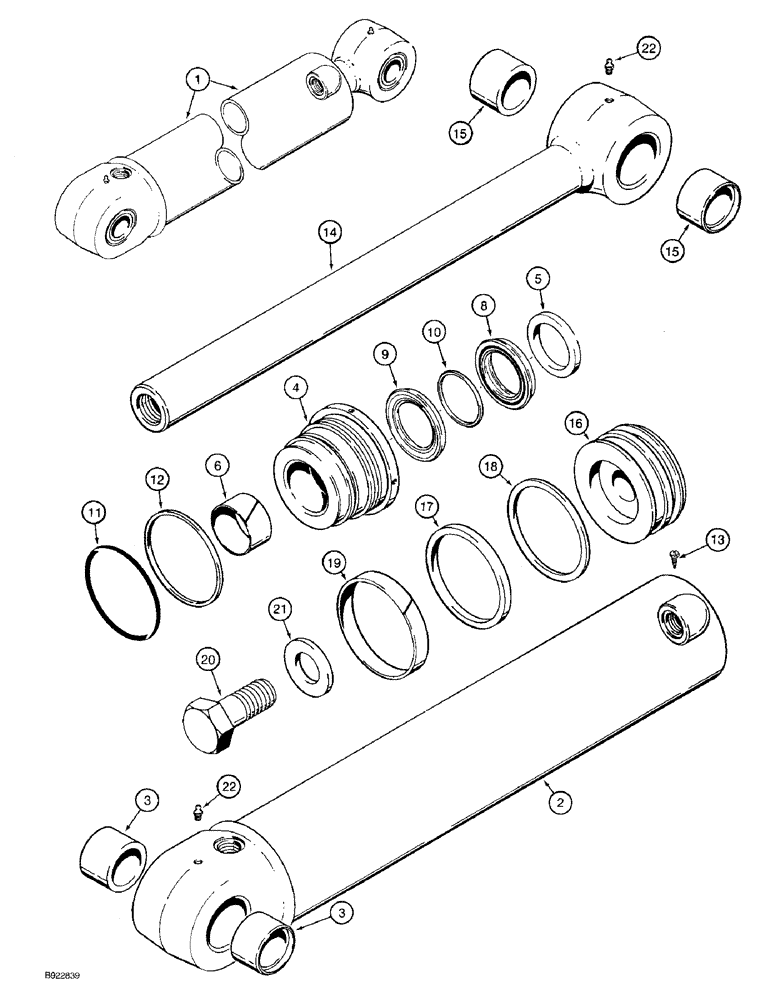

Запчасти Case 580SK (8-135A) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

1542912C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 5, 127, ID x 22-15/16 inch, 583 mm, stroke, dipper, no longer available, order 1542663C1 cylinder on Figure 8-134, Includes: Ref. 2 through 22 and P/N NSS above Ref. 4

1шт.

1

110294A1R

REMAN-HYD CYLINDER

580SK Reman for new P/N 1542912C1

1шт.

1

110294A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

1542664C1

TUBE

cylinder, order 110295A1 tube on Figure 8-135C, Includes: Ref. 3

1шт.

3

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4 through 12

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1542915C2.

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of seal kit P/N 1542915C2.

1шт.

7

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT seal, NSS, not shown, Includes: Ref. 8, 9 and 10

1шт.

Part of seal kit P/N 1542915C2.

1шт.

8

1542931C1

SEAL

rod, NSS, order 1542915C2 kit below

1шт.

9

1542930C1

SEAL

buffer, NSS, order 1542915C2 kit below

1шт.

10

1543352C1

RING back up, NSS, no longer included in kit

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1542915C2.

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N 1542915C2.

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

1542665C1

PISTON ROD

ROD ASSEMBLY piston, 2-1/2 inch, 64 mm, diameter, cylinder, Includes: Ref. 15

1шт.

15

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Rod

2шт.

16

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

cylinder

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N 1542915C2.

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Part of seal kit P/N 1542915C2.

1шт.

19

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N 1542915C2.

1шт.

20

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

hex, 1-1/2 NF x 3-1/2 inch, grade 8, replaces 28-2456

1шт.

21

G104990

WASHER

flat, 1-1/2 inch, hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

1542915C2

SEAL KIT

KIT seal, Includes: Ref. 5 - 12, 17 - 19, plus a seal and wiper not used in this application, and an instruction sheet

1шт.
