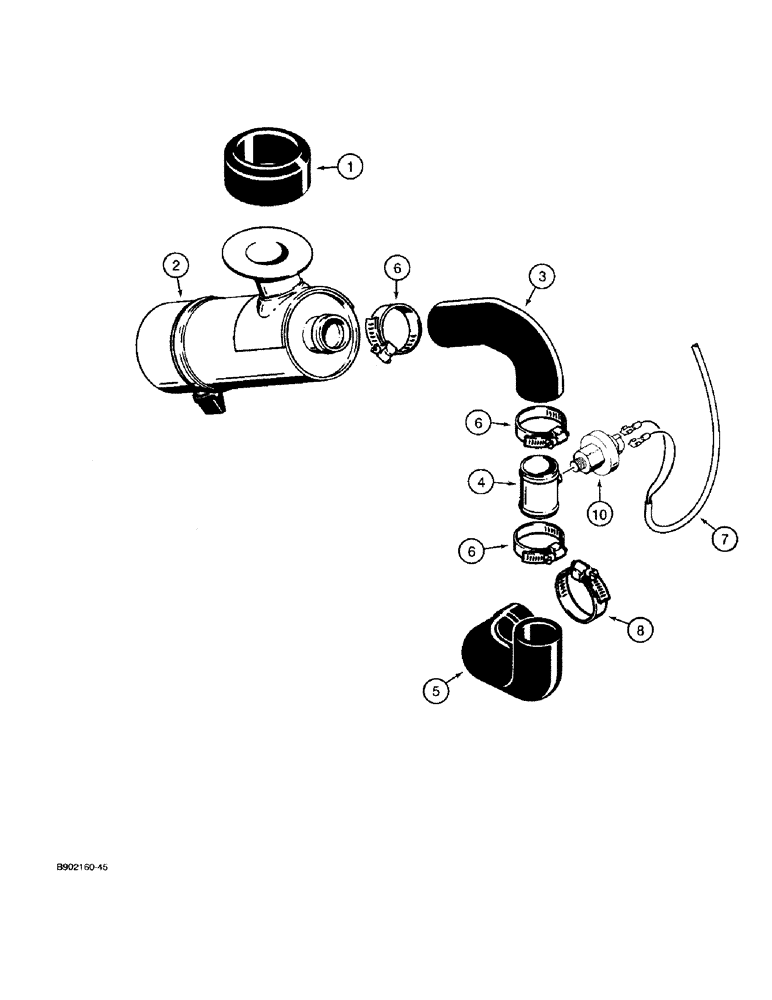

Запчасти Case 580SK (2-06) - AIR CLEANER AND AIR INTAKE PARTS MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

1

D143756

SEAL

air cleaner

1шт.

2

D143874

AIR CLEANER

CLEANER ASSEMBLY air, engine, parts list Figure 2-08

1шт.

3

D139340

INTAKE AIR HOSE,63.50 mm ID, SAE J200

Air Cleaner, Upper 63.50 mm ID, SAE J200

1шт.

4

D139343

ADAPTER

coupling, air restriction

1шт.

5

D139342

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner, Lower, At Engine, For service order D139394 hose, See item 9 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

6

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

3шт.

7

D140449

HARNESS

WIRE jumper, restriction indicator, attaches to front console wiring harness

1шт.

8

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP adj, 2-13/16 - 3-3/4 inch dia

1шт.

9

D139394

LARGE HOSE

HOSE air cleaner, lower, at engine, not shown

1шт.

10

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

REF

INSTRUCTION

See Figure 2-04 For Common Air Cleaner Attaching Parts

1шт.
