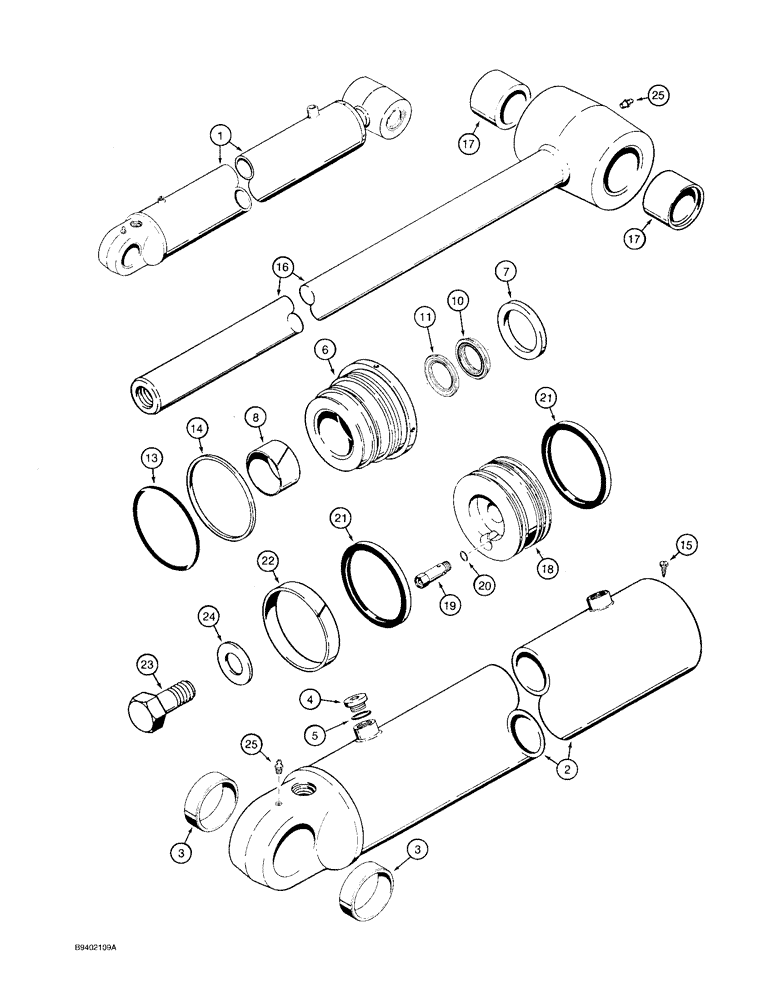

Запчасти Case 580SK (8-131C) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

1543391C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 5, 127, ID x 33-3/16 inch, 843 mm, stroke, boom, without grease seals at rod and tube eyes, Includes: Ref. 2 through 25, P/N NSS above Ref. 6 and P/N 1542877C1

1шт.

2

132519A1

TUBE,126.77mm Bore Dia

cylinder, replaces 1543390C1, Includes: Ref. 3, 4 and 5

1шт.

3

D151075

BUSHING,70.19mm ID x 80mm OD x 25mm L

tube

2шт.

4

86625138

PLUG,7/18" - 14

Includes Ref. 5 Hex Soc, 7/8"-14 ORB

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 6 through 14 and P/N 1542877C1

1шт.

6

1542918C1

CYLINDER END CAP

GLAND cylinder, has identification groove on outer lip

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of seal kit P/N 1542919C2.

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N 1542919C2.

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT seal, NSS, Includes: Ref. 10 and 11

1шт.

Part of seal kit P/N 1542919C2.

1шт.

10

1542929C1

SEAL,2.778mm OD

rod, NSS, order 1542919C2 kit below

1шт.

Part of seal kit P/N 1542919C2.

1шт.

11

1542928C1

SEAL,2.275" ID

buffer, NSS, order 1542919C2 kit below

1шт.

Part of seal kit P/N 1542919C2.

1шт.

13

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1542919C2.

1шт.

14

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N 1542919C2.

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

1542638C1

PISTON ROD

ROD piston, 2-1/4 inch, 57 mm, diameter, Includes: Ref. 17

1шт.

17

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Rod

2шт.

18

1346018C1

JACK PISTON

PISTON cylinder, used with 1958028C1 relief valve cartridge

1шт.

19

1958028C1

VALVE

ASSEMBLY relief, cartridge, internal component parts not serviced separately, Includes: Ref. 20

1шт.

21

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

piston

2шт.

Part of seal kit P/N 1542919C2.

1шт.

22

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N 1542919C2.

1шт.

23

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, 1-1/4 inch, hardened

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

1542919C2

SEAL KIT

KIT seal, Includes: Ref. 7 - 14, 21 and 22; also includes G108712 piston rod wiper not used in this application, and an instruction sheet

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external

1шт.
