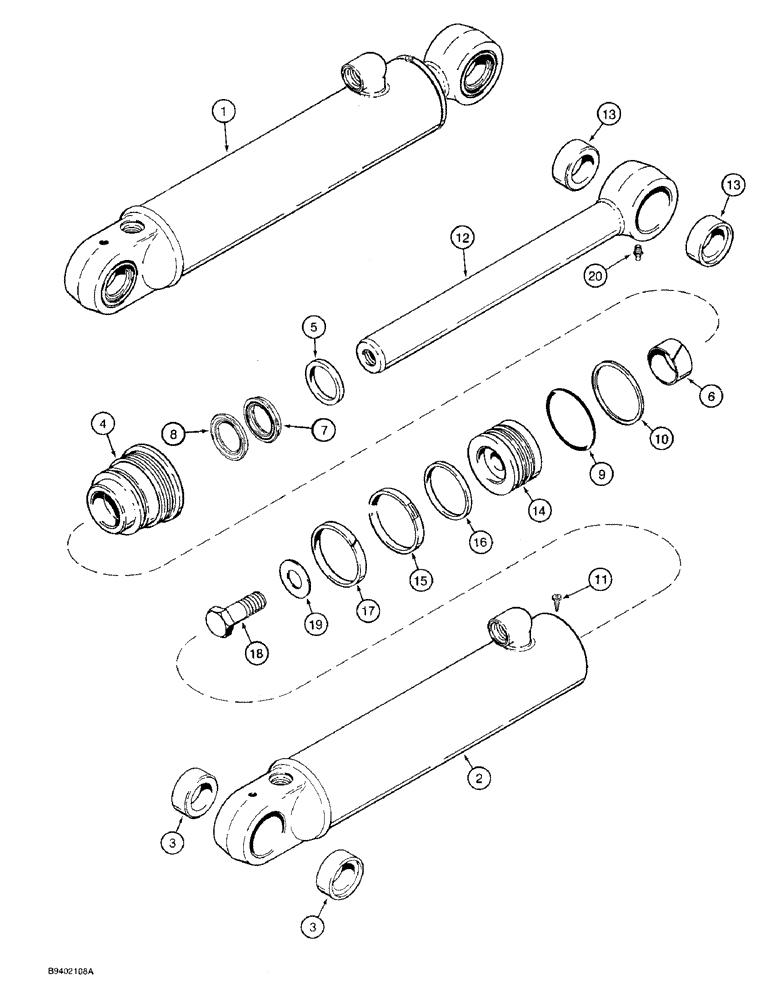

Запчасти Case 580SK (8-127A) - BACKHOE SWING CYLINDERS (08) - HYDRAULICS

1

1971702C4

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/2, 89, ID x 12 inch, 305 mm, stroke, swing, without grease seals at rod and tube eyes, if used, Includes: Ref. 2 through 20 and P/N NSS above Ref. 4

2шт.

2

1971704C2

TUBE,93.42mm Bore Dia

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4 through 10

1шт.

4

1971707C1

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543266C1.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N 1543266C1.

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 7 and 8

1шт.

Part of seal kit P/N 1543266C1.

1шт.

7

1542999C1

SEAL

rod, NSS, order 1543266C1 kit below

1шт.

Part of seal kit P/N 1543266C1.

1шт.

8

1542998C1

SEALING RING

buffer, NSS, order 1543266C1 kit below

1шт.

Part of seal kit P/N 1543266C1.

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1543266C1.

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit P/N 1543266C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1978061C3

PISTON ROD

ROD ASSEMBLY piston, 1-3/4 inch, 44 mm, diameter, Includes: Ref. 13

1шт.

13

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

piston rod

2шт.

14

G110110

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N 1543266C1.

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of seal kit P/N 1543266C1.

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of seal kit P/N 1543266C1.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

1543266C1

SEAL KIT

KIT seal, Includes: Ref. 5 - 10, 15 - 17 and an instruction sheet

1шт.
