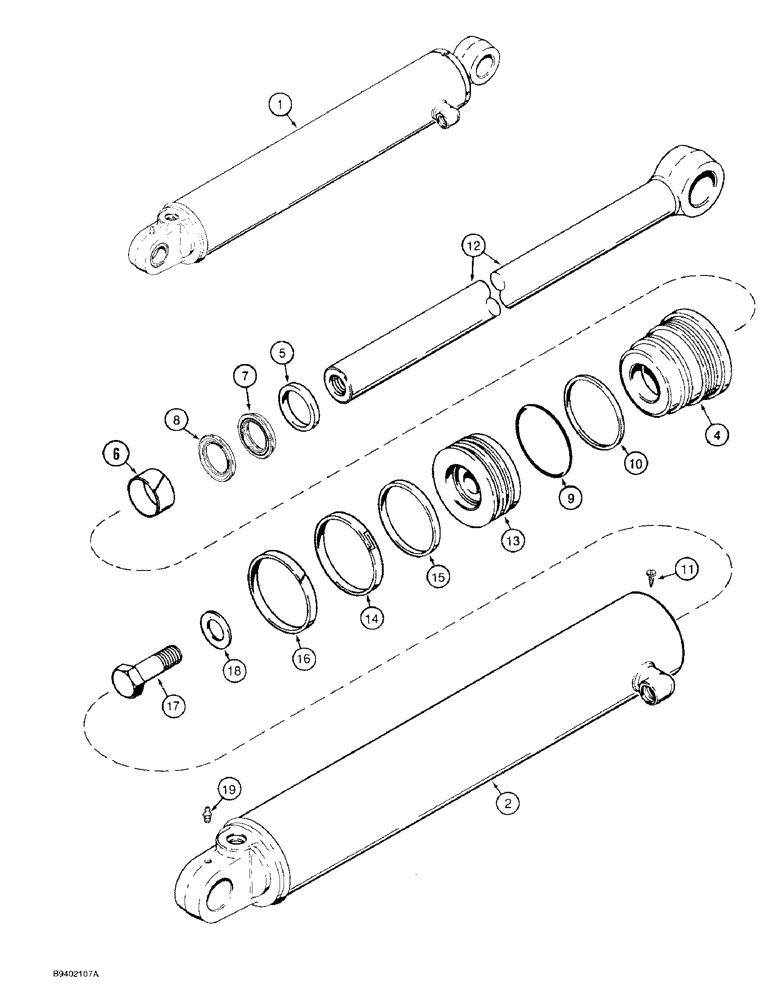

Запчасти Case 580SK (8-123A) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

110298A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4, 108, ID x 21-3/4 inch, 553 mm, stroke, stabilizer, right-hand, without tube or rod bushings, see note

1шт.

1

199720A1R

REMAN-HYD CYLINDER

Reman For New 110298A1

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

110301A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4, 108, ID x 21-3/4 inch, 553 mm, stroke, stabilizer, left-hand, without tube or rod bushings, see note, Includes: Ref. 2 through 19 and P/N NSS above Ref. 4

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for new P/N 110301A1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

110299A1

TUBE,107.82 mm ID, 780 mm Length

ASSEMBLY cylinder, right-hand

1шт.

2

110302A1

TUBE,107.82 mm ID, 780 mm Length

ASSEMBLY cylinder, left-hand

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4 through 10

1шт.

4

G110519

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N 1543275C1.

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of seal kit P/N 1543275C1.

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Incl Ref 7 and 8

1шт.

Part of seal kit P/N 1543275C1.

1шт.

7

1543001C1

SEAL

rod, NSS, order 1543275C1 kit below

1шт.

Part of seal kit P/N 1543275C1.

1шт.

8

1543000C1

SEAL

buffer, NSS, order 1543275C1 kit below

1шт.

Part of seal kit P/N 1543275C1.

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1978060C1

PISTON ROD

ROD piston, 2 inch, 51 mm, diameter

1шт.

13

G110522

PISTON

cylinder

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N 1543275C1.

1шт.

15

G110529

RING

backup, piston seal

1шт.

Part of seal kit P/N 1543275C1.

1шт.

16

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N 1543275C1.

1шт.

17

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

hex, 1 National Superfine x 3 inch, grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

1543275C1

SEAL KIT

KIT, SEALS, Incl Ref 5 - 10, 14 - 16 and an instruction sheet

1шт.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

Incl Ref 5, 6, 14, 15, 16 and P/N 1542876C1 and an instruction sheet

1шт.
