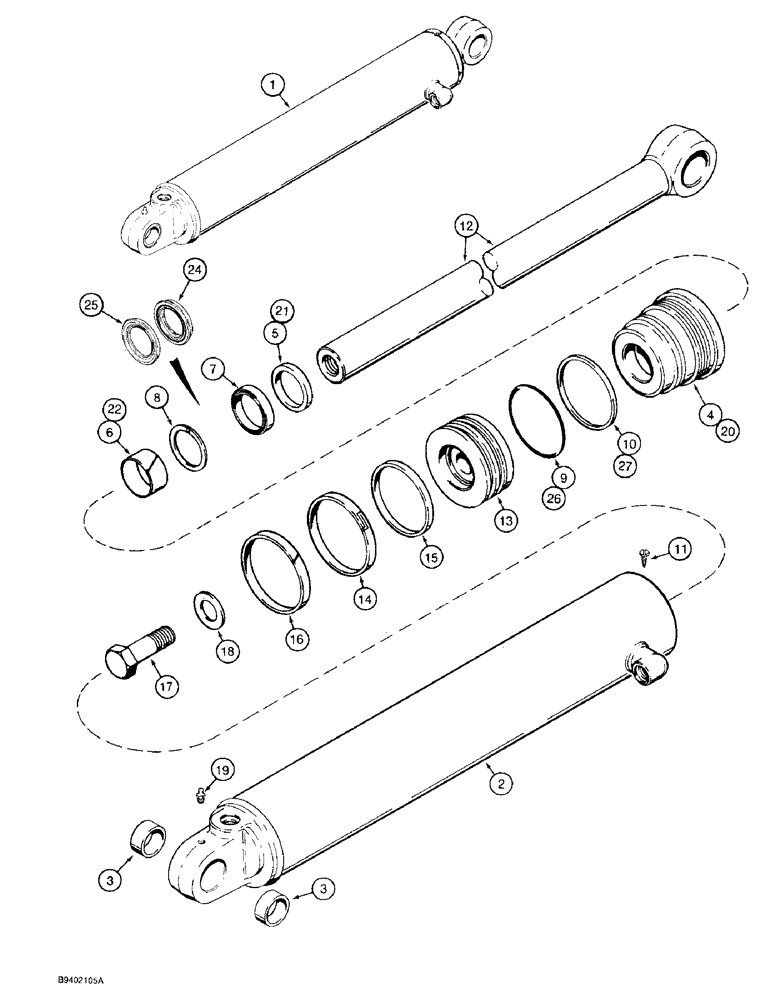

Запчасти Case 580SK (8-122) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

1986804C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4, 108, ID x 21-3/4 inch, 553 mm, stroke, stabilizer, right-hand, without rod bushings, no longer available, order 110298A1 cylinder on Figure 8-123A

1шт.

1

199720A1R

REMAN-HYD CYLINDER

Reman For New 1986804C1

1шт.

1

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

1986805C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4, 108, ID x 21-3/4 inch, 553 mm, stroke, stabilizer, left-hand, without rod bushings, no longer available, order 110301A1 cylinder on Figure 8-123A, Includes: Ref. 2 through 27, P/N G110520 and P/N NSS above Ref. 20

1шт.

1

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 1986805C1

1шт.

1

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

1986806C1

HYD TUBE

TUBE ASSEMBLY cylinder, right-hand, no longer available, order 110299A1 tube on Figure 8-123A

1шт.

2

1986807C1

HYD TUBE

TUBE ASSEMBLY cylinder, left-hand, no longer available, order 110302A1 tube on Figure 8-123A, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

1986806C1 or 1986807C1 tube

2шт.

G110520

GLAND

ASSEMBLY cylinder, no longer available, order Ref. 20, G110519 gland and 1543275C1 seal kit, Includes: Ref. 4 through 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N G110537.

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of seal kit P/N G110537.

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110537.

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110537.

1шт.

9

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110537.

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110537.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1978060C1

PISTON ROD

ROD piston, 2 inch, 51 mm, diameter

1шт.

13

G110522

PISTON

cylinder

1шт.

13

G110522

PISTON

cylinder

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G110537.

1шт.

Part of seal kit P/N 1543275C1.

1шт.

15

G110529

RING

backup, piston seal

1шт.

Part of seal kit P/N G110537.

1шт.

Part of seal kit P/N 1543275C1.

1шт.

16

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110537.

1шт.

Part of seal kit P/N 1543275C1.

1шт.

17

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

hex, 1 National Superfine x 3 inch, grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 20 through 27

1шт.

20

G110519

CYLINDER END CAP

GLAND cylinder

1шт.

21

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N 1543275C1.

1шт.

22

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of seal kit P/N 1543275C1.

1шт.

23

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 24 and 25

1шт.

Part of seal kit P/N 1543275C1.

1шт.

24

1543001C1

SEAL

rod, NSS, order 1543275C1 kit below

1шт.

Part of seal kit P/N 1543275C1.

1шт.

25

1543000C1

SEAL

buffer, NSS, order 1543275C1 kit below

1шт.

Part of seal kit P/N 1543275C1.

1шт.

26

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

Gland -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

Part of seal kit P/N 1543275C1.

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N 1543275C1.

1шт.

G110537

KIT

seal, Includes: Ref. 5 - 10 and 14 - 16, no longer available, order 1543275C1 kit below

1шт.

1543275C1

SEAL KIT

KIT, SEALS, Incl Ref 14 - 16, 21 - 27 and an instruction sheet

1шт.

84155085

SEAL KIT,Reapir, 108.0 x 50.8

KIT, SEALS, Incl Ref 14 - 16, 21 - 25 and an instruction sheet

1шт.
