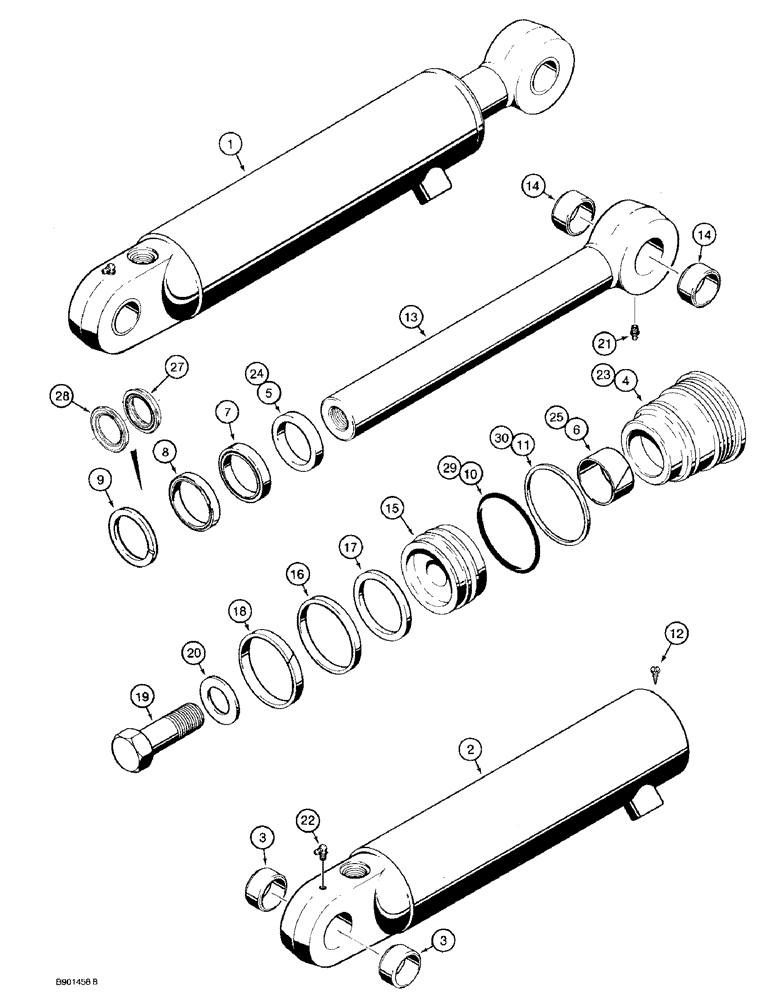

Запчасти Case 580SK (8-120) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

1346189C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3, 76, ID x 9 inch, 229 mm, stroke, clam, right-hand

1шт.

1

87454017R

REMAN-HYD CYLINDER

580SK CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE, CYLINDER ASSEMBLY, 3, 76, ID x 9 inch, 229 mm, stroke, clam, right-hand, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346190C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3, 76, ID x 9 inch, 229 mm, stroke, clam, left-hand 2 through 30, P/N G109885 and P/N NSS above Ref. 23

1шт.

2

1346191C1

TUBE

ASSEMBLY right-hand cylinder

1шт.

2

1346192C1

TUBE

ASSEMBLY left-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

1346191C1 or 1346192C1 tube

2шт.

G109885

GLAND

ASSEMBLY cylinder, no longer available, order Ref. 23, G109884 gland and 1543267C1 seal kit, Includes: Ref. 4 through 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N G110049.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110049.

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049.

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, piston rod, service option - severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049.

1шт.

10

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110049.

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110049.

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

13

1346195C1

PISTON ROD

ROD ASSEMBLY piston, 44 mm diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

hex, 1 NS x 2-1/2 inch, grade 8, replaces 28-1640

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1 inch, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 23 through 30

1шт.

23

G109884

CYLINDER END CAP

GLAND cylinder

1шт.

24

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543267C1.

1шт.

25

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N 1543267C1.

1шт.

26

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 27 and 28

1шт.

Part of seal kit P/N 1543267C1.

1шт.

27

1542999C1

SEAL

rod, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

28

1542998C1

SEALING RING

buffer, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

29

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543267C1.

1шт.

30

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543267C1.

1шт.

G110049

KIT

seal, Includes: Ref. 5 - 7, 9 - 11 and 16 - 18, no longer available, order 1543267C1 kit below

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 16 - 18, 24 - 30 and an instruction sheet

1шт.
