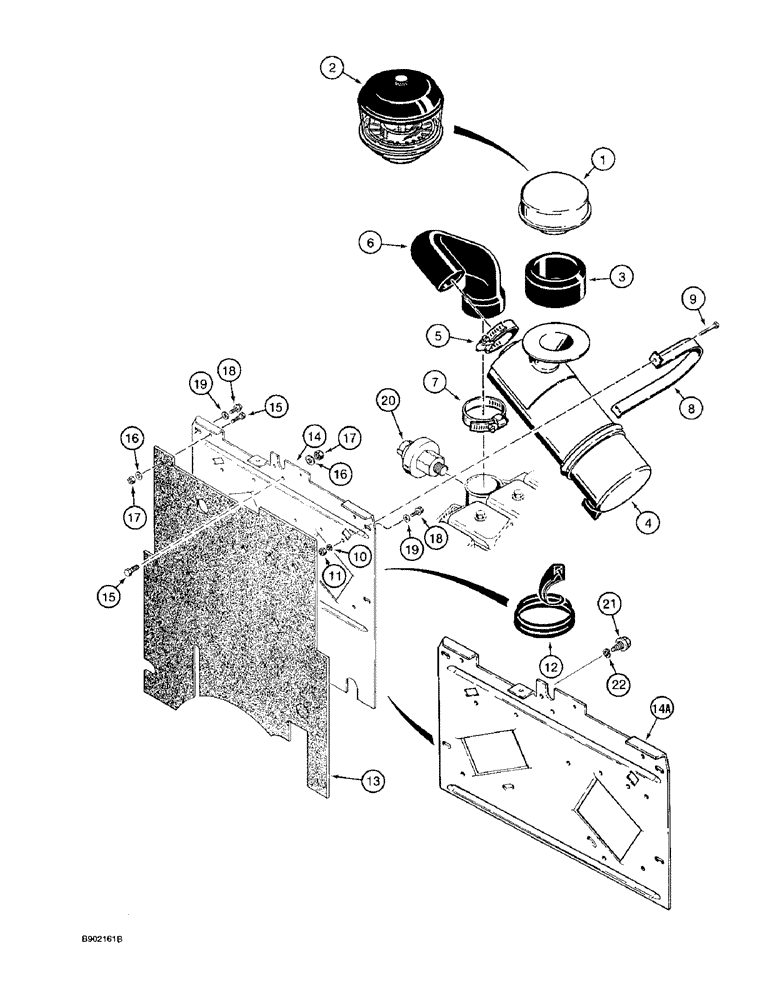

Запчасти Case 580SK (2-04) - AIR CLEANER AND AIR INTAKE PARTS MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

1

A61277

CAP

air cleaner, standard, if used

1шт.

2

A24391

AIR CLEANER

PRECLEANER ASSEMBLY air, if used, parts list Figure 2-10

1шт.

3

D143756

SEAL

air cleaner

1шт.

4

D143874

AIR CLEANER

CLEANER ASSEMBLY air, engine, parts list Figure 2-08

1шт.

5

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj., Hose to air cleaner #44, 2.31/3.25 Type F Worm

1шт.

6

D135793

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

7

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP adj, 2-13/16 - 3-3/4 inch dia, hose to engine

1шт.

8

D129158

STRAP

air cleaner

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

1шт.

12

D43403

LINING

SEAL, 5 inch, 127 mm, long, cut from bulk seal, see Parts Substitution List for bulk seal options

2шт.

13

D150514

CURTAIN

PAD heat and noise protection

1шт.

14

D145021

BRACKET

air cleaner mounting, no longer available, order D150862 bracket

1шт.

14a

D150862

BRACKET

air cleaner mounting, attaches to chassis upright

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

3шт.

16

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

17

231-1445

NUT,5/16"-18, GB

NUT light hex, self-locking, 5/16 inch NC

3шт.

18

281-44912

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

SCREW self-tapping, hex washer, 3/8 NC x 3/4 inch, if used

4шт.

18a

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW self-tapping, hex, 3/8 NC x 1 inch, if used, not shown

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

20

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

21

112865A1

SCREW

special, 5/16 x 13/16 inch

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
