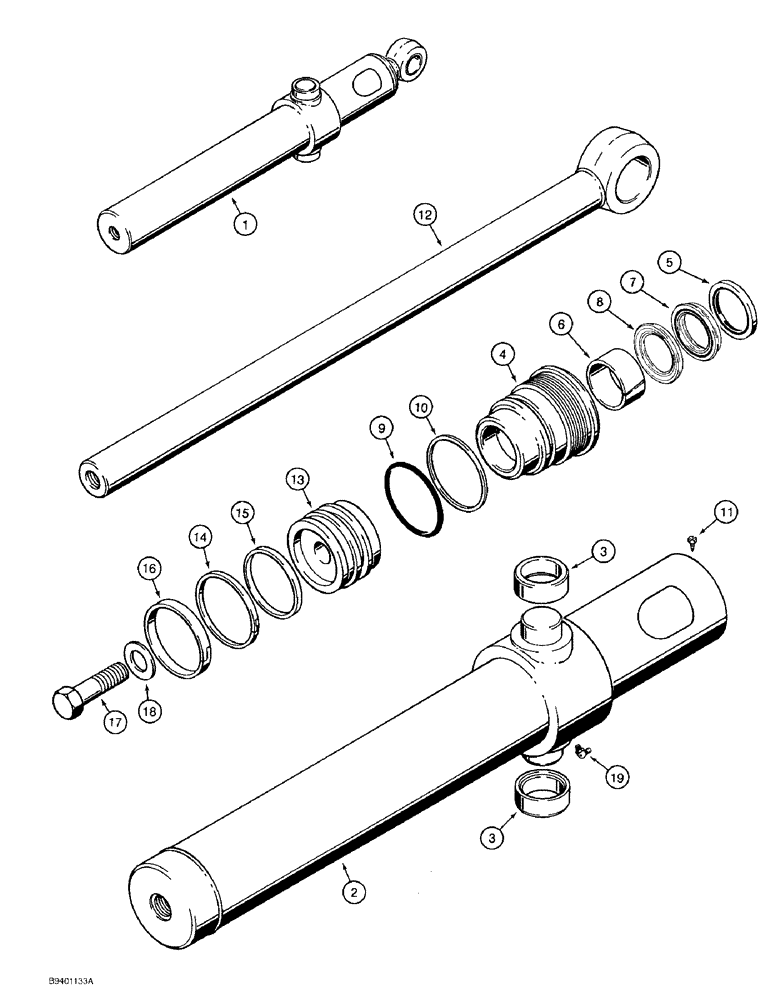

Запчасти Case 580SK (8-119A) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

110306A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 76 mm ID x 522 mm stroke, bucket, right-hand, includes bushings in cylinder tube and without bushings at rod eye

1шт.

1

110309A1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 76 mm ID x 522 mm stroke, bucket, left-hand, includes bushings in cylinder tube and without bushings at rod eye, Includes: Ref. 2 through 19, P/N NSS above Ref. 4 and P/N 1542874C1

1шт.

2

G108508

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY cylinder, right-hand

1шт.

2

G108509

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY cylinder, left-hand, Includes: Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

G108508 or G108509 tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4 through 10

1шт.

4

G109881

GLAND

cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543256C1.

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N 1543256C1.

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 1543256C1 kit below, Incl Ref 7 and 8

1шт.

7

1542997C1

SEALING RING

rod, NSS, order 1543256C1 kit below

1шт.

Part of seal kit P/N 1543256C1.

1шт.

8

1542996C1

SEAL

buffer, NSS, order 1543256C1 kit below

1шт.

Part of seal kit P/N 1543256C1.

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543256C1.

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543256C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

110307A1

PISTON ROD

ROD piston, 38 mm diameter, without bushings in eye

1шт.

13

G108518

PISTON

cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N 1543256C1.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N 1543256C1.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit P/N 1543256C1.

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 5 - 10, 14 - 16 and an instruction sheet

1шт.
