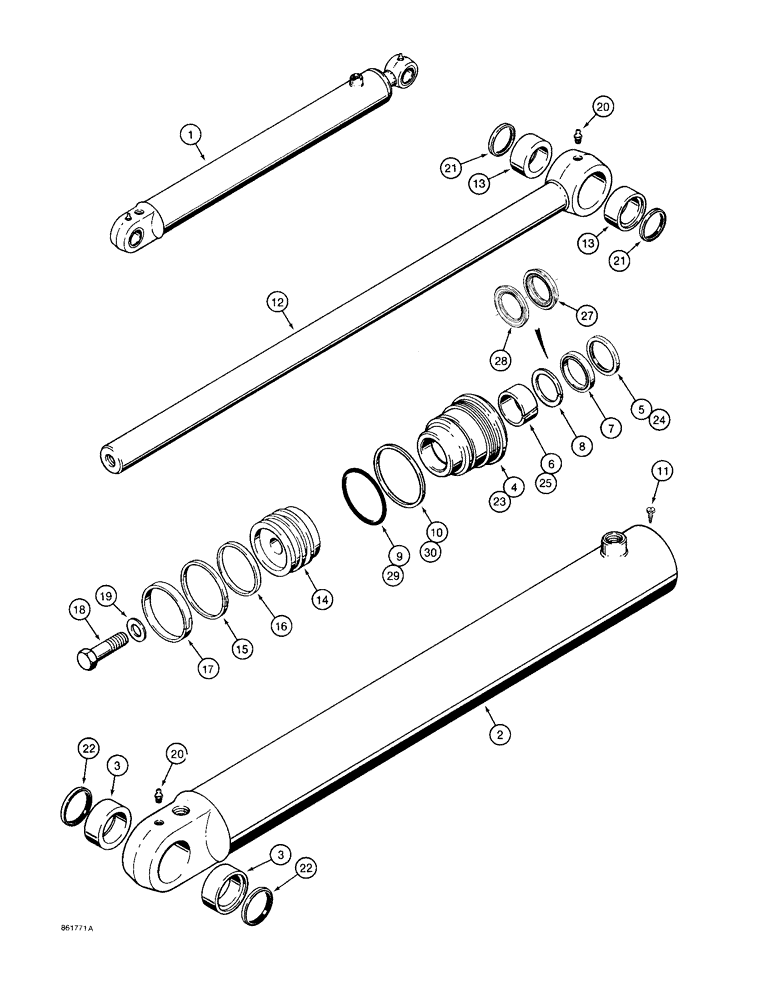

Запчасти Case 580SK (8-116) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

1340976C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/4, 82, ID x 29 inch, 740 mm, stroke, lift, right-hand and left-hand, with grease seals, Ref. 21 and 22, at rod and tube eyes, no longer available, order 110303A1 cylinder on Figure 8-117C, Includes: Ref. 1-30, P/N 1980322C1, P/N NSS

2шт.

2

1340977C1

TUBE

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

tube

2шт.

1980322C1

GLAND

ASSEMBLY cylinder, no longer available, order Ref. 23, 1980321C2 gland and 1543260C1 seal kit, Includes: Ref. 4 through 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110053.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110053.

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110053.

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110053.

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland -233, 70 Duro, 2.859" ID x .139" Thk

1шт.

Part of seal kit P/N G110053.

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110053.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1341852C2

PISTON ROD

ROD ASSEMBLY piston, 1-3/4 inch, 44 mm, diameter, cylinder, Includes: Ref. 13

1шт.

13

D144895

BUSHING

- piston rod

2шт.

14

G108184

PISTON

cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G110053.

1шт.

Part of seal kit P/N 1543260C1.

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Part of seal kit P/N G110053.

1шт.

Part of seal kit P/N 1543260C1.

1шт.

17

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110053.

1шт.

Part of seal kit P/N 1543260C1.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

21

D127833

SEAL

rod eye

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

tube eye, cylinder

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 23 through 30

1шт.

23

1980321C2

CYLINDER END CAP

GLAND cylinder

1шт.

24

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N 1543260C1.

1шт.

25

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N 1543260C1.

1шт.

26

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown

1шт.

Part of seal kit P/N 1543260C1.

1шт.

27

1542999C1

SEAL

rod, NSS, order 1543260C1 kit below

1шт.

Part of seal kit P/N 1543260C1.

1шт.

28

1542998C1

SEALING RING

buffer, NSS, order 1543260C1 kit below

1шт.

Part of seal kit P/N 1543260C1.

1шт.

29

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland -233, 70 Duro, 2.859" ID x .139" Thk

1шт.

Part of seal kit P/N 1543260C1.

1шт.

30

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N 1543260C1.

1шт.

G110053

GASKET KIT

KIT seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1543260C1 kit below

1шт.

1543260C1

SEAL KIT

KIT, SEALS, Incl Ref 15 - 17, 24 - 30 and an instruction sheet

1шт.
