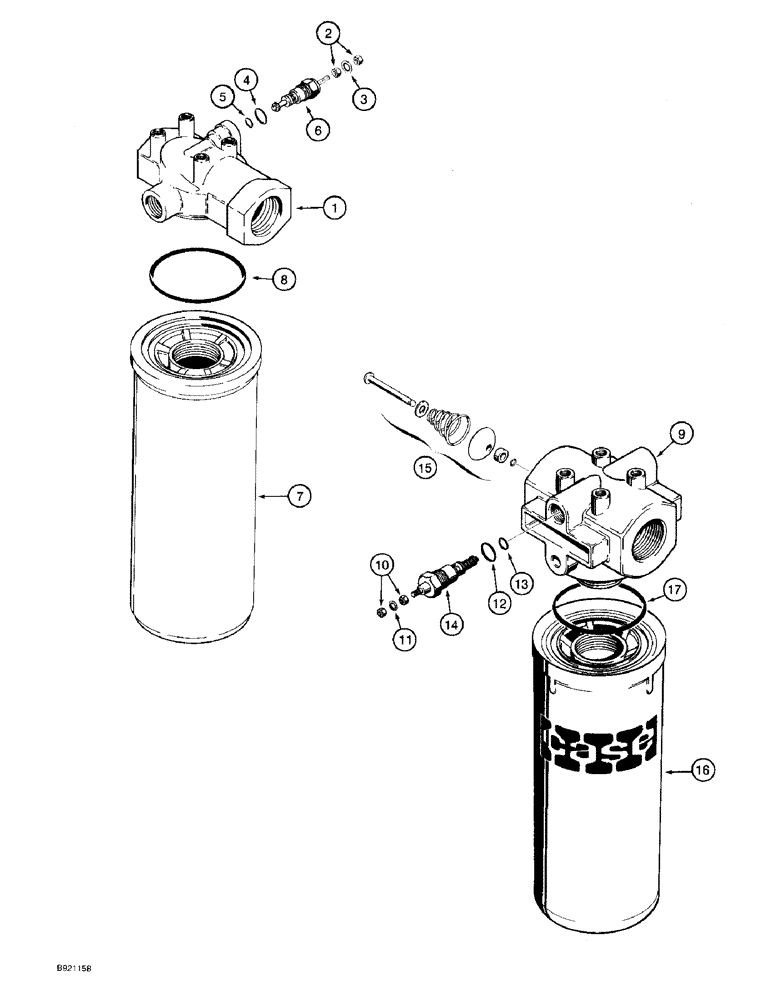

Запчасти Case 580SK (8-114) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D148151

FILTER

ASSEMBLY hydraulic oil, no longer available, order D132933 filter assembly

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, internal bypass valve not serviceable, Includes: Ref. 2 through 8, P/N N6755, P/N N6941 and P/N 1346028C1

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY restriction, electric, Includes: Ref. 2 through 6 and P/N N6941

1шт.

N6941

KIT

restriction indicator repair, order Ref. 2 - 5, Includes: Ref. 2 through 5

1шт.

2

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

1346028C1

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY filter replacement, replaces N9025, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head, N9025 element -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

8

1986552C2

O-RING,2.484mm ID x 1.39mm Width

2-31/64 ID x 9/64 inch, filter to head, 1346028C1 element

1шт.

D132933

FILTER ASSY

FILTER ASSEMBLY hydraulic oil, if used

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD filter, Includes: Ref. 10 through 17, P/N N6755 and P/N N6941

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY restriction, electric, Includes: Ref. 10 through 14 and P/N N6941

1шт.

N6941

KIT

restriction indicator repair, order Ref. 10-13, Includes: Ref. 10 through 13

1шт.

10

129-667

NUT,#10-32, LH

2шт.

11

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner

1шт.

14

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

1346028C1

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY filter, replaces N9025, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

17

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head, N9025 element -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

17

1986552C2

O-RING,2.484mm ID x 1.39mm Width

2-31/64 ID x 9/64 inch, filter to head, 1346028C1 element

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
