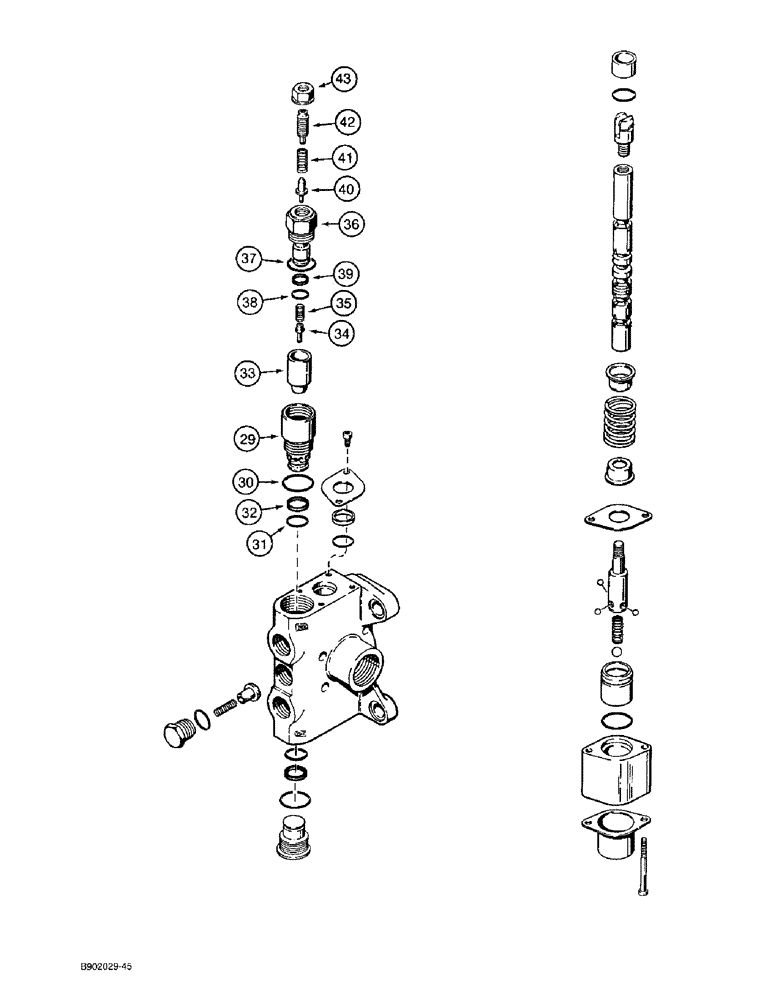

Запчасти Case 580SK (8-112) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS

N14269

VALVE

SECTION lift, Includes: Ref. 29 through 43 and P/N N14267

1шт.

N14267

VALVE

MAIN RELIEF VALVE ASSEMBLY section, Includes: Ref. 29 through 43

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING main relief valve

1шт.

30

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Housing, outer, large

1шт.

31

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Small

1шт.

32

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLUNGER piston

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING plunger, small

1шт.

36

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

37

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Outer, Large

1шт.

38

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Small

1шт.

39

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup, small O-ring

1шт.

40

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

41

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

43

NSS

NOT SOLD SEPARAT

NUT lock, special

1шт.
