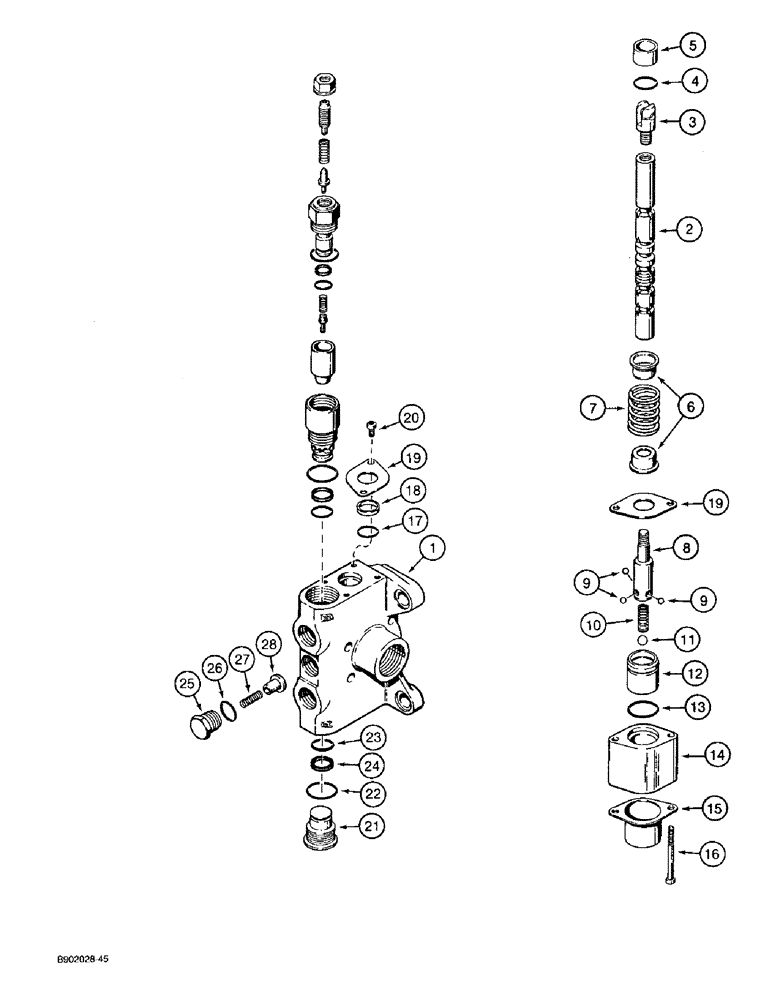

Запчасти Case 580SK (8-110) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
N14269
VALVE
SECTION ASSEMBLY lift, Includes: Ref. 1 through 28, P/N N14270, P/N N14288, P/N N14271 and P/N N14266
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING lift section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL lift section
1шт.
3
N14264
EYE
spool
1шт.
N14270
KIT
spool, cap end, Includes: Ref. 4 through 16
1шт.
4
N14657
SEAL
bushing, spool eye end
1шт.
5
NSS
NOT SOLD SEPARAT
BUSHING spool
1шт.
6
NSS
NOT SOLD SEPARAT
SEAT spring
2шт.
7
NSS
NOT SOLD SEPARAT
SPRING centering, spool
1шт.
8
NSS
NOT SOLD SEPARAT
RETAINER detent, spool cap end
1шт.
9
N14654
BALL
small
3шт.
10
N14656
SPRING
detent, small
1шт.
11
N14655
BALL
large
1шт.
12
NSS
NOT SOLD SEPARAT
SLEEVE detent
1шт.
13
N14658
SEAL
detent housing
1шт.
14
NSS
NOT SOLD SEPARAT
HOUSING detent, spool cap end
1шт.
15
NSS
NOT SOLD SEPARAT
CAP valve spool
1шт.
16
864-5055
HEX SOC SCREW,M5 x 55mm, Cl 8.8
BOLT hex socket, 5 - 8 x 55 mm, cap retaining
2шт.
N14288
KIT
wiper, spool, upper, only one O-ring and wiper used in this application, Includes: Ref. 17 and 18
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING spool
2шт.
18
NSS
NOT SOLD SEPARAT
WIPER spool
2шт.
19
N14659
RETAINER
plate, spool wiper
2шт.
20
864-5008
BOLT hex socket, 5 - 8 x 8 mm
2шт.
N14271
PLUG
ASSEMBLY valve, lower, Includes: Ref. 21 through 24
1шт.
21
NSS
NOT SOLD SEPARAT
PLUG valve
1шт.
22
238-5020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro
-020, 70 Duro, .864" ID x .070" Thk, Plug, outer, large
1шт.
23
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
-015, 70 Duro, .551" ID x .070" Thk, Small
1шт.
24
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
backup, small O-ring
1шт.
N14266
VALVE
ASSEMBLY load check valve, section, Includes: Ref. 25 through 28
1шт.
25
NSS
NOT SOLD SEPARAT
PLUG load check valve
1шт.
26
N14653
O-RING
plug
1шт.
27
N14652
SPRING
load check valve
1шт.
28
NSS
NOT SOLD SEPARAT
POPPET load check
1шт.
Выбрано товаров: 33
