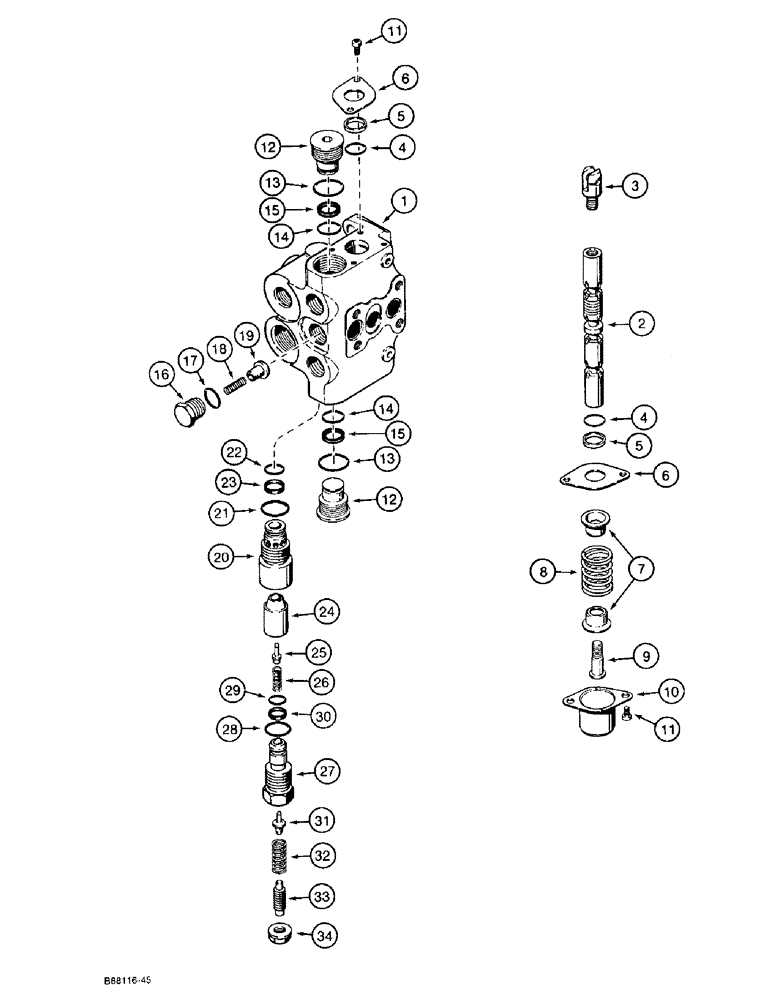

Запчасти Case 580SK (8-106) - THREE-POINT HITCH CONTROL VALVE, INLET-OUTLET AND IMPLEMENT SECTION (08) - HYDRAULICS

N14263

VALVE

SECTION ASSEMBLY inlet-outlet and implement, Includes: Ref. 1 through 34, P/N N14288, P/N N14265, P/N N14271, P/N 14266 and P/N N14267

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING inlet-outlet and implement section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL inlet-outlet and implement section

1шт.

3

N14264

EYE

spool

1шт.

N14288

KIT

wiper, spool, Includes: Ref.4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING spool

2шт.

5

NSS

NOT SOLD SEPARAT

WIPER spool

2шт.

6

NSS

NOT SOLD SEPARAT

RETAINER plate, spool wiper

2шт.

N14265

KIT

spool, cap end, Includes: Ref. 7 through 10

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING centering, spool

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT spool, cap end

1шт.

10

NSS

NOT SOLD SEPARAT

CAP valve spool

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT cap and retainer plate

4шт.

N14271

PLUG

ASSEMBLY valve, upper and lower, if used, Includes: Ref. 12 through 15

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

13

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Plug, outer, large

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Small

1шт.

15

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

N14266

VALVE

ASSEMBLY load check valve, section, Includes: Ref. 16 through 19

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

N14653

O-RING

plug

1шт.

18

N14652

SPRING

load check valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

N14267

VALVE

ASSEMBLY main relief section, Includes: Ref. 20 through 34

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING main relief valve

1шт.

21

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Housing, outer, large

1шт.

22

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

23

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

PLUNGER piston

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING plunger, small

1шт.

27

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

28

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Outer

1шт.

29

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

30

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup, small O-ring

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

33

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

34

NSS

NOT SOLD SEPARAT

NUT lock, special

1шт.
