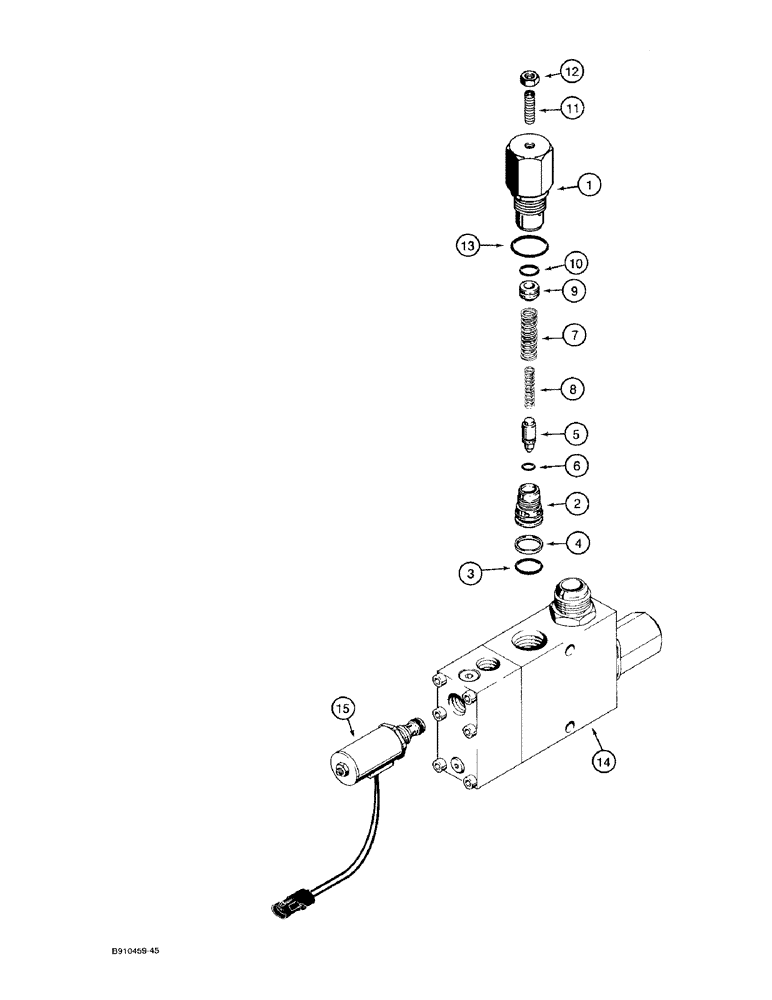

Запчасти Case 580SK (8-102) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS

D150443

VALVE

ASSEMBLY solenoid, backhoe boom lock, includes two 321-6046 warning decals, see Figure 9-170 for decal, Ref. 25, Includes: Ref. 1 through 15, P/N G110467, P/N D150781 and P/N D150810

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF ASSEMBLY circuit, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1 through 12

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Relief valve seat (Replaces G107675) -018, 90 Duro, .739" ID x .070" Thk

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY solenoid

1шт.

15

D150809

SOLENOID

relief, 12 volt, with connector

1шт.

D150781

REPAIR KIT

KIT, REPAIR, Incl. (3) springs, (1) ball, (1) poppet, and (1) plug which are not serviced separately and D150810 seal kit, not shown, see your 580 Super K Service Manual for location of seals and springs, Incl.: P/N D150810

1шт.

D150810

SEAL

KIT seal, includes nine O-rings and two backup rings which are not serviced separately, not shown

1шт.

G110077

KIT

service for G110467 circuit relief valve, includes G110078 circuit relief valve assembly, Ref. 1 through 13 and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
