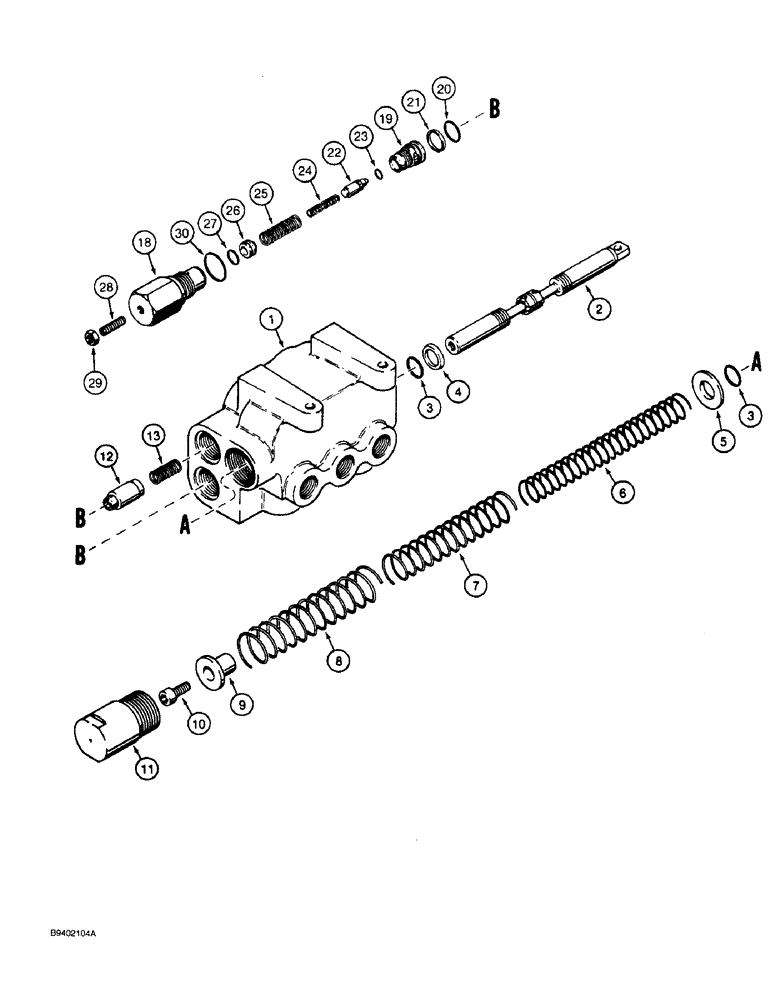

Запчасти Case 580SK (8-101A) - BACKHOE SWING SEQUENCE VALVE (08) - HYDRAULICS

1346067C1

VALVE

ASSEMBLY backhoe swing sequence, used with D150889 tube for six spool backhoe valves or D150896 tube for seven spool backhoe valves, see Figure 8-026 for tubes, Includes: Ref. 1 through 30 and P/N G110467

1шт.

The new valve has only 3 ports on the side instead of 4 as shown. the drain tube is installed on the end under the spool on the replacement valve. instrall a 218-5062 straight fitting and run the new tube under the back hoe valve

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING backhoe swing sequence valve

1шт.

Ref. 1 valve ass'y. doesn't have the 4th hole on the side facing you in this picture. Please see Figure 8-026 for notes on how to install the new tubeline.

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL backhoe swing sequence valve

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

5

G108896

O-RING

O-ring

1шт.

6

G108895

SPRING

inner

1шт.

7

G108892

SPRING

center

1шт.

8

G108891

SPRING

outer

1шт.

9

G108893

SEAT

spring

1шт.

10

61-33812

HEX SOC SCREW,3/8"-16 x 3/4"

BOLT hex socket head, 3/8 NC x 3/4 inch

1шт.

11

G108894

CAP

spool end

1шт.

12

G108017

SPOOL

shuttle, orifice

1шт.

13

G107174

SPRING

shuttle spool

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, 4400 psi, spool capped end, used in production, order G110077 kit for service, Includes: Ref. 18 through 30

2шт.

18

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat (Replaces G107675) -018, 90 Duro, .739" ID x .070" Thk

1шт.

21

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

28

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

29

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G110077

KIT

service for G110467 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve, Ref. 18-30, which is the same as G110467 except with a different pressure setting

1шт.
