Запчасти Case 580SK (8-098) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS

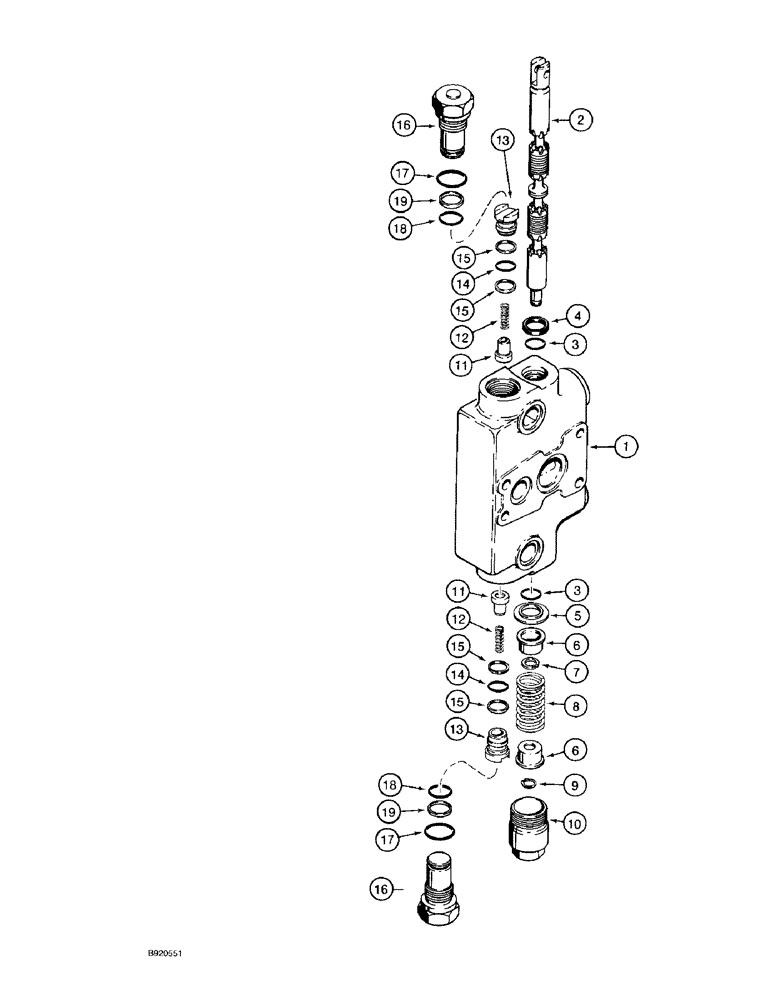

Схема запчастей Case 580SK - (8-098) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS
17
17
14
12
7
3
15
18
16
16
5
9
2
6
14
15
8
1
18
13
11
13
10
6
3
11
15
15
12
19
19
4

Артикул

Название

Примечание

Количество

1986584C3

ELEMENT

SECTION ASSEMBLY dipper extension, Includes: Ref. 1 through 19, P/N 1346219C2 and P/N G33122

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING dipper extension section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, dipper extension section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

1шт.

8

1994596C1

SPRING

centering, spool

1шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

spool end

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 11 through 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

13

1343708C1

PLUG

load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G33122

PLUG,ORB

ASSEMBLY relief, Includes: Ref. 16 through 19

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

Part of seal kit P/N 1346105C1.

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Plug -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 14, 15 and 17 - 19, plus additional O-rings not required for this application

1шт.

Выбрано товаров: 30
