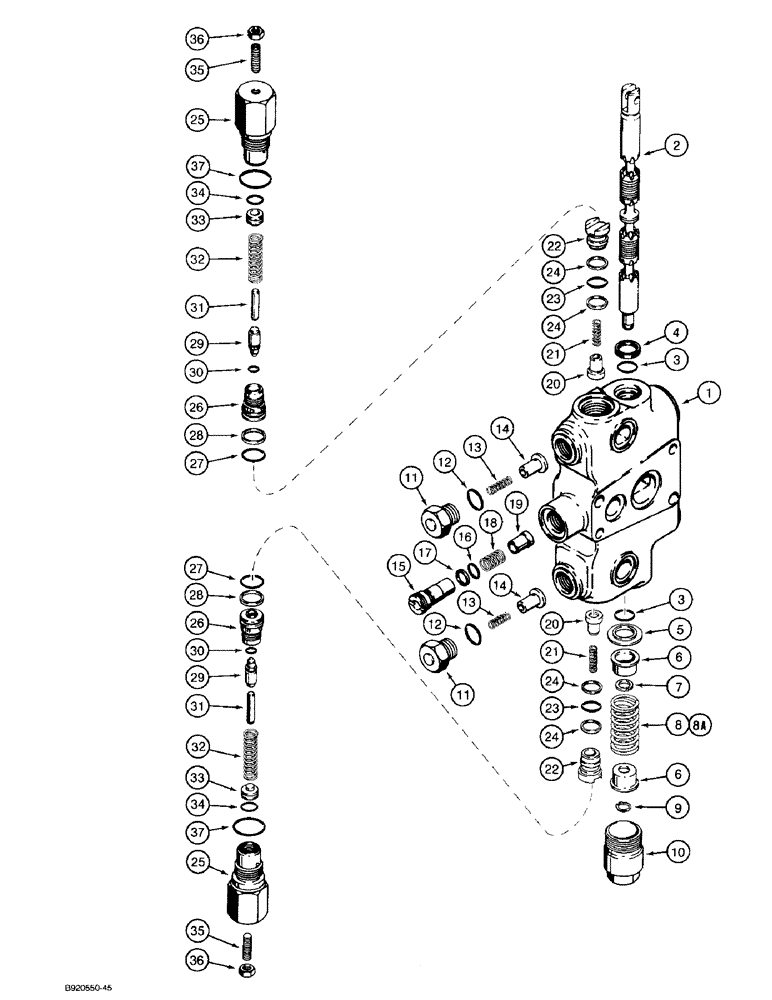

Запчасти Case 580SK (8-094) - BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

1986833C2

VALVE

SECTION ASSEMBLY swing, with heavy swing spring, Ref. 8, used in 1986801C2, 1986801C3, 1986803C2 or 1986803C3 foot swing control valves, with circuit relief and anticavitation valves

1шт.

1986834C2

VALVE

SECTION ASSEMBLY swing, uses Ref. 8A spring, used in 1986800C2, 1986800C3, 1986802C2 or 1986802C3 hand swing control valves, with circuit relief and anticavitation valves, Includes: Ref. 1 through 37, P/N 1346221C1, P/N 1346222C1 and P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

1шт.

8

1986722C1

SPRING

centering, spool, black, 2-1/4 inch free length, used in 1986833C2 swing section

1шт.

8a

1994596C1

SPRING

centering, spool, purple, 2-15/16 inch free length, used in 1986834C2 swing section

1шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

spool end

1шт.

1346221C1

VALVE

ASSEMBLY anticavitation, order Ref. 11 - 14, Includes: Ref. 11 through 14

2шт.

11

G34937

PLUG

anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

1346222C1

VALVE

ASSEMBLY check, Includes: Ref. 15, 16 and 17

1шт.

15

G109964

HOUSING

valve check

1шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

17

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup, O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

18

G109971

SPRING

valve check

1шт.

19

1978068C1

VALVE POPPET

POPPET valve check

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 20 through 24

2шт.

20

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

21

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

22

1343708C1

PLUG

load check

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

24

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G110253

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, swing section, used in production, order G109448 kit for service, see below, Includes: Ref. 25 through 37

2шт.

25

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

31

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

35

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

36

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

G109448

KIT

service for G110253 circuit relief valve, kit includes an instruction sheet and G109446 circuit relief valve, Ref. 25 - 37, which is the same as G110253 except with a different pressure setting

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 12, 17, 23, 24, 27, 28 and 37, plus additional O-rings not required for this application

1шт.
