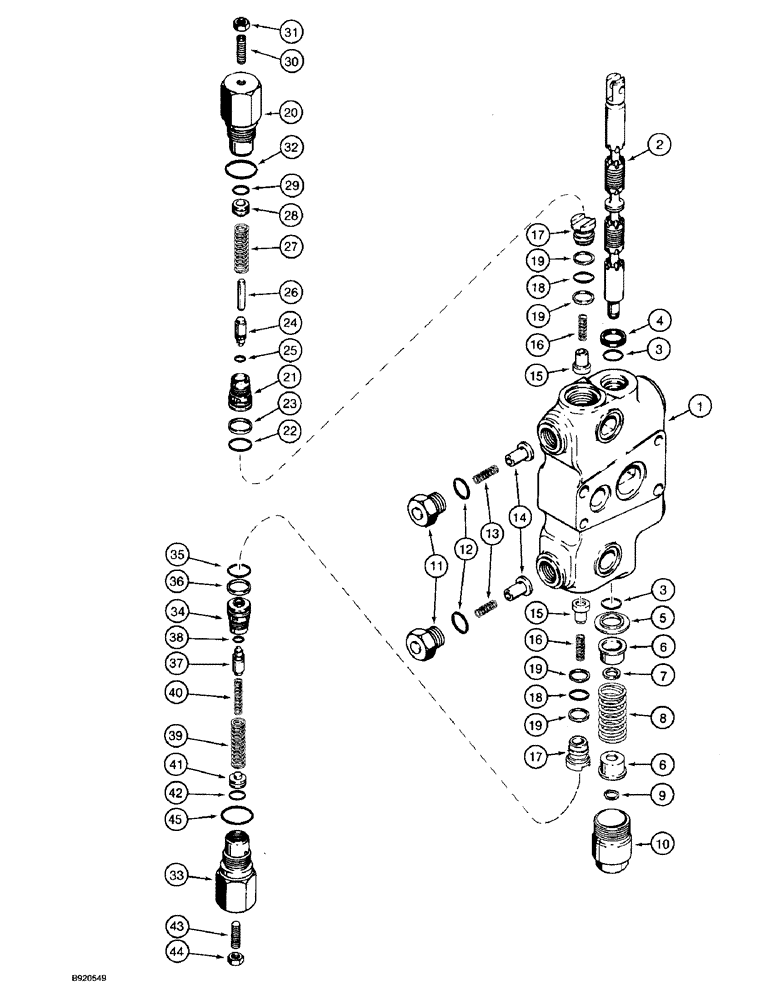

Запчасти Case 580SK (8-090) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

1986832C3

VALVE

SECTION ASSEMBLY boom, with circuit relief valves and anticavitation valves, replaces 1986832C2, Includes: Ref. 1 through 18, P/N 1346221C1 and P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING boom section, may have one or two anticavitation ports

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL boom section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

1шт.

8

1994596C1

SPRING

centering, spool

1шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

spool end

1шт.

1346221C1

VALVE

ASSEMBLY anticavitation, order Ref. 11 - 14, Includes: Ref. 11 through 14

1-2шт.

The original section body used two of these valves. This was later changed to one. If the old two-valve style came off the machine, it can be replaced with the one-valve style.

1шт.

11

G34937

PLUG

anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 15 through 19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

17

1343708C1

PLUG

load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G110253

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, upper, boom section, used in production, order G109448 kit for service, see below, Includes: Ref. 20 through 32

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

26

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

G109448

KIT

service for G110253 circuit relief valve, kit includes an instruction sheet and G109446 circuit relief valve, Ref. 20 - 32, which is the same as G110253 except with a different pressure setting

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, lower, boom section, used in production, order G110077 kit for service, see below, Includes: Ref. 33 through 45

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

36

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

43

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

44

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

G110077

KIT

service for G110467 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve, Ref. 33 - 45, which is the same as G110467 except with a different pressure setting

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 12, 18, 19, 22, 23, 32, 35, 36 and 45, plus additional O-rings not required for this application

1шт.
