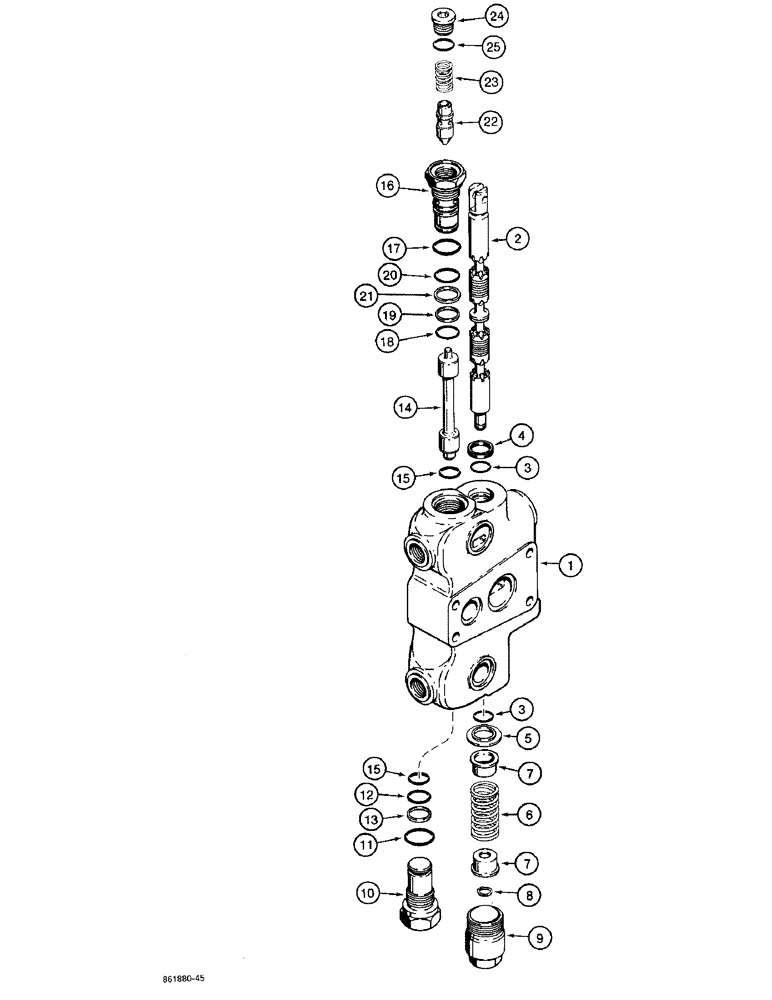

Запчасти Case 580SK (8-088) - BACKHOE CONTROL VALVE, LEFT-HAND AND RIGHT-HAND STABILIZER SECTIONS (08) - HYDRAULICS

G109567

ELEMENT

SECTION ASSEMBLY left-hand and right-hand stabilizer, with lock check, Includes: Ref. 1 through 25, G109627 and P/N NSS above Ref. 11

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, left-hand and right-hand stabilizer sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, left-hand and right-hand stabilizer sections

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346106C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346106C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G34463

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

spool end

1шт.

G33122

PLUG,ORB

ASSEMBLY relief, Includes: Ref. 10 through 13

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of seal kit P/N 1346106C1.

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346106C1.

1шт.

13

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

14

1986754C1

SPOOL

shuttle, lock check

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Shuttle spool -018, 90 Duro, .739" ID x .070" Thk

2шт.

Part of seal kit P/N 1346106C1.

1шт.

G109627

PLUG

ASSEMBLY lock check, Includes: Ref. 16 through 25

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT lock check body

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Seat plug end

1шт.

Part of seal kit P/N 1346106C1.

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat lock check end -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346106C1.

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit P/N 1346106C1.

1шт.

20

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Seat, center -019, 90 Duro, .801" ID x .070" Thk

1шт.

Part of seal kit P/N 1346106C1.

1шт.

21

G110468

RING

backup, center O-ring

1шт.

Part of seal kit P/N 1346106C1.

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET lock check

1шт.

23

G109630

SPRING

lock check

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 25 Hex Soc, 3/4"-16 ORB

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1346106C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 11, 12, 15 and 17 - 21, plus additional O-rings not required for this application

1шт.
