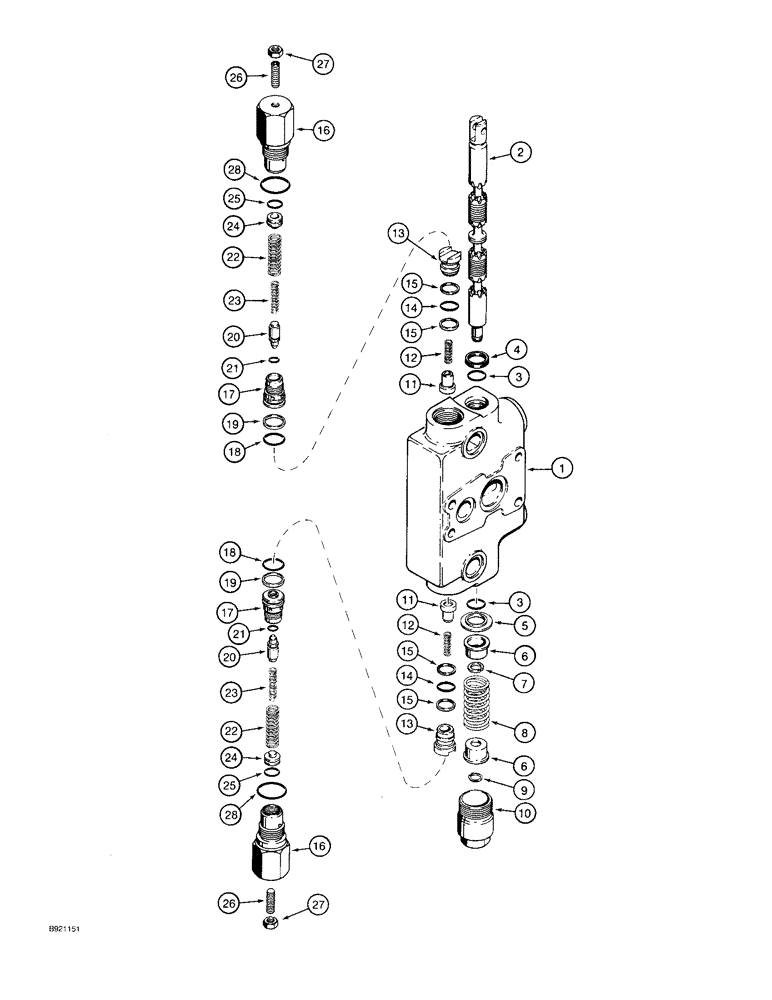

Запчасти Case 580SK (8-086) - BACKHOE CONTROL VALVE, BUCKET AND DIPPER SECTIONS (08) - HYDRAULICS

1986504C4

VALVE

SECTION ASSEMBLY bucket and dipper, with circuit relief valves, Includes: Ref. 1 through 28, P/N 1346219C2 and P/N G109391

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, bucket and dipper sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, bucket and dipper sections

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G106410

SPACER

spool

1шт.

8

1994596C1

SPRING

centering, spool

1шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

spool end

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 11 through 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

13

1343708C1

PLUG

load check

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G109391

VALVE

ASSEMBLY circuit relief, bucket and dipper sections, used in production, order G109449 kit for service, Includes: Ref. 16 through 28

2шт.

Part of Kit P/N G109449

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Poppet (Replaces A28090 O-ring)

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 14, 15, 18, 19 and 28, plus additional O-rings not required for this application

1шт.

G109449

KIT

service for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve, Ref. 16 - 28, which is the same as G109391 except with a different pressure setting

1шт.
