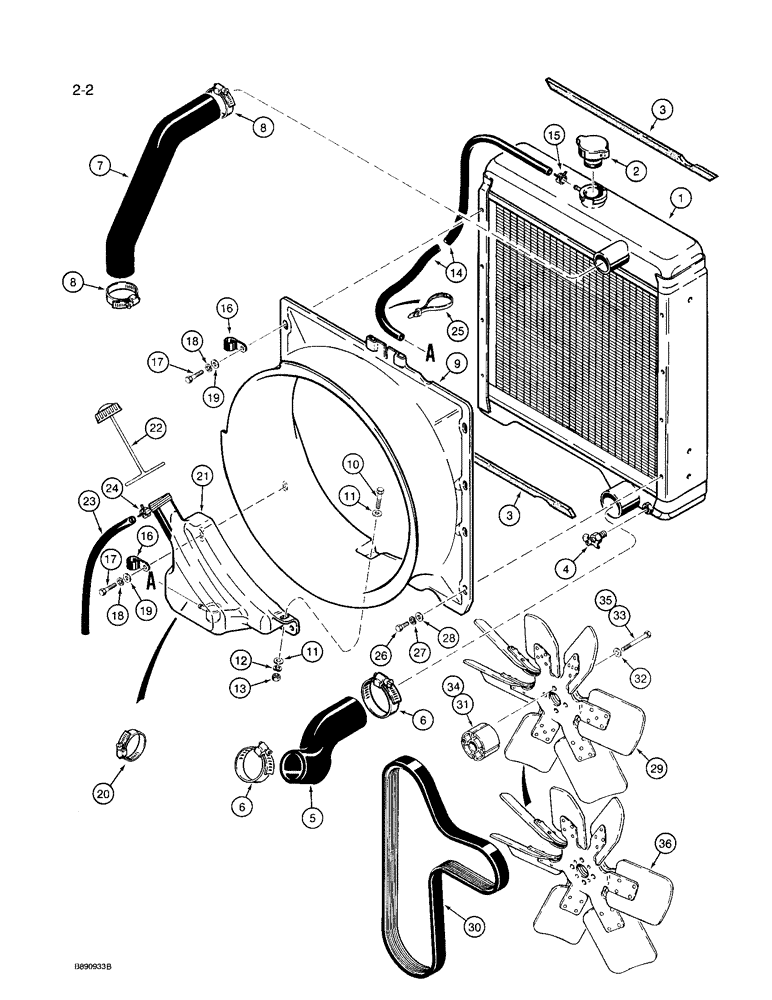

Запчасти Case 580SK (2-02) - RADIATOR,FAN &MOUNTING PARTS MODEL W/O TURBOCHARGED ENG;MODEL W/TURBOCHARGED ENG TRAC PIN JJG0173468 (02) - ENGINE

1

A172038

RADIATOR

engine coolant

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A173165

SEALING STRIP

fan shroud, upper and lower

2шт.

4

217-92

COCK

VALVE, 1/4" PT, drain

1шт.

5

D127775

RADIATOR HOSE,58.00 mm ID x 225.00 mm, SAE 20R4 Class C

58.00 mm ID x 225.00 mm, SAE 20R4 - Class C, Lower

1шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adj., 2-1/16" - 3" dia., lower radiator hose

2шт.

7

D127774

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 Class C

- Upper 45.00 mm ID x 265.00 mm, SAE 20R4 Class C

1шт.

8

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable, Upper radiator hose #32, 1.56/2.50 Type F Worm

2шт.

9

A173459

SHROUD

fan

1шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

825-1408

NUT,M8, Cl 8

1шт.

14

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir, Cut to required length from L126767 bulk hose 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose, retaining

1шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

hose, attaches to radiator fan shroud, oil cooler tubes

2шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, At radiator, lower #4, 0.25/0.62 Type M Worm

1шт.

21

A184370

RESERVOIR

coolant recovery bottle, Replaces A171805 reservoir

1шт.

22

1547924C1

CAP

screw-on, tethered, coolant recovery bottle, Replaces A184079

1шт.

23

A172262

HOSE,7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

- Coolant overflow 7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

1шт.

22

1547924C1

CAP

screw-on, tethered, coolant recovery bottle, Replaces A184079

1шт.

24

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose, retaining, at reservoir

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15", nylon

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

6шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

6шт.

29

A184467

FAN

suction, seven blade, models with or without air conditioning

1шт.

Check part number stamped on fan blade before ordering parts.

1шт.

30

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

31

A184545

SPACER

fan, 49.5 mm long, use with Ref. 33 bolt on models with air conditioning

1шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

33

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm, use with Ref. 31 spacer

4шт.

34

A190656

SPACER

fan, 26 mm long, use with Ref. 35 bolt on models without air conditioning

1шт.

35

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, Use with Ref. 34 spacer

4шт.

36

1998741C2

FAN

suction

1шт.

Check part number stamped on fan blade before ordering parts.

1шт.

Models without air conditioning, used with A184545 spacer, 496-21041 washer, and 814-10070 bolt Ref. 31-33, no longer used, when replacing 1998741C2 fan on models without air conditioning order A184467 fan, A190656 spacer, and 814-10045 bolt, Ref. 29, 34 and 35.

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
