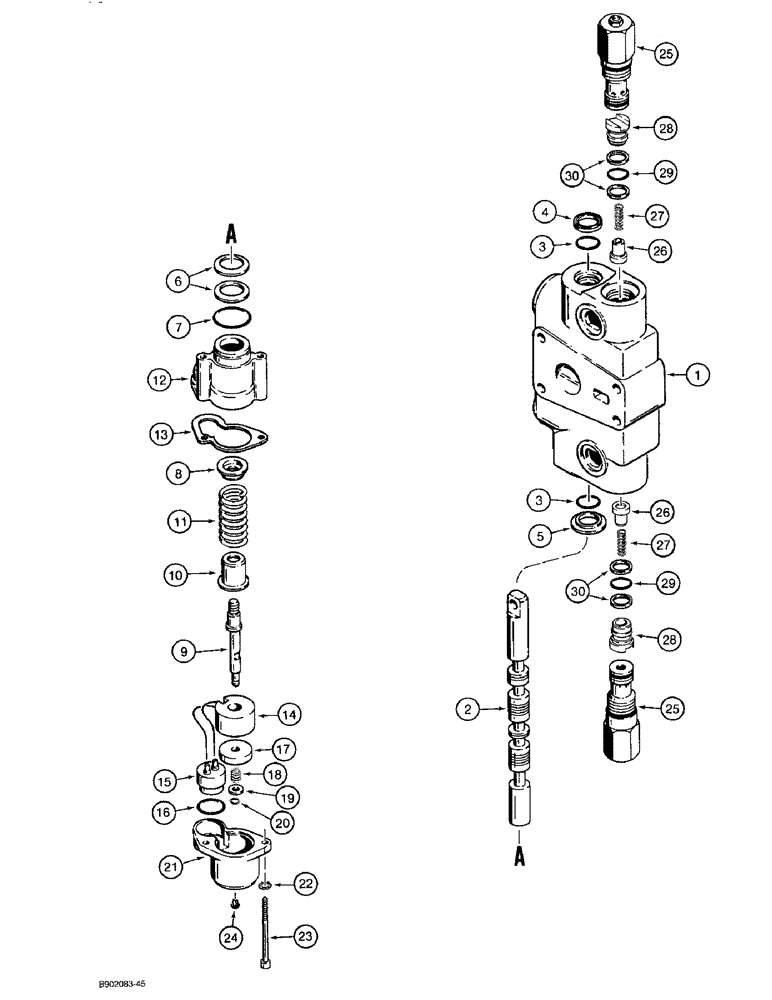

Запчасти Case 580SK (8-070) - LOADER CONTROL VALVE, BUCKET SECTION, WITH MAGNETIC DETENT AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS

1986594C1

VALVE

SECTION ASSEMBLY bucket, with magnetic detent and circuit relief valve, Includes: Ref. 1 through 30, P/N G110079 and P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

spool, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil, spool, replaces A32309

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G106452

SPRING WASHER

SPRING belleville, washer

2шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Retainer

1шт.

Part of seal kit P/N 1346105C1.

1шт.

8

G106442

SEAT

centering spring, upper

1шт.

9

G107445

SHAFT

magnetic detent

1шт.

10

G106441

SEAT

centering spring, lower

1шт.

11

1986611C1

SPRING

centering, spool

1шт.

12

G106423

HOUSING

magnetic detent

1шт.

13

G106443

GASKET

magnetic detent housing

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY magnetic detent, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COIL magnetic detent

1шт.

Coil resistance for return to dig coil is 19.5 ohms.

1шт.

15

G106450

COIL

CONNECTOR coil

1шт.

16

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Coil connector

1шт.

Part of seal kit P/N 1346105C1.

1шт.

17

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

18

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

19

A50778

WASHER

shaft

1шт.

20

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer (Replaces A7111) #25, Ext

1шт.

21

G106424

CAP

magnetic detent

1шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT hex socket, No. 10 NC x 2-3/4 inch

2шт.

24

G107780

VALVE, CHECK

VALVE check, magnetic detent

1шт.

25

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, one-piece cap, used in production, parts list Figure 8-078, order G109449 circuit relief valve kit for service, see Figure 8-078 for kit

2шт.

1346219C2

PACKAGE

VALVE ASSEMBLY load check, hollow poppet pin, Includes: Ref. 26 through 30

2шт.

26

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET, hollow poppet pin with orifice

1шт.

27

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

28

1343708C1

PLUG

load check

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

30

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 7, 16, 29 and 30, plus additional O-rings not required for this application

1шт.
