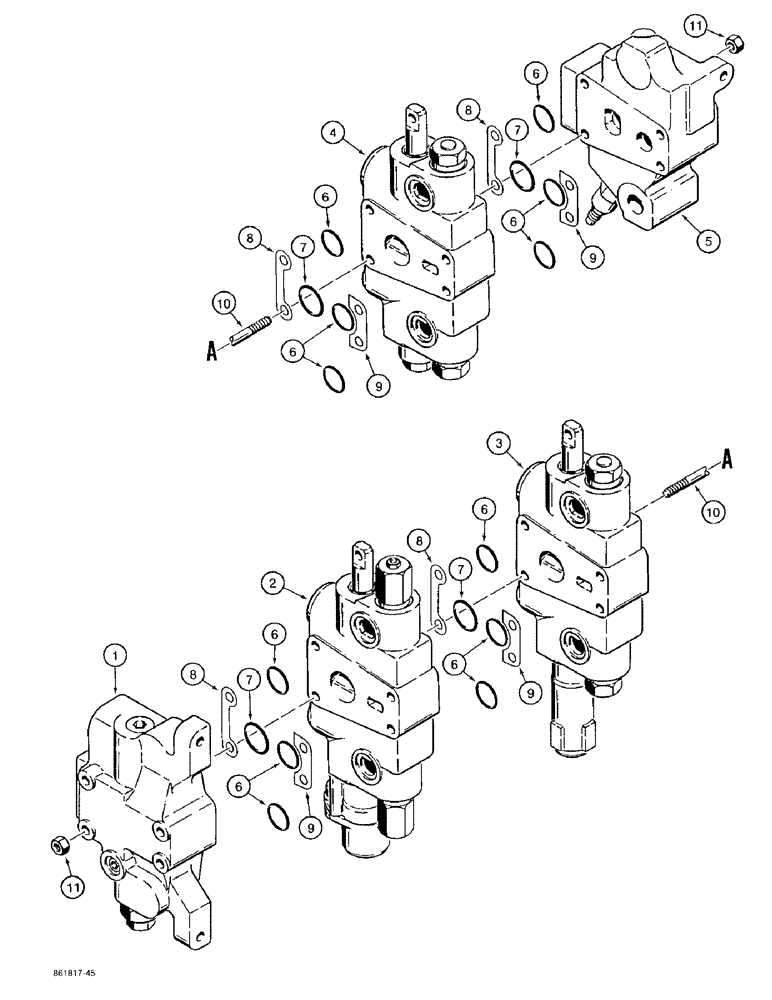

Запчасти Case 580SK (8-066) - LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS

1346393C1

VALVE

ASSEMBLY control, loader, three spool, Includes: Ref. 1 through 11

1шт.

1

1980434C1

VALVE

SECTION ASSEMBLY inlet, with steering relief valve, parts list Figure 8-068

1шт.

2

1986594C1

VALVE

SECTION ASSEMBLY bucket, with magnetic detent and circuit relief valve, parts list Figure 8-070

1шт.

3

1986591C1

VALVE

SECTION ASSEMBLY lift, with manual detent, parts list Figure 8-072

1шт.

4

1986593C1

VALVE

SECTION ASSEMBLY clam, all valves, parts list Figure 8-076

1шт.

5

1346396C1

VALVE

SECTION ASSEMBLY outlet, all valves, with main relief valve, parts list Figure 8-074

1шт.

6

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

12шт.

Part of seal kit P/N 1346108C1.

1шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

4шт.

Part of seal kit P/N 1346108C1.

1шт.

8

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

4шт.

9

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

4шт.

10

G108805

STUD

tie, 3/8 NC x 11-3/4 inch

4шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C1

SEAL KIT

KIT seal, Includes: Ref. 6 and 7, plus additional O-rings not required for this application

1шт.
